Dependable Assortment of Conical Strainers

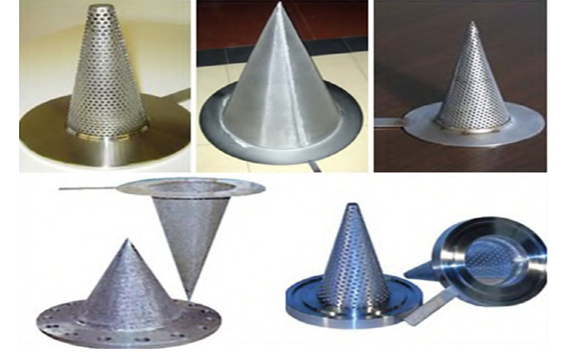

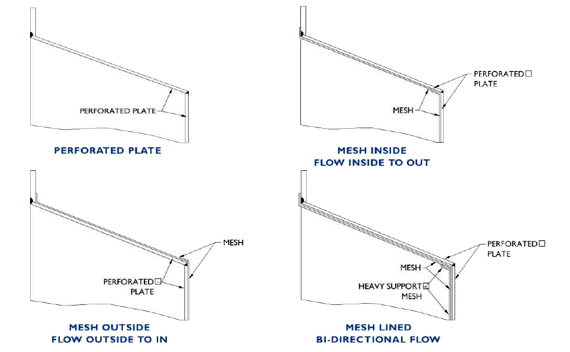

Strainers are used in Steam. water, oil or gas where protection from foreign matter in a pipeline is required. Perforated Sheets are rolled and formed into a conical shape with additional layers of wire mesh spot welded to the conical strainer. These strainers have the desired open area and are fabricated to withstand the required pressure drop. Additional reinforcements can be made on the strainers if required.
Size Range | Opening | Gauge Thickness |
3/4" - 8" (20mm - 200mm) | 0.125 in. (3.2mm) | 22 |
10" - 24" (250mm) - 600mm) | 0.125 in. (3.2mm) | 16 |
Size in. (mm) |

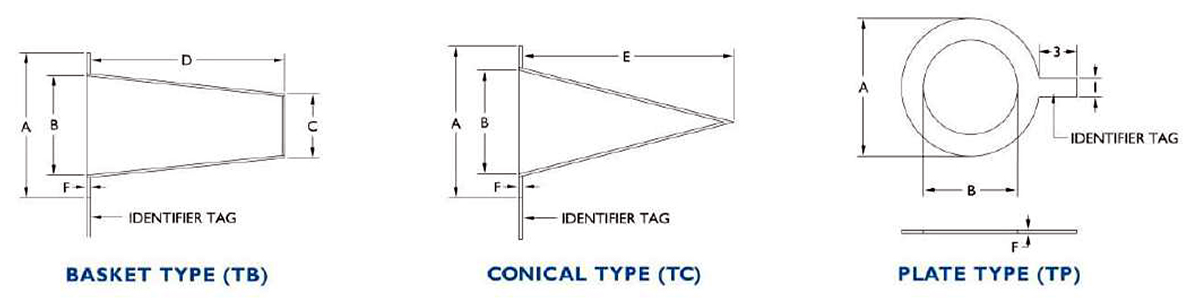

A(O.D.) |
B (I.D.) in (mm) |
C in. (mm) |
D (Basket Length) in. (mm) |
E (Cone Length) in (mm) |
F2 in (mm) |
Weight Lbs. (Kg.) |
|||||||||
150/300# | 600# | 900# | 1500# | 100% | 150% | 200% | 300% | 100% | 150% | 200% | 300% | |||||
3/4" 20 |
2.13 54 |
2.50 64 |
2.63 67 |
2.63 67 |
0.63 16 |
0.31 8 |
0.75 19 |
1.13 29 |
1.50 38 |
2.25 57 |
1.13 29 |
1.69 43 |
2.25 57 |
3.38 86 |
0.13 3 |
0.5 0.2 |
1" 25 |
2.50 64 |
2.75 70 |
3.00 76 |
3.00 76 |
0.75 19 |
0.38 10 |
1.13 29 |
1.69 43 |
2.25 57 |
3.38 86 |
1.63 41 |
2.50 64 |
3.31 84 |
5.00 127 |
0.13 3 |
0.5 0.2 |
1 1/2" 40 |
3.25 83 |
3.63 92 |
3.75 95 |
3.75 95 |
1.25 32 |
0.63 16 |
1.50 38 |
2.25 57 |
3.00 76 |
4.50 114 |
2.19 56 |
3.38 86 |
4.50 114 |
6.75 171 |
0.13 3 |
0.5 0.2 |
2" 50 |
4.00 102 |
4.25 108 |
5.50 140 |
5.50 140 |
1.75 44 |
0.88 22 |
2.00 |
3.00 76 |
4.00 102 |
6.00 152 |
3.00 76 |
4.50 114 |
6.00 152 |
9.13 |
0.13 3 |
0.5 0.2 |
2 1/2" 65 |
4.75 121 |
5.00 127 |
6.38 162 |
6.38 162 |
2.25 57 |
1.13 29 |
2.19 56 |
3.37 86 |
4.50 114 |
6.75 171 |
3.19 81 |
5.00 127 |
6.69 170 |
10.13 257 |
0.13 3 |
1 0.5 |
3" 80 |
5.25 133 |
5.75 146 |
6.50 165 |
6.75 171 |
2.75 70 |
1.38 35 |
2.75 70 |
4.25 1.08 |
5.69 145 |
8.50 216 |
4.00 102 |
6.25 159 |
8.50 216 |
12.75 324 |
0.13 3 |
1 0.5 |
4" 100 |
6.75 171 |
7.50 191 |
8.00 203 |
8.13 206 |
3.75 95 |
1.88 48 |
3.50 89 |
5.32 13.5 |
7.19 183 |
11.00 279 |
5.13 130 |
7.88 200 |
10.63 270 |
17.00 432 |
0.13 3 |
2 0.9 |
5" 125 |
7.63 194 |
9.38 238 |
9.63 244 |
9.88 251 |
4.63 117 |
2.31 59 |
4.50 114 |
6.75 171 |
9.13 232 |
14.00 356 |
6.50 165 |
10.13 257 |
14.00 356 |
21.00 533 |
0.13 3 |
2 0.9 |
6" 150 |
8.63 219 |
10.37 263 |
11.25 286 |
11.00 279 |
5.38 137 |
2.69 68 |
5.50 140 |
8.50 216 |
11.75 289 |
17.00 432 |
8.13 207 |
13.00 330 |
17.00 432 |
26.00 660 |
0.13 3 |
3 1.4 |
8" 200 |
10.87 276 |
12.50 318 |
14.00 356 |
13.75 349 |
7.38 187 |
3.69 94 |
7.00 178 |
10.69 272 |
15.00 381 |
22.00 559 |
10.19 259 |
16.00 406 |
22.00 559 |
33.00 838 |
0.13 3 |
5 2.3 |
10" 250 |
13.25 337 |
15.63 397 |
17.00 432 |
17.00 432 |
9.38 238 |
4.69 119 |
8.63 219 |
14.00 356 |
18.00 457 |
27.00 286 |
13.00 330 |
20.00 508 |
27.00 686 |
40.00 1016 |
0.13 3 |
7 3.2 |
12" 300 |
16.00 406 |
17.87 454 |
19.50 495 |
20.37 517 |
11.00 279 |
5.50 140 |
10.50 267 |
17.00 432 |
22.00 559 |
33.00 838 |
16.00 406 |
24.00 610 |
33.00 838 |
49.00 1245 |
0.13 3 |
11 5.0 |
14" 350 |
17.37 441 |
19.00 483 |
20.37 517 |
22.62 575 |
12.25 311 |
6.13 156 |
11.50 292 |
18.00 457 |
24.00 610 |
36.00 914 |
17.00 432 |
27.00 686 |
36.00 914 |
54.00 1372 |
0.13 3 |
12 5.4 |
16" 400 |
20.12 511 |
21.87 511 |
22.50 572 |
25.13 638 |
14.00 356 |
7.00 178 |
14.00 356 |
21.00 533 |
28.00 711 |
42.00 1067 |
20.00 508 |
31.00 787 |
41.00 1041 |
62.00 1575 |
0.13 3 |
16 7.3 |
18" 450 |
21.25 540 |
23.75 603 |
25.00 635 |
27.63 702 |
15.75 400 |
7.88 2000 |
16.00 406 |
24.00 610 |
32.00 813 |
47.00 1194 |
23.00 584 |
35.00 889 |
47.00 1194 |
71.00 1803 |
0.13 3 |
20 9.1 |
20" 500 |
23.50 597 |
26.62 676 |
27.38 695 |
29.63 753 |
17.50 445 |
8.75 222 |
17.00 432 |
27.00 686 |
35.00 889 |
53.00 1346 |
25.00 635 |
39.00 991 |
53.00 1346 |
79.00 2007 |
0.13 3 |
26 11.8 |
24" 600 |
27.37 708 |
30.87 784 |
32.88 835 |
35.38 899 |
21.25 540 |
10.63 270 |
21.00 533 |
32.00 813 |
42.00 1069 |
64.00 1626 |
30.00 762 |
47.00 1194 |
63.00 1600 |
95.00 2413 |
0.13 3 |
30 13.6 |
