Dependable Assortment of Tyco Fire & Smoke Alarm System

We present Tyco Zettler Fire Alarm which offers a wide range of fire detection and alarm products, including addressable and conventional systems, system parts and accessories, and detection support products and services. We also provide customized fire detection solutions for specific industries.

Gate Valves

"Gulf Oil & Gas International as Dealer representing Thorn Security/Zettler (Tyco Fire & Security)

Tyco Fire & Safety

Addressable Detectors, Bases & Ancillaries

Detectors

855PH/ 835PH Photo+Heat

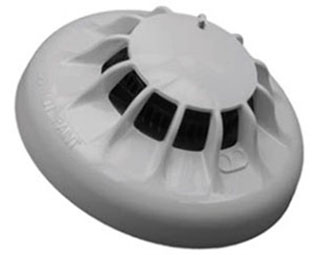

855P/835P Photo/Optical

More benign environments where any potential fire will be slow burning can be protected using the optical detector. A choice of sensitivities and modes gives this detector a broad range of applications.Read More

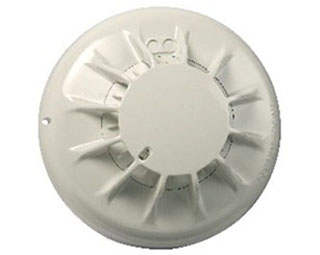

855H/835H Heat

To compliment the range the heat sensor can operate in fixed temperature and rate-of-rise modes with a number of approved sensitivities. Most often used in areas where high levels of dust are present or where the environment precludes the use of smoke detectors.Read More

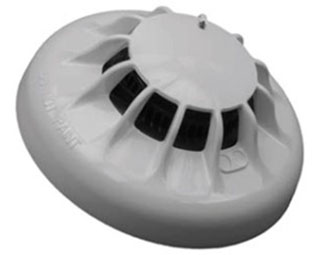

855PC/835PC 3oTec Triple Sensor

The 3oTec detector provides the ultimate in detector performance and false alarm rejection. It is a multi sensor that monitors smoke, heat and CO levels simultaneously.Read More

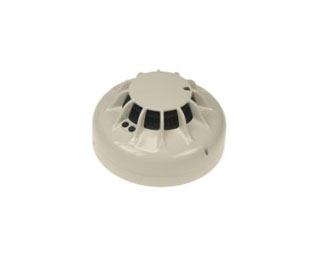

850PH and 830PH Gen-6 Photo Heat Detectors

With the ability to detect a wide range of fires from flaming to smouldering types, the combined optical and heat multi-sensor detector is the preferred choice for a range of applications including light industrial, retail and office environments. It operates in a number of approved modes and sensitivities that can be dynamically selected to suit different environmental conditions.

Features:

Advanced multi-sensor designs
Built-in line isolator (850PH Only)
Quick and easy to install
Extended drift compensation
Two way infra-red communication to the 850EMT Engineering Management Tool
Fire, isolate and fault LED indications
Any Pantone colour available with CPD approval
Comprehensive range of bases and base accessories

850P and 830P Gen-6 Photo Detectors

Features:

Advanced multi-sensor designs
Built-in line isolator (851P Only)
Quick and easy to install
Extended drift compensation
Two way infra-red communication to the 850EMT Engineering Management Tool
Fire, isolate and fault LED indications
Any Pantone colour available with CPD approval
Comprehensive range of bases and base accessories

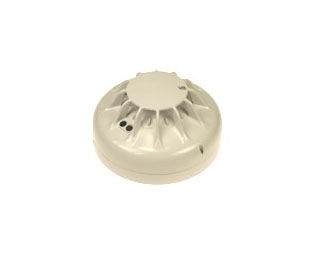

850H and 830H Gen-6 Heat Detectors

Features:

Advanced multi-sensor designs
Built-in line isolator (850H Only)
Quick and easy to install
Extended drift compensation
Two way infra-red communication to the 850EMT Engineering Management Tool
Fire, isolate and fault LED indications
Any Pantone colour available with CPD approval
Comprehensive range of bases and base accessories

850PC and 830PC Gen-6 3oTec Triple Sensor Detectors

The 3oTec detector provides the ultimate in detector performance and false alarm rejection. It is a multi sensor that monitors smoke, heat and CO levels simultaneously.

For life protection and when the environmental conditions are challenging, the 3oTec detector provides the ultimate in detector performance and false alarm rejection. It is a multi sensor that monitors smoke, heat and CO levels in concert to accurately determine the presence of fire. Applications include industrial, retail, transport hubs, and healthcare. Its false alarm rejection properties make it the ideal choice for hotel bedrooms where steam from bathrooms is a common source of false alarms.

Features:

Advanced multi-sensor designs
Built-in line isolator (850 Only)
Quick and easy to install
Extended drift compensation
Two way infra-red communication to the 850EMT Engineering Management Tool
Fire, isolate and fault LED indications
Any Pantone colour available with CPD approval
Comprehensive range of bases and base accessories

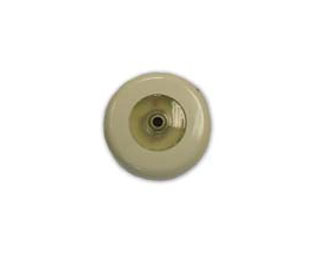

801F Flame Detectors

The 801F point type flame detector is part of the MZX Technology® range of digital addressable fire detectors.

The 801F is a full featured solar blind flame detector for indoor use and boasts a high degree of false alarm immunity.

The 801F is designed for direct connection to the MZX digital loop, employing the same detector base or functional base as other 800 series fire detectors.

Features:

Solar Blind for false alarm free operation
Fast response to flame
Detect a 0.1m² fire at a range of 20m
Automatic health check feature
Discrete ultra low profile design
Fits a standard MZX detector base or functional base
Integral alarm LED with 360º angle of view

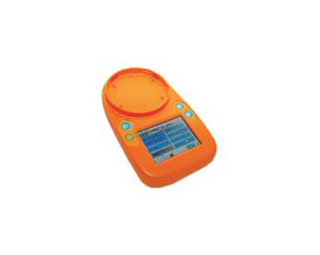

850EMT Engineering Management Tool

The 850EMT is a commissioning tool that communicates with 850 and 830 series fire devices via a two way infrared link. It is designed to speed up and simplify installation and commissioning, reduce the possibility of engineering error and improve health and safety by removing the need for working at height.Read More

Digital Enrollment

ZETTLER Digital Enrollment mobile application is a utility for engineers commissioning European panels on building sites.

This mobile application enables them to complete configuration of devices including addressing. It can be done by associating devices in a project with their physical location as determined by scanning a QR code on the Zettler devices. Using this mobile app user will export and import configuration files and send them to the existing PC tool, MZX Consys Version 31.1 onwards.

Using this mobile app user will export and import configuration files and send them to the existing PC tool, MZX Consys Version 31.1 onwards.

Features in version 1.0.0:

Ability to create sites with physical or logical addressing and/or zones
Ability to edit, view, delete the sites.
Ability to Import a site created via PC configuration file
Ability to create, edit, view, delete the panels (max 99 panels per site).
Ability to view and edit zone labels
Ability to create and view high & shared powered loops (max 16 high powered or 32 shared powered loops per panel)
Ability to scan QR code associated with device.
Ability to create device using scanned QR code information
Ability to set Labels, number of channels, addresses, and zones to device
Ability to export site, panel, loop, device details and zone labels to a file that can be imported in MZX Consys desktop application

The network is totally flexible and enables from 2 to 99 fire controllers to be linked together, providing a system capability of up to 23,760 fire zones with 99,000 detection addresses, and over 49,000 digital I/O points.

The MZX Technology Network communications network comprises a collection of network interface modules and peripheral equipment that together form a fault resistant, and flexible peer-to-peer network for the MZX Digital addressable fire systems controllers.

With MZX Technology Network, each MZX Fire Controller on the network permits an operator to interrogate and control any other MZX Fire Controller on the network For extended interrogation and control, MZX Technology Network allows for up to a maximum of five nodes on the network to be configured either as Master operating stations or Graphical user interfaces.

Master operating stations use the standard MZX Fire Controller hardware. In this application, the controller changes its personality; and enables additional information from each controller on the network to be displayed.

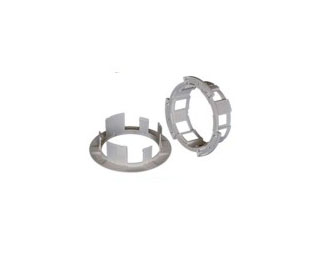

Detector Bases & Accessories

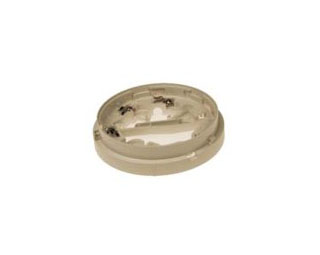

4B 4 Inch Detector Base

This base is for use with 830 Series detectors when short circuit isolation is not required.Read More

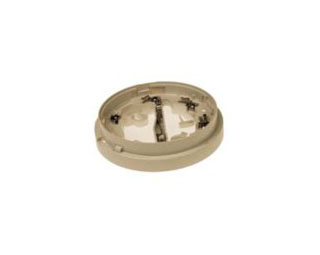

4B-C 4 Inch Continuity Base

This base is for use with 850 Series detectors.

The 4B-C base provides continuity when the detector is removed.Read More

4B-I 4 Inch Isolator Base

This base is for use with 830 Series detectors to provide local short circuit isolation.Read More

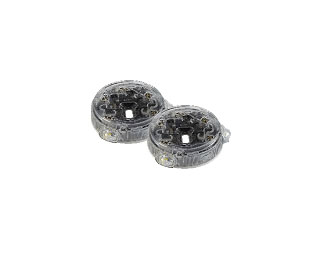

Addressable Sounder VAD Bases

The P80AVB and P81AVB are addressable sounder bases with a Visual Alarm Device (VAD) specifically for use with the ZETTLER addressable detectors. The bases are available as fire alarm sounders with Visual Alarm Device in two power outputs, standard and high. The high power option provides more coverage for the VAD compared to standard. Each has an address so they can be monitored and controlled from the fire alarm control panel, which is independent of the detector fitted to the base. The power and communications for the sounder, VAD and detector are provided by the two-wire digital loop. This helps to reduce installation costs as no additional wiring is required.

	P80AVB	P81AVB
Coverage volume code	C-3-8	C-3-15
Devices per loop	Up to 86 (*)	Up to 54 (*)
Flash rate	0.5 / 1Hz	0.5 / 1Hz
Dimensions (Diameter x H) mm	135x45	135x45
Sound output @ 1m	Up to 90dBA	Up to 90dBA
Body colour	Clear	Clear
Flash Colour	White	White
IP Code	IP21C	IP21C
Approvals	EN54-3, 23, 17	EN54-3, 23, 17

(*) Full intensity VAD with sounder at high volume, 1 A loop.

Loop quantities are for guidance only and should be verified with the loop calculator.

Features:

A compact and discrete solution
VAD approved to EN54-23 with two ranges, standard power and high power available
High power option provides a larger VAD coverage volume compared to standard
Reflective Sound Monitoring (RSM)
Reflective Light Monitoring (RLM)
Automatic self-test
Shorter light pulse for faster response
Optimise the system design for lowest power requirements and lowest cost installation
Triple light source
One point of installation for detector, sounder and visual indicator with no additional wiring
Independent addressable control of the sounder and beacon
Built-in line isolator
Select the tone, volume and flash rate using panel configuration software
15 selectable tones. Allows users to select the tone with which they are most familiar.
Realistic conventional bell tone
2 selectable volumes
2 selectable flash rates
Different tones can be used for fire alarm and class change
VADs and sounders are synchronised over the entire loop
A locking pin supplied with the base which prevents the unauthorized removal of the detector
Provides an EN54-23 approved upgrade path for legacy systems

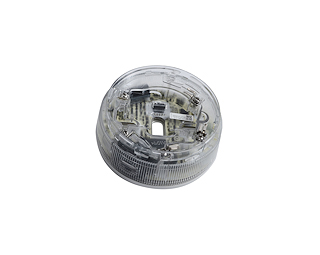

VAD Open Class Sounder Beacon Base

The P82AVB is an addressable open class VAD sounder beacon specifically for use with ZETTLER addressable detectors. The base incorporates a fire alarm sounder, carrying its own address which can be monitored and controlled from the fire alarm control panel independently of the detector. Both power and communications for the sounder and detector are provided by the MX digital loop.

	P82AVB
Devices per loop	Up to 149 (*)
Flash rate	0.5 / 1Hz
Dimensions (Diameter x H) mm	114x45
Sound output @ 1m	Up to 90dBA
Body colour	Clear
Flash Colour	White
IP Code	IP21C
Approvals	EN54-3, 23, 17

(*) Beacon at 0.5 Hz with sounder at high volume, 1 A loop.

Loop quantities are for guidance only and should be verified with the loop calculator.

Features:

A compact and discrete solution
One point of installation for detector, sounder and visual indicator
Reflective Sound Monitoring (RSM)
Light is electronically monitored by the control panel
Automatic self-test
Independent addressable control of the sounder and beacon
Built-in line isolator
Select the tone, volume and flash rate
15 selectable tones
Realistic conventional bell tone
4 selectable volumes
2 selectable flash rates
VADs and sounders are synchronised over the entire loop
Replace legacy LPBS3000

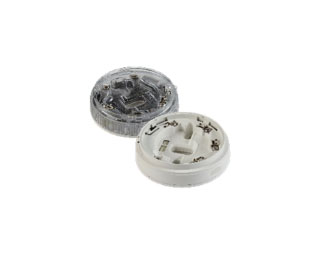

Addressable Sounder Base and Addressable Sounder VID Base

The P80SB is an addressable sounder base specifically for use with the ZETTLER addressable detectors. The base incorporates a fire alarm sounder that carries its own address so it can be monitored and controlled from the fire alarm control panel, which is independent of the detector fitted to the base. Both power and communications for the sounder and detector are provided by the two-wire digital loop. This helps to reduce installation costs as no additional wiring is required. Additionally, the P80AIB houses an addressable LED beacon to provide a visual indicator otherwise known as a VID.

	P80SB	P80AIB
Devices per loop	Up to 231 (*)	Up to 149 (**)
Flash rate	N/A	0.5 / 1Hz
Dimensions (Diameter x H) mm	114x45	114x45
Sound output @ 1m	Up to 90dBA	Up to 90dBA
Body colour	White	Clear
Flash Colour	N/A	Red
IP Code	IP21C	IP21C
Approvals	EN54-3, 17	EN54-3, 17

(*) Sounder at high volume, 1 A loop.

(**) Beacon at 0.5 Hz with sounder at high volume, 1 A loop.

Loop quantities are for guidance only and should be verified with the loop calculator.

Features:

A compact and discrete solution
One point of installation for detector, sounder and visual indicator with no additional wiring
Reflective Sound Monitoring (RSM)
Light is electronically monitored by the control panel
Automatic self-test
Independent addressable control of the sounder and beacon
Built-in line isolator
Select the tone, volume and flash rate using panel configuration software
15 selectable tones. Allows users to select the tone with which they are most familiar
Realistic conventional bell tone
4 selectable volumes
2 selectable flash rates
Different tones can be used for fire alarm and class change
VIDs and sounders are synchronised over the entire loop
A locking pin supplied with the base which prevents the unauthorized removal of the detector
Replace legacy LPSB3000 and LPAV3000

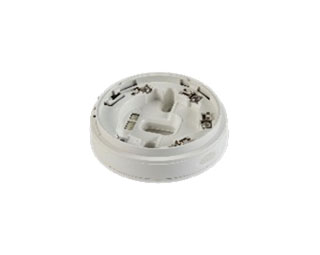

Detector Activated Sounder Base

The 80DSB is a detector base specifically for use with the ZETTLER addressable detectors. The base incorporates a fire alarm sounder that is activated directly by the detector.

	P80DSB
Devices per loop	Up to 250 (*)
Dimensions (Diameter x H) mm	114x45
Sound output @ 1m	Up to 90dBA
Body colour	White
IP Code	IP21C
Approvals	EN54-3

(*) Sounder at high volume, 1 A loop.

Loop quantities are for guidance only and should be verified with the loop calculator.

Features:

A compact and discrete solution
One point of installation for detector and sounder with no additional wiring
Low power with up to 250 sounders on a single loop provides uncompromised system design solutions
Simple to select the tone and volume using switches. No special training or tools needed.
9 selectable tones
4 selectable volumes
A locking pin supplied with the base which prevents the unauthorized removal of the detector
Replaces legacy 802SB and it is compatible with 800 series detectors. Can be used for service and repair or as part of a planned upgrade path

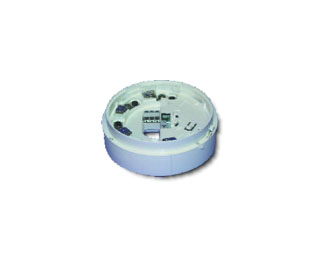

801RB Functional Relay Base

The 801RB provides dual relay contacts for signalling external devices on MZX addressable systems. A very low operating current even when the relay is energised enables the relay base to be used without any additional power.

The dual contacts are under the control of a programmable output, through the powerful cause and effect software.

Features:

Dual pole 24V DC relay contacts (60VA)
Very low power consumption ( < 20µA except startup)

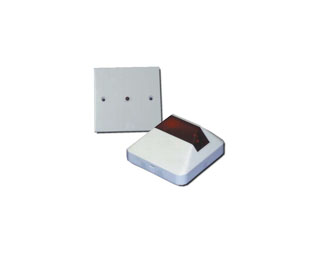

Remote Detector Indicators

801RIL - Remote Indication LED

All detector bases have the ability to drive a remote LED in the event that the installed position of the detector is not easily visible. The 801RIL is primarily designed for LPCB influenced markets but is compatible with all 800 Series detectors.

Features:

Single gang mounting
High intensity red LED

801HL - Indication Lamp

The 801HL remote indicator lamp provides a larger indicator for use in place of the RIL when longer distances are involved or in VdS influenced markets. Typically used to indicate the source of an alarm in buildings with long corridors e.g. Hotels, hospitals, apartments.

Duct Probe Units

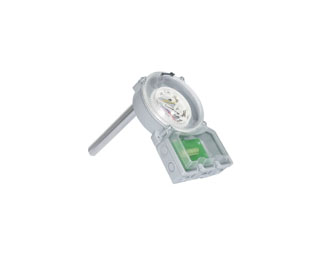

The DPK6 duct probe units Smoke detectors are not normally mounted directly inside ducts because the airflow only allows the detector to sample air from a small section of the duct and such detectors would rapidly become dirty. Instead, ducting is protected by the use of probe units which gather air from a cross section of the duct and pass it through a smoke detector head.

For most applications, smoke or combustion products are likely to have travelled some distance ageing the smoke prior to reaching the probe unit. It is therefore normally recommended that an optical smoke detector be fitted, and this is often a requirement of Building regulations. The DPK6 duct probe units use Generation6 850PH and 830PH Multi Sensor Smoke Detectors.

DPK6 Duct Probe Units have been developed to detect smoke in ventilation ducts. They offer significant benefits in terms of performance and installation. The system comprises only one single duct probe tube which improves efficiency and reduces installation time.

The DPK6 duct smoke detector housing is designed to comply with the stringent demands new European standard prEN 54-27. The system fulfils all the requirements for safe fire detection with airflow speeds from 0,5 m/s to 20 m/s.

Features:

DPK6 for use with Generation6 multi-sensor detectors 850PH and 830PH with built-in 4B-C 4” Continuity Base
Designed to comply with prEN 54-27
One-pipe air sampling system
Patented venturi pipe and duct housing
Test hole on cover
Simple installation
Simple service and maintenance

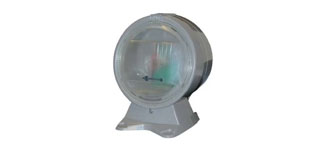

DPK4 and DPK4I Duct Probe Units

The DPK4/DPK4I duct probe units have been developed to detect smoke in ventilation ducts and combine a smoke detector and an adapter system where both duct probe tube and housing are specially designed for optimum airflow through the smoke detector. The system detects smoke in incoming air, outgoing air and circulation air ducts of ventilation and conditioning systems. The duct probes are especially recommended for installations in air ducts with an air flow of 1 m/s until 20 m/s.

Particular features of the DPK4 and DPK4I

With Built-in MX/ZX-Detector base
- DPK4 - with built-in MX/ZX detector base 5” – 5B
- DPK4I - with built-in MX/ZX detector base 5” – 5BI
Is suitable for addressable and conventional systems
Suitable for air speeds 1 m/s until 20 m/s
Can be used in combination with e.g. 801Ph , 813P, 601P or 601PH
One-pipe air sampling system
Range of aluminium probe tube available for air ducts up to 2700 mm
Transparent lid allows detector to be seen
Test hole on cover
Sensitive flow indicator
Simple service and maintenance
Installer-friendly connection of cables
Easy installation of duct probe tubes

For an easy and fast installation of the DPK4 an MX/ZX-Detector base is already built-in. The built-in detector base reduces the assembly time. According to customer requirements you can choose from two variants; the DPK4 – Duct Probe with built-in MX/ZX detector base 5” – 5B or the DPK4I – Duct Probe with built-in MX/ZX detector base 5” with isolator – 5BI.

With the easily accessible terminals on the back side of the duct probe units a fast and uncomplicated installation is guaranteed.

Another big advantage offers the one-pipe air sampling system. Unlike the MP69 the new duct probe units use only one pipe for diverting the air though the detector and back. The need of only one pipe per tube saves time during installation and so reduces installation costs.

A red plastic bar is fixed inside the housing of the DPK4. The bar provides a simple confirmation that there is no leakage and that the air flow from the air duct is in fact passing through the housing and the detection of the air duct takes place. The bar is blown up by the passing air.

Another advantage offers the test hole on the cover. Herewith the function of the detector can easily be proofed by blowing-in the test gas.

Accessories

To adapt the duct probe perfectly to customer requirements and to offer a well-priced product we offer 3 lengths of the duct probe tubes. The tube is made of aluminium and can easily be shortened to suit the diameter of the air duct.

For mounting the DPK4 on isolated or circular air ducts please use the DPKM – Mounting bracket.

DPK600 - Duct Probe Tube 600 mm
DPK1500 - Duct Probe Tube 1500 mm
DPK2800 - Duct Probe Tube 2800 mm
DPKM - Duct Probe Mounting bracket

Detector Base Accessories

A range of detector base accessories has been designed for use with the Generation 6 detector base range to cut installation time, enhance the installed appearance and mechanically protect the installation.

Detector base accessories include:

Ceiling Tile Adaptor CTA

The CTA is used to fix detectors to suspended ceilings and allows the detector to be commissioned and tested before the ceiling is fitted. It can cut the total installation time by 30%.

CTA Adapter Plate

When beacon bases or sounder bases are fixed to the CTA, the adaptor plate is required to provide standard electrical box fixings.

Euro Mount

For surface cable and mini trunking installations, the Euro Adaptor provides a shallow back-box onto which the detector base is fitted.

Deckhead Mount

The deckhead mount provides an IP55 seal between the mount and the detector base to provide superior environmental protection.

Base 6" Adaptor

For use with U.S. style 6” electrical back boxes or can be fixed directly to a ceiling and used to conceal marks left when older, large diameter detectors are replaced.

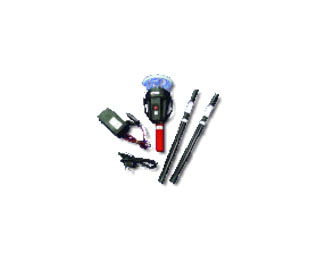

Detector Test & Commissioning Equipment

We offer a wide range of test equipment for use with the MZX range of detectors.

Equipment available includes telescopic extension poles, cordless heat detector tester kits, pole sets for TYCO detector changers and testers, smoke detector aerosol tester, CO detector field test kit. Read More

Our Focus
Oilfield|Drilling|Refinery|Petrochemical|Power|Process|Commercial

We offer both standard and specialized solutions for Tyco Fire & Smoke Detectors , Serving to Oil & Gas,Refinery, Petrochemical,Shipbuilding & Marine, Ports, Ship Management, Nuclear Plants, Steam & Power Generation, Refrigeration & Air Conditioning,Engineering, Industrial,Water Treatment Plant, Paper Pulp Industry, Sugar, Fertilizer, Food Processing Plants, Chemical,Pharmaceutical, Engineering Works, Fabricators, Construction, Mining, Commercial Buildings Ie Hospitals, Schools,Shopping Malls,Apartments. We are serving Worldwide Clients based in Dubai, United Arab Emirates UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Iraq, Kurdistan, Yemen, Lebanon, Jordan, Sudan, Egypt, Nigeria, Algeria, Angola, Kenya, Tanzania, South Africa, Morocco, Libya, Kazakhstan, Armenia, Azerbaijan, Turkmenistan, Tunisia,Ghana, Tanzania, Uzbekistan, Senegal, Togo, Djibouti, Malawi, Republic of Congo, DRC, Gabon, Equatorial Guinea, Chad Mauritania,Niger, Côte d'Ivoire Ivory Coast,Cameroon,Uganda, Namibia, Ethiopia, Eritrea, Malta,Bostwana,Mauritius,Seychelles,Rwanda,Madagascar. We are Looking forward to fulfilling your expectations with the best of our product range. Our Excellent Logistics setup supports shipping of goods to major Cities Such As Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Doha, Muscat, Kuwait, Riyadh, Jeddah, Dhahran, Jubail And Yanbu, Baghdad, Basra, Mosul, Erbil, Sulaymaniyah, Manama, Beirut, Amman, Sanaa, Aden, Mukalla, Khartoum, Abuja, Algiers, Luanda, Nairobi, Dar es salaam, cape town, Durban, Johannesburg, Rabat, Tripoli, Benghazi, Misrata, Ashgabat, Almaty, Aktau, Yerevan, Baku, Accra, Tema, Lagos, Port Harcourt, Port Sudan, Tunis, Port of Mombasa, Dodoma, Dar Es Salaam, Aktobe, Tashkent, Balkanabat,Turkmenbashi, Kirku, Dakar, Lomé, Djibouti, Lilongwe, Brazzaville, Kinshasa, Libreville, Malabo, N'Djamena, Nouakchott, Niamey, Yamoussoukro, Yaoundé, Kampala, Windhoek,Addis Ababa, Asmara, Valletta,Gaborone,Port Louis,Victoria,Kigali,Antananarivo. We will be pleased to serve your requirements with the best of our products.
