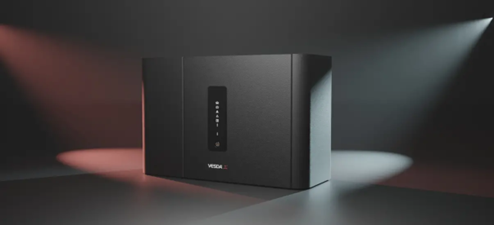

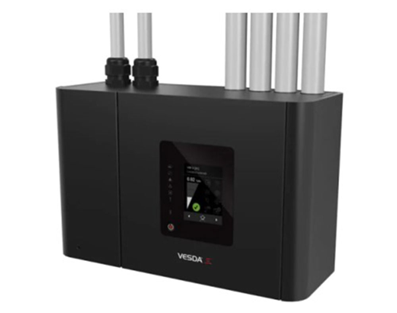

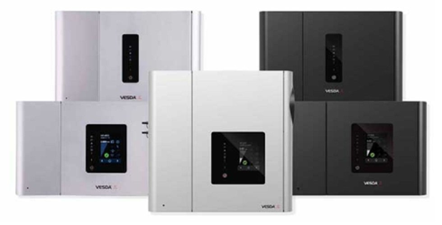

VESDA-E VEP Aspirating Smoke Detector (Mainstream ASD)
The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to a wide range of applications. Built on the Flair detection technology and years of application experience, VEP detectors achieve consistent performance over their lifetime via absolute calibration. In addition,the VEP delivers a range of revolutionary features that provide user value.Flair Detection Technology is the revolutionary detection chamber that forms the core of the VESDA-E VEP. VESDA-E VEP is equipped with a powerful aspirator that enables use of a total of 130m (427ft) of sampling pipe in the one pipe model and 560m (1,837ft) of pipe in the four pipe model. VESDA-E VEP is compatible with existing VESDA installations. The detector occupies the same mounting footprint, pipe, conduit and electrical connector positioning as VESDA VLP.
- Features
- Suitable for Class 1 Division 2 applications - Groups A, B, C & D
- One and four pipe models for different applications
- Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms
- Short wavelength laser-based detection:
- High sensitivity from small particle light scattering
- No drift compensation required since focused light directed at target gives low backgrounds
- High stability with temperature and time
- Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance
- Four alarm levels and a wide sensitivity range deliver optimum protection for the widest range of applications
- Intuitive LCD icon display provides instant status information for immediate response
- Flow fault thresholds per port accommodate varying airflow conditions
- Smart on-board filter retains dust count and remaining filter life for predictable maintenance
- Extensive event log (20,000 events) for event analysis and system diagnostics
- AutoLearn™ smoke and flow for reliable and rapid commissioning
- Referencing to accommodate external environmental conditions to minimise nuisance alarms
- Backward compatible with VLP and VESDAnet
- Remote monitoring with iVESDA for system review and proactive maintenance
| One Pipe VEP | Four Pipe VEP | ||||||||||||||
| Supply Voltage | 18-30 VDC (24 V Nominal) | ||||||||||||||
| Power Consumption @ 24VDC |
VEP-A00-1P | VEP-A00-P | VEP-A10-P | ||||||||||||
| Aspirator Setting | Fixed | 1 | 5 | 1 | 5 | ||||||||||
| Power (Quiescent) | 8.8 W | 7.0 W | 8.8 W | 8.2 W | 10.0 W | ||||||||||
| Power (In Alarm) | 9.6 W | 7.8 W | 9.6 W | 10.4 W | 11.6 W | ||||||||||
| Dimensions (WHD) | 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in) | ||||||||||||||
| Weight | 4.4 kg (9.7 lbs) | 4.4 kg (9.7 lbs) | 4.5 kg (9.9 lbs) | ||||||||||||
| Operating Conditions | Ambient: 0°C to 39°C (32°F to 102°F) Sampled Air: -20°C to 60°C (-4°F to 140°F) Tested to: -20°C to 55°C (-4°F to 131°F) UL: -20°C to 50°C (-4°F to 122°F) Humidity: 5% to 95% RH, non-condensing |
||||||||||||||
| Area Coverage | 1,000 m2 (10,760 sq. ft) | 2,000 m2 (21,520 sq. ft) | |||||||||||||
| Min. airflow per pipe | 15 l/m | ||||||||||||||
| Pipe Length (Linear) | 100 m (328 ft) | 280 m (919 ft) | |||||||||||||
| Area Coverage | 130 m (427 ft) | 560 m (1,837 ft) | |||||||||||||
| Pipe lengths depending on number of pipes in use |
|
||||||||||||||
| StaX | PSU | 40/80/100 | |||||||||||||
| No. of holes (A/B/C) | 30/40/45 | 40/80/100 | |||||||||||||
| Computer design tool | ASPIRE | ||||||||||||||
| Pipe | Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) Exhaust: External diameter 25mm or 1.05 in (3/4 in IPS) via adaptor |
||||||||||||||
| Relays | 7 programmable relays (latch or non-latch states) Contacts rated 2 A @ 30 VDC (Resistive) |
||||||||||||||
| IP rating | IP40 | ||||||||||||||
| Cable access | 4 x 26 mm (1.02 in) cable entries | ||||||||||||||
| Cable termination | Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) | ||||||||||||||
| Dynamic Range | 0.0000%/m to 32%/m (0.0000%/ft to 10%/ft) | ||||||||||||||
| Sensitivity Range | 0.001% - 20.0% obs/m (0.0003 to 6.25% obs/ft) | ||||||||||||||
| Threshold setting range | Alert: 0.001%-2.0% obs/m (0.0003%-0.625% obs/ft) Action: 0.001%-2.0% obs/m (0.0003%-0.625% obs/ft) Fire1: 0.001%-2.0% obs/m (0.0003%-0.625% obs/ft) Fire2: 0.001%-20.0% obs/m (0.0003%-6.25% obs/ft) |
||||||||||||||
| Software features | Event log: Up to 20,000 events Smoke level, user actions, alarms and faults with time and date stamp AutoLearn: Detector learns Alarm Thresholds and Flow Fault thresholds by monitoring the environment. |
||||||||||||||
