Pressure Gauge

Pressure Gauge

Pressure Gauge - Standard

PI-P101

PI Controls Europe - All SS pressure gauge, >100 mm diameter

Pressure Gauge - Standard

  • Dial size: DN100 / DN125 / DN150 / DN250
  • Range: -1...0...1,600 bar
  • Process connection: ½" NPT (M) / ½" BSP (M)
  • Ingress protection: IP 54 / IP 65
PI-P102

PI Controls Europe - All SS pressure gauge with external zero adjustment

Pressure Gauge - Standard

  • Dial size: DN100 / DN125 / DN150 / DN250
  • Range: -1...0...1,600 bar
  • Process connection: ½" NPT (M) / ½" BSP (M)
  • Execution: Dry / Dry but fillable, glycerin

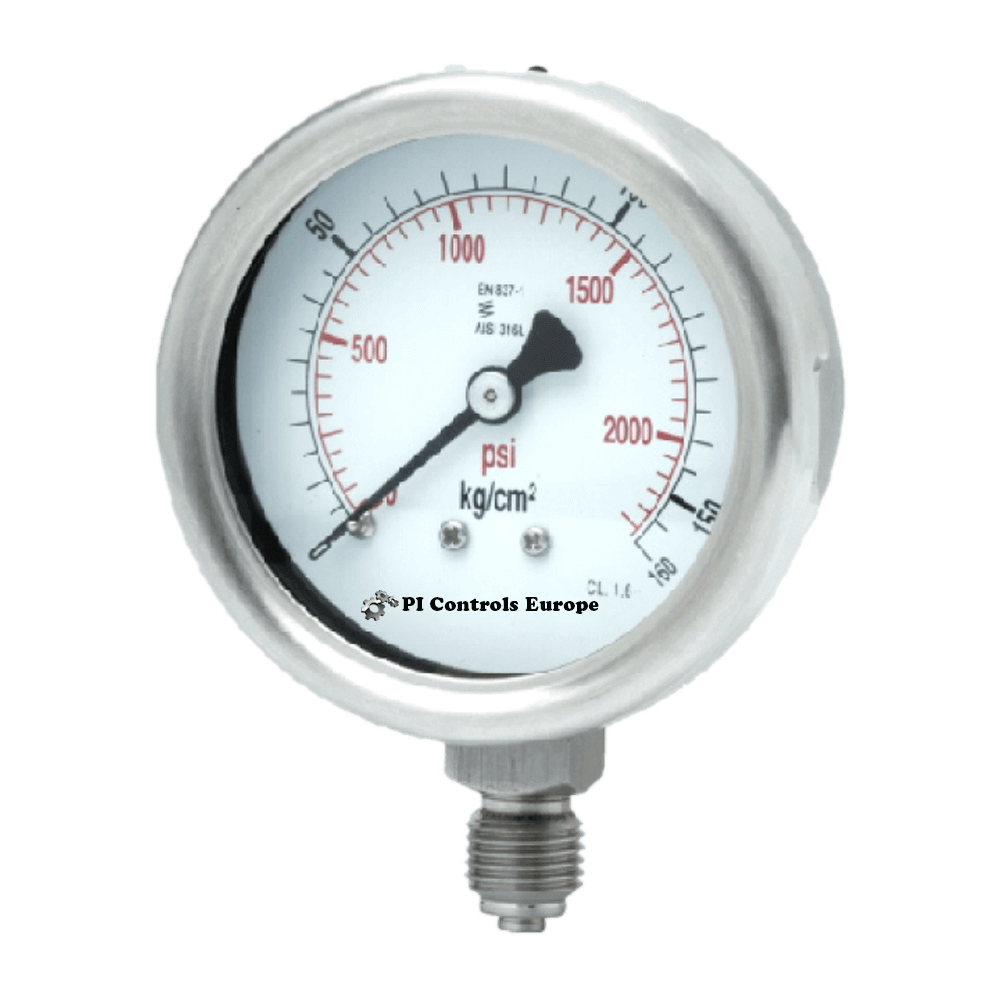

PI-P103

PI Controls Europe - All SS pressure gauge, >=100 mm diameter

Pressure Gauge - Standard

  • Dial size: DN50/ DN63 / DN80 / DN100
  • Range: -1…400 bar (DN50)
  • Process connection: ¼" NPT (M) / ¼" BSP (M)
  • Ingress protection: IP 54 / IP 65
PI-P104

PI Controls Europe - All stainless steel pressure gauge, DIN style case

Pressure Gauge - Standard

  • Dial size :DN100 / DN150
  • Range :-1...0...1,600 bar
  • Process connection :½" NPT (M)/½" BSP (M)
  • Ingress protection :IP 54 / IP 65
PI-P105

PI Controls Europe - PP case pressure gauge

Pressure Gauge - Standard

  • Dial size :DN100 / DN150
  • Range :-1...0...2,000 bar
  • Process connection :½" NPT (M)/½" BSP (M)
  • Ingress protection :IP 54 / IP 65

Pressure Gauge - Solid Front

PI-P201

PI Controls Europe - All SS solid front pressure gauge, >100 mm diameter

Pressure Gauge - Solid Front

  • Dial size: DN100 / DN150
  • Range: -1...0...1,600 bar
  • Process connection: ½" NPT (M) / ½" BSP (M)
  • Ingress protection: IP 65
PI-P202

PI Controls Europe - All SS solid front pressure gauge, with external zero adjustment

Pressure Gauge - Solid Front

  • Dial size: DN100 / DN150
  • Range: -1...0...1,600 bar
  • Process connection: ½" NPT (M) / ½" BSP (M)
  • Execution: Dry but fillable, glycerin
PI-P203

PI Controls Europe - All SS solid front pressure gauge, < 100 mm diameter

Pressure Gauge - Solid Front

  • Dial size: DN63
  • Range: -1...1,000 bar
  • Process connection: ¼" NPT (M) / ¼" BSP (M)
  • Execution: Dry but fillable, glycerin
PI-P204

PI Controls Europe - Phenol case solid front pressure gauge, turret design

Pressure Gauge - Solid Front

  • Accuracy: Grade 2A (± 0.5%)
  • Dial size: 4.5”
  • Range: -1...0...1,600 bar
  • Process connection: ½" NPT (M) / ½" BSP (M)

Pressure Gauge - Differential

PI-P301

PI Controls Europe - Differential pressure gauge, double diaphragm type

Pressure Gauge - Differential

  • Accuracy: CL 1.6 (Standard)
  • Dial size: DN100/DN150
  • Range: 0...60 mbar up to 0...40 bar
  • Process connections: ¼" NPT (F) x 2 Nos.
PI-P302

PI Controls Europe - Differential pressure gauge, single diaphragm type

Pressure Gauge - Differential

  • Accuracy: CL 2.5
  • Dial size: DN100 / DN125 / DN150
  • Range: 25 mbar…0...25 bar
  • Process connection: ¼" NPT (F) x 2 Nos.
PI-P303

PI Controls Europe - Differential pressure gauge, bellow type

Pressure Gauge - Differential

  • Dial size :DN150
  • Range :0...100 mbar to 0...16 bar
  • Process connection :½" NPT (M) x 2 Nos.
  • Ingress protection :IP 65

Pressure Gauge - Differential Economical

PI-P401

PI Controls Europe - Differential pressure gauge, piston operated

Pressure Gauge - Differential Economical

  • Accuracy :± 2 % (Ascending)
  • Dial size :DN63 / DN100 / DN150
  • Range :0...0.25…70 bar
  • Process connection :¼" NPT (F) x 2 Nos
PI-P402

PI Controls Europe - Differential pressure gauge, diaphragm operated

Pressure Gauge - Differential Economical

  • Accuracy :± 2 % (Ascending)
  • Dial size :DN63 / DN100 / DN150
  • Range :0...75 mbar up to 0…4 bar
  • Mounting pattern :In-line connection
PI-P403

PI Controls Europe - Differential pressure gauge, Ex-proof indicating switch

Pressure Gauge - Differential Economical

  • Dial size :DN63 / DN100 / DN150
  • Range :0...75 mbar up to 0…4 bar
  • Ingress protection:NEMA 4X, IP66, IP67
  • Switch :1 SPST / 2 SPDT, 230VAC/0.5A

Pressure Gauge - Electrical

PI-P501

PI Controls Europe - All SS pressure gauge, electric contact type, dome style

Pressure Gauge - Electrical

  • Dial size :DN100 / DN150
  • Range :-1...0...1,600 bar
  • Switch :1NO, 1NC, 1NO+1NC, SPDT, DPDT
  • Execution :Dry, IP 65
PI-P502

PI Controls Europe - All SS pressure gauge, electric contact type, hi-version case

Pressure Gauge - Electrical

  • Dial size :DN100 / DN150
  • Range :-1...0...1,600 bar
  • Switch :1NO, 1NC, 1NO+1NC, SPDT, DPDT
  • Execution :Dry, IP 65

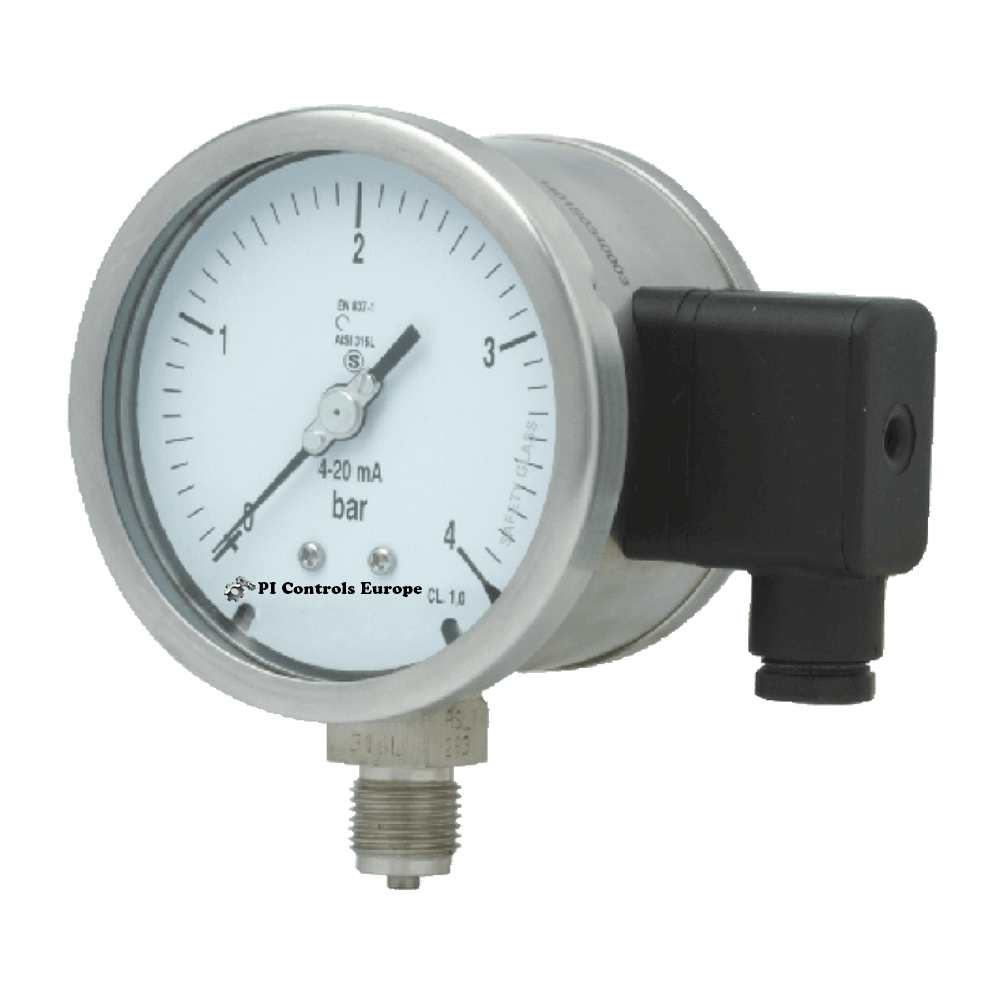

PI-P503

PI Controls Europe - Transmitter pressure gauge

Pressure Gauge - Electrical

  • Dial size :DN100 / DN150
  • Range :-1…0...600 bar
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Electrical termination :4 pin PG 13.5 connector
PI-P504

PI Controls Europe - Microswitch pressure gauge, indicating switch

Pressure Gauge - Electrical

  • Dial size :DN100 / DN150
  • Range :-1…0...600 bar
  • Switch type :1 SPDT,250VAC/15A, 24VDC/2A
  • Execution :Dry, IP 44

Pressure Gauge - Diaphragm

PI-P601

PI Controls Europe - All SS pressure gauge, capsule type

Pressure Gauge - Diaphragm

  • Accuracy :CL 1.6
  • Dial size :DN63 / DN100 / DN125 / DN150
  • Range :-600...25...600 mbar
  • Process connection :½" NPT (M) / ½" BSP (M)
PI-P602

PI Controls Europe - All SS pressure gauge, diaphragm type, low-medium pressure

Pressure Gauge - Diaphragm

  • Dial size :DN100 / DN150
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Ingress protection :IP 54
  • Execution :Dry
PI-P603

PI Controls Europe - SS case brass pressure gauge, capsule

Pressure Gauge - Diaphragm

  • Dial size :DN63 / DN100 / DN125 / DN150
  • Range :-600...25...600 mbar
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Ingress protection :IP 54
PI-P604

PI Controls Europe - All SS pressure gauge, diaphragm type, low pressure

Pressure Gauge - Diaphragm

  • Dial size :DN100 / DN150
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Ingress protection :IP 65 - EN 60529 / IEC 529
  • Execution :Dry

Pressure Gauge - Diaphragm Sealed

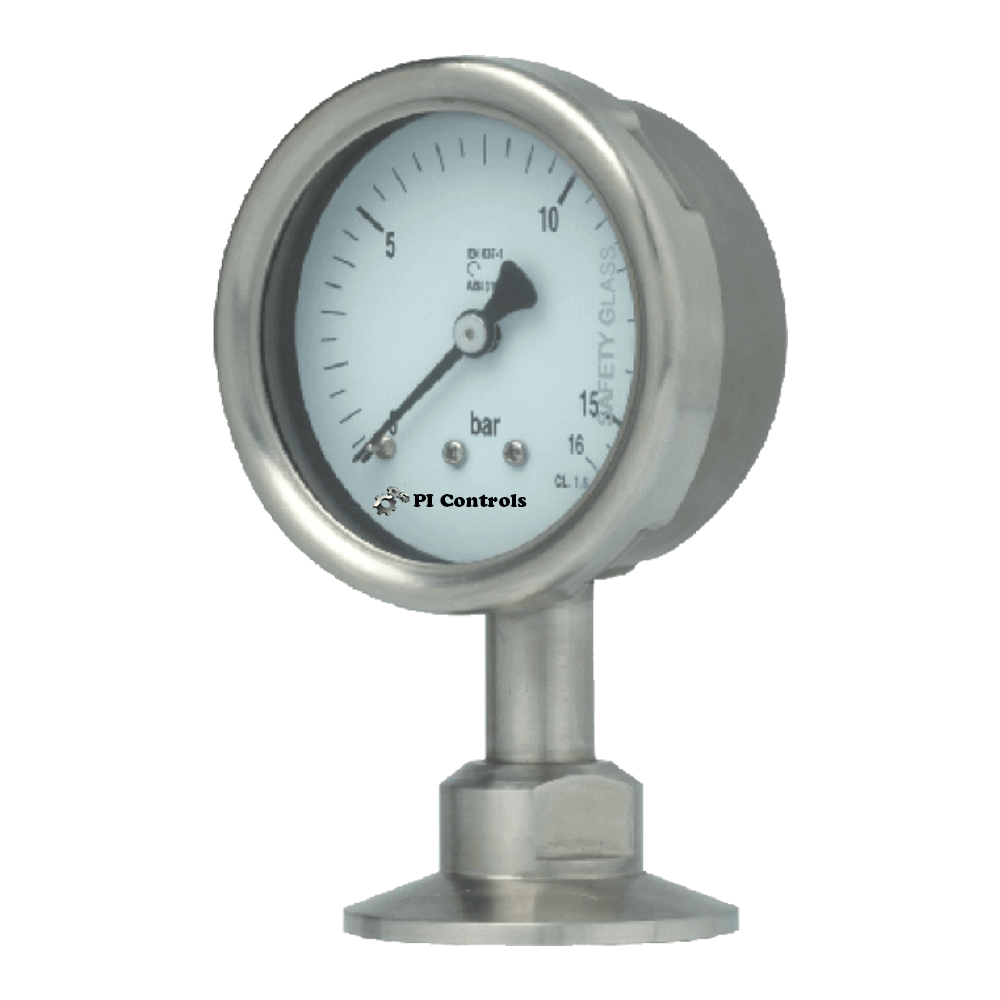

PI-P701

PI Controls Europe - Sanitary pressure gauge, diaphragm seal

Pressure Gauge - Diaphragm Sealed

  • Dial size :DN50 / DN63 / DN100
  • Range :-1…40 bar
  • Process connection :1½" Sanitary connection
  • Seal filling fluid :Glycerine [10°C to 150°C]
PI-P702

PI Controls Europe - Sanitary pressure gauge, diaphragm seal

Pressure Gauge - Diaphragm Sealed

  • Dial size :DN100
  • Process connection :With mounting flange
  • Seal filling fluid :Food grade oil
  • Execution :Dampening liquid filled, glycerine
PI-P703

PI Controls Europe - Integral diaphragm seal gauge, threaded

Pressure Gauge - Diaphragm Sealed

  • Dial size :DN100
  • Range :4…70 bar
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Seal filling fluid :Silicon DC 200
PI-P704

PI Controls Europe - Integral diaphragm seal gauge, flanged

Pressure Gauge - Diaphragm Sealed

  • Dial size :DN100 / DN150
  • Range :-1…400 bar
  • Seal filling fluid :Silicon DC 200
  • Execution :Dry, IP 65
PI-P705

PI Controls Europe - Plastic diaphragm seal gauge, threaded

Pressure Gauge - Diaphragm Sealed

  • Dial size :DN100 / DN150
  • Range :0...1bar to 0…10 bar
  • Process connection :½" NPT (F) / ½" BSP (F)
  • Seal filling fluid :Silicon DC 200

Pressure Gauge - Customized

PI-P801

PI Controls Europe - SS case test gauge (Acc. ±0.25%)

Pressure Gauge - Customized

  • Dial size :DN 150 / DN250
  • Range :-1…700 bar
  • Process connection :½" NPT (M) / ½" BSP (M)
  • Carrying case :Pine wood carrying case
PI-P802

PI Controls Europe - Adjustable deadband pressure gauge

Pressure Gauge - Customized

  • Accuracy :CL 1.0
  • Dial size :DN100 & DN150
  • Range :-1...2,100 bar
  • Process connection :½" NPT (M) / ½" BSP (M)
PI-P803

PI Controls Europe - Mud gauge

Pressure Gauge - Customized

  • Dial size :DN100
  • High Ranges :0…600 bar & 0…800 bar
  • Process connection :2" NPT (M)
  • Execution :Dampening liquid filled, glycerin
PI-P804

PI Controls Europe - Edge wise draft gauge

Pressure Gauge - Customized

  • Dial size :150 x 78 mm / 200 x 104 mm
  • Range :-6,000…6,000 mmWC
  • Process connection :¼" BSP (M)
  • Execution :Dry

Pressure Gauge - Utility

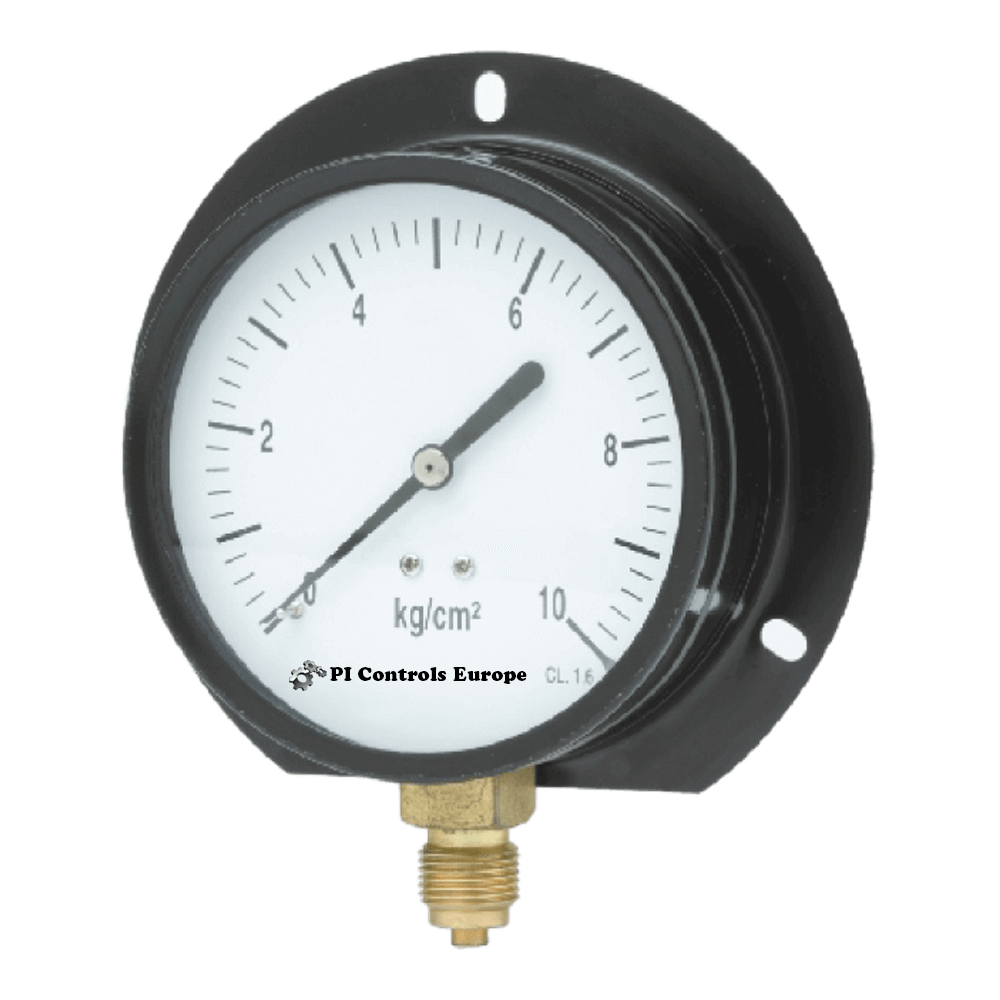

PI-P901

PI Controls Europe - Utility pressure gauge

Pressure Gauge - Utility

  • Dial size: DN25 / DN40 / DN50 / DN63 / DN80 / DN100 / DN150 / DN250
  • Ranges :-1…700 bar (DN100 & above)
  • Process connection :¼" NPT (M) / ¼" BSP (M)
  • Execution :Dry, IP 54
PI-P902

PI Controls Europe - SS case brass pressure gauge

Pressure Gauge - Utility

  • Dial size :DN50 / DN63 / DN80 / DN100
  • Range :-1…400 bar (DN50), -1…1,000 bar (DN63/DN80/DN100)
  • Process connection :¼" NPT (M) / ¼" BSP (M)
  • Ingress protection :IP 65
PI-P903

PI Controls Europe - Ammonia pressure gauge

Pressure Gauge - Utility

  • Dial size :DN63 / DN100
  • Ammonia Ranges :-1…12.5 bar, -1…16 bar, -1…25 bar
  • Mounting pattern :Direct, Bottom connection
  • Process connection :¼" NPT (M) / ¼" BSP (M)
PI-P904

PI Controls Europe - Tyre pressure gauge

Pressure Gauge - Utility

  • Dial size :DN50 / DN63
  • Range :0…30 psi, 0…60 psi, 0…100 psi, 0…150 psi, 0…220 psi
  • Mounting pattern :Direct, Bottom connection
  • Process connection :Twin connection
PI-P905

PI Controls Europe - SS case brass pressure gauge

Pressure Gauge - Utility

  • Dial size :DN100
  • Range :-1...0...400 bar
  • Process connection :½" NPT (M)/½" BSP (M)
  • Ingress protection :IP 54 / IP 65
PI-P906

PI Controls Europe - Steel case brass pressure gauge, Economical

Pressure Gauge - Utility

  • Dial size :DN250
  • Range :-1...0...2,000 bar
  • Process connection :½" NPT (M)/½" BSP (M)
  • Ingress protection :IP 54

Pressure Gauge - Digital Manometer

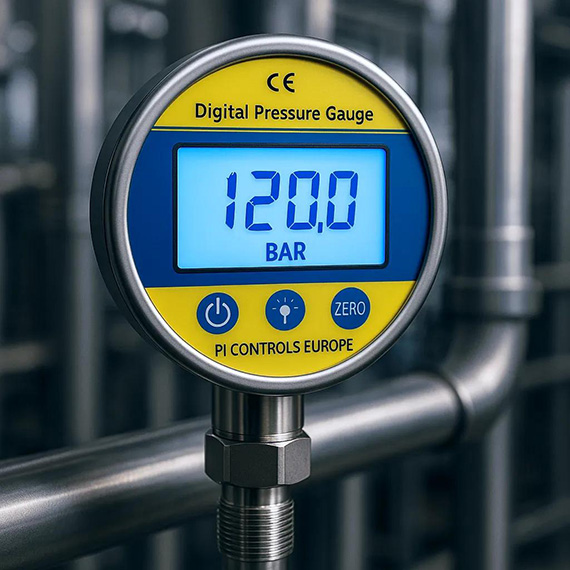

PI-UIY6

PI Controls Europe - Digital Pressure gauge

Pressure Gauge - Digital Manometer

  • Pressure Range: -1...0~~0.1...1000 bar
  • Accuracy: 0.1%FS,0.25%FS(standard), 0.5%FS
  • Process connection: ½ bsp& ½” npt
  • LCD display 4-digit
  • Battery power supply: 9V DC
