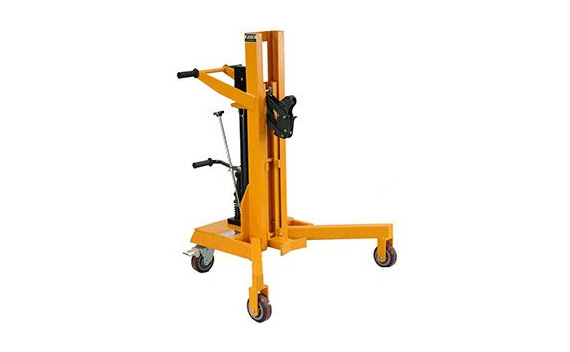

Ergonomic lifts, transport and places ploy, steel or fiber drum on or off pallets. A Spring-load clamp securely holds any rimmed drum. It have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability. Easily glider over pallet to quickly load or unload 30 or 50 gallon drums, grabs from the middle of a standard pallet with a drum clawgrab, raises the drum up, and distributes them throughout the facility.
Model |
COT ‐ 0.35/1.4 |
CDT ‐ 0.35/1.6 |
CDT ‐ 0.35/2.5 |
Load lifting Capacity (Kg) |
350 |
350 |
350 |
Lifting height (mm) |
1400 |
1600 |
2500 |
Overall dimension (mm) |
1190x890x2000 |
1190x890x2000 |
1190x890x2000 |
Self weight (Kg) |
160 |
320 |
365 |
Overall height (mm) |
2020 |
2120 |
1950 |
Net Weight (Kg) |
155 |
310 |
360 |
Model |
YTC - 0.3A |
YTC ‐ 0.3B |
Reted lifting Capacity (kg) |
300 |
300 |
Lifting height (mm) |
400 |
200 |
Overall demensions (mm) |
125 x 915 x 1180 |
850 x 880 x 1280 |
Self Weight (kg) |
80 |
50 |

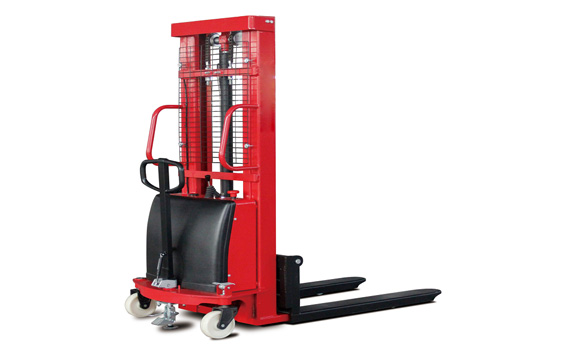

Economic & High Efficiency + Cost effective handling solution for vehicle loading & production areas with minimum investment, energy saving and regenerative, safe & Efficient. Design puts the focus on the safety and ergonomic working conditions of the user.
Safe packing in any situation with mechanical parking brake. Integrated charger facilitates easy and reliable charging. Precise lifting and lowering via hand lever.
Long operating times through a high effiency factor. More safety through enclosed truck contours. Simple operation through the multi-function handle. Compact construction for high manoeuvrability.
Model |
CTD 1.0/16 |
CTD 1.0/20 |
CTD 1.0/25 |
CTD 1.0/30/33 |
CTD 1.5/16 |
Capacity (Kg) |
1000 |
1000 |
1000 |
1000 |
1500 |
Lifting height H2 (mm) |
1600 |
2000 |
2500 |
3000/3300 |
1600 |
| Mast type |
Single |
Double |
Double |
Double |
Single |
Fork length L1 (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
Min.height of forks H1 (mm) |
90 |
90 |
90 |
90 |
90 |
Load center (mm) |
500 |
500 |
500 |
500 |
500 |
Charging voltage |
AC220V |
AC220V |
AC220V |
AC220V |
AC220V |
| Motor power |
1.6KW |
1.6KW |
1.6KW |
1.6KW |
1.6KW |
Outer width of legs (mm) |
795 |
795 |
795 |
795 |
795 |
Inner width of legs (mm) |
360 |
360 |
360 |
360 |
360 |
| Adjustable width of forks (mm) |
360‐680 |
360‐680 |
360‐680 |
360‐680 |
360‐680 |
Rear wheel size (mm) |
180 x 50 |
180 x 50 |
180 x 50 |
180 x 50 |
180 x 50 |
Front wheel size (mm) |
80 x 65 |
80 x 65 |
80 x 65 |
80 x 65 |
80 x 65 |
Weight (kg) |
280 |
305 |
325 |
350/410 |
305 |
Closed height H3 (mm) |
2080 |
1650 |
1900 |
2150/2300 |
2080 |
| Extended height (mm) |
2080 |
2650 |
3125 |
3625/3925 |
2080 |
Model |
CBD 20 |
CBD 25 |
Drive Unit |
Electric |
Electric |
Load Capacity (Kg) |
2000 |
2500 |
Load center (Q.mm) |
600 |
600 |
Front wheel dia.(mm) |
80 x 70 |
80 x 70 |
Rear wheel dia. (mm) |
80 x 36 |
80 x 36 |
Traction wheel (mm) |
250 x 80 |
250 x 80 |
Lifting height (mm) |
200 |
200 |
Fork clearance from ground |
85 |
85 |
Fork dimensions (L mm) |
1220 x 160 x 50 |
1220 x 160 x 50 |
Total length (L2 L3 mm) |
1940, 2280 |
1940, 2280 |
Total width (B mm) |
720 |
720 |
Maximum fork width |
680 |
680 |
Turning radius |
1680, 1960 |
1680, 1960 |
Lifting speed. |
40/30 |
40/30 |
Truck weight |
375 |
390 |
Battety volts/ ampere |
V x 12 / 210AH |
V x 12 / 210AH |
Battery charger |
AC220V/50HZ/DC24V/30A |
AC220V/50HZ/DC24V/30A |
