Ammonia Service Tonners & Industrial Pressure Vessels | Gulf Oil & Gas International
Gulf Oil & Gas International provides ammonia service tonners and industrial pressure vessels designed for the safe storage and transfer of anhydrous and industrial ammonia, supporting refrigeration plants, fertilizer producers, chemical facilities and utilities in the UAE and international markets.
We help engineering, safety and procurement teams define design pressure and temperature, vessel capacity, nozzle configuration, safety relief requirements, coatings, supports and documentation to comply with applicable pressure vessel codes and ammonia handling standards.
Send your design data or existing tank/tonner details, and Gulf Oil & Gas International will recommend a suitable ammonia service tonner or industrial pressure vessel with technical documentation, accessories package and a commercial offer.
Product Overview
Design | Supply | Export by Gulf Oil & Gas International, UAE
Gulf Oil & Gas International (GOI), UAE, in partnership with our principal manufacturer, offers high-quality Ammonia Service Tonners engineered for safe storage and transportation of ammonia and compatible refrigerant gases. These tonners are designed and manufactured strictly in accordance with IS 2825 Class-1 (1969 – latest amendments) and Gas Cylinder Rules, ensuring superior safety, durability, and regulatory compliance for demanding industrial applications.
Design Code & Compliance
- Design Code: IS 2825 – Class 1 (1969) with latest amendments
- Applicable Regulations: Gas Cylinder Rules
- Inspection Authority: Lloyd’s (TPIA) / Client Representative
- Radiography: 100% Radiography for Shell & Heads
- Heat Treatment: Stress Relieving with Post Weld Heat Treatment (PWHT)
Technical Specifications – Ammonia Tonner
| Parameter | Unit | Value |
| Design Pressure | Kg/cm²g | 34.6 |
| Design Temperature | °C | 65 |
| Operating Pressure | Kg/cm²g | As per Gas Cylinder Rules |
| Operating Temperature | °C | 55 |
| Corrosion Allowance | mm | 1.5 |
| Capacity | m³ | 0.926 (926 Litres) |
| Joint Efficiency (Shell / Head) | – | 1 |
| Empty Weight | kg | 550 |
| Operating Weight | kg | 1765 |
| Test Weight (Filled with Water) | kg | 1476 |
| Head Type | – | Semi-Ellipsoidal |
| Filling Ratio | – | As per Gas Cylinder Rules |
| Heat Treatment | – | Stress Relieved |
| Post Weld Heat Treatment | – | Yes |
| Density of Refrigerant (Feron) | kg/L | 1.458 |
| Fire Proofing | – | Not Applicable |
| Insulation Thickness | – | Not Applicable |
Operating Media Compatibility
The ammonia tonners are suitable for the following gases and refrigerants:
- Ammonia (NH3)
- R22
- R134A
- R404A
- R407C
- R290
- R600A
This wide compatibility makes the tonners ideal for both ammonia refrigeration systems and industrial gas handling applications.
Key Features & Advantages
-
Compliance with International StandardsManufactured in full compliance with IS standards and Gas Cylinder Rules, ensuring safe operation, long service life, and regulatory acceptance across global markets.
-
Robust & Durable ConstructionDesigned to withstand harsh industrial environments, high pressures, and repeated handling cycles, ensuring excellent structural integrity and reliability.
-
Enhanced Safety Design100% radiographic testing, certified inspection, controlled filling ratios, and PWHT ensure maximum operational safety during storage and transportation.
-
User-Friendly & Easy HandlingOptimized design for safe handling, loading, unloading, and integration into existing ammonia and refrigeration systems.
-
Long Service Life & Cost EfficiencyHigh-quality materials and strict quality control processes reduce maintenance requirements and replacement frequency, delivering long-term cost savings.
Applications

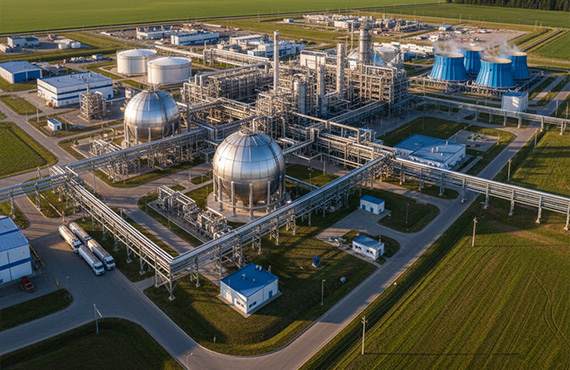

Ammonia refrigeration plants

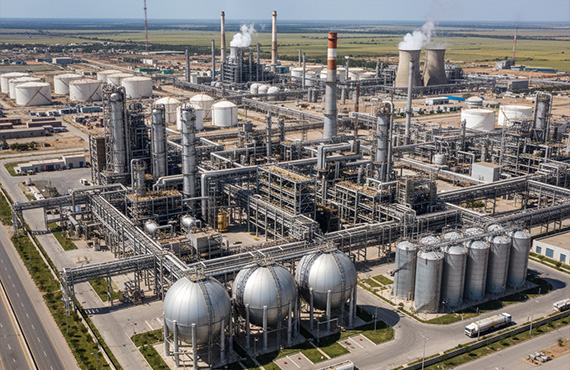

Fertilizer and chemical processing units

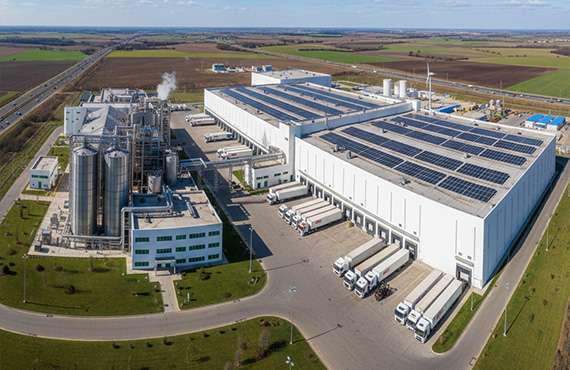

Cold storage & food processing industries
Industrial gas storage & transfer systems
Why Choose Gulf Oil & Gas International, UAE?
- Trusted supplier & exporter of industrial pressure vessels
- Strong partnership with certified principal manufacturer
- Compliance with international inspection and quality standards
- Proven experience in UAE, GCC, Middle East, Africa & global exports
- Technical support, customization & documentation assistance
Contact Gulf Oil & Gas International, UAE
For technical datasheets, pricing, certifications, or project-specific requirements for Ammonia Service Tonners, contact our sales and engineering team today.
