Tonners for Chlorine Service | Gulf Oil & Gas International
Gulf Oil & Gas International provides tonners for chlorine service to support safe storage and controlled use of chlorine in municipal, industrial and utility applications across the UAE and international markets.
We assist engineering, HSE and procurement teams in defining vessel capacity, design pressure and temperature, nozzle and valve configurations, safety relief and leak containment provisions, coatings and support details, along with the documentation required by chlorine handling regulations and pressure vessel codes.
Send your design data, existing cylinder/tonner details and project requirements, and Gulf Oil & Gas International will recommend a suitable chlorine service tonner configuration with technical documentation, accessories package and a commercial offer.
Product Overview
Gulf Oil & Gas International (GOI), UAE, supplies high-power Chlorine Tonners in collaboration with our principal manufacturer, engineered for industrial chlorine handling, storage, and transport. These tonners are designed to maximize safety, durability, and operational reliability, fully compliant with ASME and industrial codes.
Key Features
- Industry Compliance – Manufactured according to ASME Sec VIII Div.1 2004 Ed, 2005 Add with Bhor 1968 standards
- Safety Assurance – Built for high-pressure chlorine service with certified inspection by Lloyd’s Register
- User-Friendly Handling – Ergonomic design simplifies operation and maintenance
- Exceptional Durability – Resistant to corrosion, industrial wear, and environmental exposure
- Extended Service Life – Robust design minimizes replacements and downtime
- Optional Enhancements – Emergency KIT B compatibility, additional coatings, valves, and inspection couplings
Technical Specifications
| Parameter | Unit | Value |
| Design Code | - | ASME Sec VIII Div.1 2004 Ed, 2005 Add (Head to Shell Joint as per Bhor 1968) |
| Design Pressure | kgf/cm² (g) | 19.9 |
| Design Temperature | °C | 65 (149°F) |
| Material of Construction | Shell & Dished Ends | SA 516 Gr 60/70 or equivalent |
| Longitudinal Shell & Dish Joint | - | Fusion Welded |
| Radiography | - | 100% of all Butt Welded Joints |
| Post Weld Heat Treatment (PWHT) | - | Yes |
| Hydraulic Test Pressure | kgf | 30 |
| Surface Preparation | - | Blast Cleaning |
| Painting | - | Golden Yellow Paint |
| Design Approval | - | (a) Lloyd's Register Asia (b) Chief Controller of Explosives (India) |
| Inspection | - | Lloyd's Register Industrial Service |
| Tare Weight | kg | 620 (approx.) |
| Water Capacity | L | 781 (approx.) |
| Chlorine Capacity | kg | 930 (approx.) |
| Filling Ratio | - | 01:01:19 |
Standard Accessories
- Two valves (25.4 mm / 1 inch) made from Aluminium Silicon Bronze with stainless steel or Monel spindle, conforming to BS-3224 Part-1
- Two valve outlet cap nuts in brass
- Two brass plugs (25.4 mm / 1 inch) conforming to BS-341 Part-1 or IS 3224
- One mild steel valve protecting dome
Optional Accessories
- Valves, coupling, and fusible plugs conforming to ANSI 3/4" NGT CL-1, B-57.1, or JIS 8246
- Chlorine capacity up to 1000 kg
- Additional inspection couplings
- Polyurethane or chlorinated rubber paint on outer surface
- Zinc coating via molten zinc spray technique
- Compatible with Emergency KIT B of the Chlorine Institute, USA
Applications

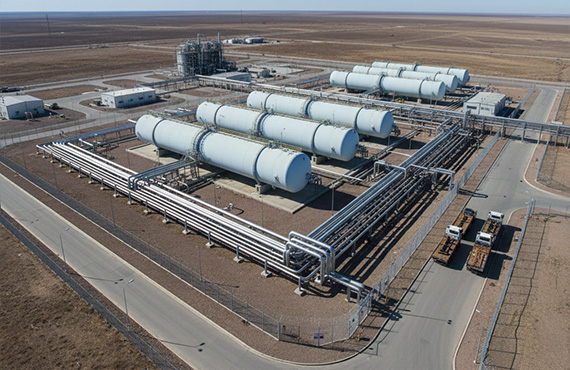

Industrial chlorine storage and handling

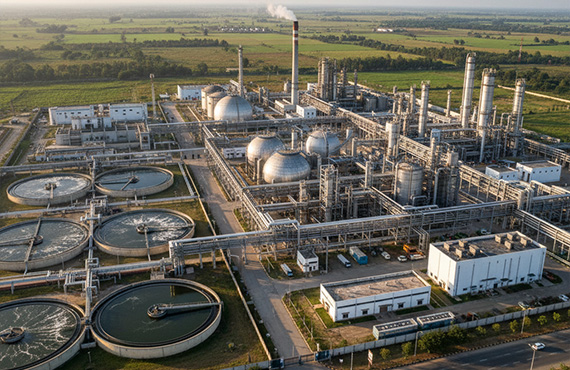

Water treatment plants and chemical industries

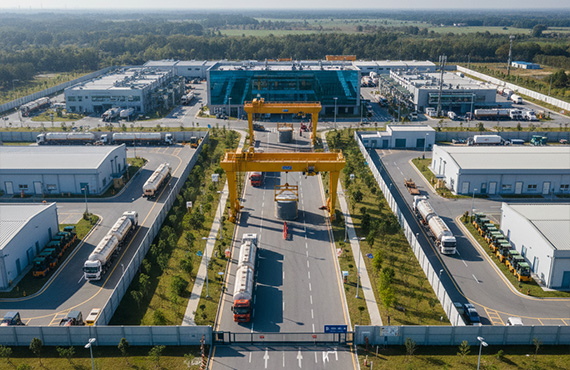

Safe transport and operational compliance in industrial settings
Why Choose Gulf Oil & Gas International, UAE?
- ASME & industrial code compliant for safe high-pressure chlorine service
- Durable and corrosion-resistant construction for long-term reliability
- Certified inspection by Lloyd's ensures safety and performance
- User-friendly and ergonomic design for operational efficiency
- Export-ready for GCC, Middle East, Africa, and global industrial markets
