Providing Standard, Customized and heavy duty Solenoid valves and other specialized valves with Quality Assurance

Gulf Oil & Gas International Welcomes you to explore the broad range of Industrial Field instruments, Process Instruments (Gauge,Level Indicators, Switches, Transmitters, FlowMeters), Test and Measurement Equipment, and Process Control Equipments of international brands( PI control Europe, Gems, ESI, Krohne, ABB, Honeywell, Dwyer, and others).We offer All Types Of standard and customized Solenoid valves and other specialized valves. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offer you the best quality at the most competitive price.

2/2-way piston-operated angle-seat valves for neutral and aggressive liquids and gases

Thread Angle Seat Valves

Model	Port Size	Working Medium	Air pressure	Fluid pressure	Operating Temp.
DN15	ZG1/2”	Air, Water, Oil, Gas, Steam	0.4~0.8MPa	0~1.6MPa	-10⁰C~+60⁰C
DN20	ZG3/4”
DN25	ZG1”
DN32	ZG 1 1/4”
DN40	ZG 1 1/2”
DN50	ZG2”
DN65	ZG 2 1/2”
DN80	ZG3”

Flange Angle Seat Valves

Model	Port Size	Working Medium	Air pressure	Fluid pressure	Operating Temp.
DN15	1/2”	Air, Water, Oil, Gas, Steam	0.4~0.8MPa	0~1.6MPa	-10⁰C~+60⁰C
DN20	3/4”
DN25	1”
DN32	1 1/4”
DN40	1 1/2”
DN50	2”
DN65	2 1/2”
DN80	3”

Tri-clamp Connection Type Angle Seat Valves

Model	Port Size	Working Medium	Air pressure	Fluid pressure	Operating Temp.
DN15	1/2”	Air, Water, Oil, Gas, Steam	0.4~0.8MPa	0~1.6MPa	-10⁰C~+60⁰C
DN20	3/4”
DN25	1”
DN32	1 1/4”
DN40	1 1/2”
DN50	2”
DN65	2 1/2”
DN80	3”

Welding Angle Seat Valves

Model	Port Size	Working Medium	Air pressure	Fluid pressure	Operating Temp.
DN15	1/2”	Air, Water, Oil, Gas, Steam	0.4~0.8MPa	0~1.6MPa	-10⁰C~+60⁰C
DN20	3/4”
DN25	1”
DN32	1 1/4”
DN40	1 1/2”
DN50	2”
DN65	2 1/2”
DN80	3”

Klgmf Series Diaphragm Valve

Model	Driving Way	Working Medium	Operating Pressure	Operating Temp.
KLGMF81 – 10R	Manual, with closed peneumatied device	Neutral gas, Air, Water	0~1.0MPa	-20~150⁰C
KLGMF681 – 10R	Pneumatic, normally closed, normally open, and double direction
KLGMF – M	Manual operation

Pneumatic Piston Valves For Neutral Liquid And Gaseous

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
Q22HD-15	ZG1/2”	Air, Water, Oil, liquefied gas, free-running Viscosity liquid	0~1.0MPa	NBR For-5-80⁰C and EPDM, VITON for-5-150⁰C
Q22HD-20	ZG3/4”
Q22HD-25	ZG1”
Q22HD-35	ZG 1 1/4”
Q22HD-40	ZG 1 1/2”
Q22HD-50	ZG2”

2/2 Way Direct Acting Solenoid Valves, ZG3/8"-ZG2

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
2W160-10	ZG 3/8”	Air, Water, Oil, Gas	Air: 0~1.0MPa Water: 0~0.7MPa Oil: 0~0.7MPa	NBR For-5~80⁰C and VITON for-5~150⁰C
2W160-15	ZG 1/2”
2W200-20	ZG 3/4”
2W250-25	ZG1”
2W350-35	ZG 1 1/4”
2W400-40	ZG 1 1/2”
2W500-50	ZG2”

2/2 Way Direct Acting Solenoid Valves, ZG3/8"-ZG3/8"

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
2W025-06	ZG 1/8”	Air, Water, Oil, Gas	Air, Water, Oil, Gas: 0~0.7MPa	NBR For-5~80⁰C and VITON for-5~150⁰C
2W025-08	ZG 1/4”
2W040-10	ZG 3/8”
2WH012-06	ZG 1/8”		Air, Water, Oil: 0~2.0MPa
2WH012-08	ZG 1/4”
2WH020-10	ZG 3/8”

Fluid Solenoid Valves With Stainless Steel Body

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
2WB-06	ZG 1/8”	Water, weak acid & alkali	1.0MPa (Normal open type max. pressure 0.8MPa)	NBR For-5~80⁰C and VITON for-5~150⁰C
2WB-08	ZG 1/4”
2WB-10	ZG 3/8”
2WB-15	ZG 1/2”
2WB-20	ZG 3/4”
2WB-25	ZG1”
2WB-35	ZG 1 1/4”
2WB-40	ZG 1 1/2”
2WB-50	ZG 2”

2WBF Fluid Stainless Steel Solenoid Valves With Flange Connection

Model	Orifice	Working Medium	Operating Pressure	Operating Temp.
2WBF-15	16	Water, weak acid & alkali	1.0MPa (Normal Open type max. Pressure 0.8MPa	NBR For-5~80⁰C and VITON for-5~150⁰C
2WBF-20	20
2WBF-25	25
2WBF-35	35
2WBF-40	40
2WBF-50	50

US(2L) 2/2 Way Pilot-Operated Steam Solenoid Valves

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
US(2L)-15	ZG 1/2”	Air, Water, Steam	0.1~1.5MPa Air, Water, Steam 0.1~1.5MPa	-5~185⁰C
US(2L)-20	ZG 3/4”
US(2L)-25	ZG1”
US(2L)-35	ZG 1 1/4”
US(2L)-40	ZG 1 1/2”
US(2L)-50	ZG2”

KL223 Series Compact Direct Acting Solenoid Valve

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KL2231001	ZG 1/8” (or) ZG 1/4”	1.5mm	0~2.5MPa	NBR: -5~80⁰C EPDM: -5~120⁰C VITON: -10~150⁰C
KL2231002		2mm	0~1.5MPa
KL2231003		3mm	0~1.0MPa
KL2231004		4mm	0~0.4MPa

KL6014 Series 3/2 Way Direct Acting Solenoid Valve

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
6014-01-B	Sub-base Connection	1mm	0~1.6MPa	NBR: -5~80 EPDM: -5~120 VITON: -10~150
6014-015-B		1.5mm	0~1MPa
6014-02-B		2mm	0~0.8MPa
6014-025-B		2.5mm	0~0.6MPa
6014-01-06	ZG1/8”	1mm	0~1.6MPa
6014-015-06	ZG1/8”	1.5mm	0~1MPa

KL0311 Series 4/2 Way Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KL0311	Top: ZG1/8”	Top: 2mm	0.05~1.2MPa	-5~85⁰C
	Middle: ZG1/8”, M5
	Body, ZG1/4” ZG3/8”, ZG1/2”	Body: 13mm

2/2 Way Diaphragm Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KL2231015	ZG 1/2”	13mm	0.03~1.0MPa	-10~+90⁰C
KL2231020	ZG 3/4”	20mm
KL2231025	ZG1”	25mm
KL2231032	ZG 1 1/4”	40mm	0.07~1.6MPa
KL2231040	ZG 1 1/2”	40mm
KL2231050	ZG2”	50mm

Solenoid Valves For High Pressure And High Temperature

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KL5231008	ZG1/4”	13mm	0.03~5.0MPa	-20~+55⁰C
KL5231010	ZG3/8”
KL5231015	ZG1/2”
KL5231020	ZG3/4”	25mm	0.03~3.5MPa
KL5231025	ZG1”	25mm	0.03~3.5MPa

2/2 Way General Purpose Solenoid Valves

Model	Orifice Size	Port Size	Operating Pressure	Operating Temp.
0927000	8	ZG1/4”	0.07~1.6MPa	-5~80⁰C for NBR, -5~150⁰C for VITON, EPDM
0955105
0927100	10	ZG3/8”
0955205
0927200	12	ZG1/2”
0955305
0927300	20	ZG3/4”
0955405
0927400	25	ZG1”
0955505
0927500	32	ZG 1 1/4”	0.1~1.6MPa
0955605
0927600	40	ZG 1 1/2”
0955705
0927700	50	ZG2”
0955805

PU220 Series Solenoid Valves

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
PU220-01	ZG1/8”	Compressed Air, Water, Light oil (Below 50CST)	0~0.8MPa	-5~80⁰C (NBR) And -5~150⁰C for (EPDM, VITON)
PU220-02	ZG1/4”
PU220-03	ZG3/8”
PU220-04	ZG1/2”
PU220-06	ZG3/4”
PU220-08	ZG1”

PU225 SERIES SOLENOID VALVES

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
PU225-03	ZG3/8”	Compressed Air, Water, Light oil (Below 50CST)	0.05~1.0MPa	NBR: -5~80⁰C EPDM, VITON: -5~150⁰C
PU225-04	ZG1/2”
PU225-06	ZG3/4”
PU225-08	ZG1”
PU225-12	ZG 1 1/4”
PU225-14	ZG 1 1/2”

2/2 Way Solenoid Valves, High Pressure

Model	Port Size	Fluid	Fluid Pressure	Temperature Range
KL55015	ZG1/2”	Compressed air	0.3~5.0MPa	-5~180⁰C

2/2 Way Solenoid Valves With Engineering Plastic Body

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
2P025-06	ZG1/8”	2.5mm	0~0.7MPa	-5~180⁰C
2P025-08	ZG1/4”	2.5mm	0~0.7MPa	-5~180⁰C

2/2 Way Pilot Operated Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
2V025-06	ZG1/8”	2.5mm	0~1.0MPa	NBR: -5~80⁰C EPDM: -5~120⁰C VITON: -10~150⁰C
2V025-08	ZG1/4”	2.5mm	0~1.0MPa
2V130-10	ZG3/8”	13mm	0.05~1.0MPa
2V130-15	ZG1/2”	13mm
2V250-20	ZG3/4”	25mm
2V250-25	ZG1”	25mm

VX2120/2130 Series 2/2 Way Direct Acting Solenoid Valves

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
VX2120-06-NO	ZG1/8”	Air,Water, Steam, Gas	0~1.0MPa	NBR: -5~80⁰C And EPDM, VITON for-5~150⁰C
VX2120-08-NO	ZG1/4”
VX2120-06	ZG1/8”
VX2120-08	ZG1/4”
VX2120-10	ZG 3/8”
VX2130-15	ZG 1/2”

2/2, 3/2 Way Direct-Acting Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Working Medium
QX22-08	ZG1/4”	1.6mm	0~1.6MPa	Air, Water, Gas
QX22-08	ZG1/4”	4.0mm	0~0.9MPa
QX22-10	ZG3/8”	4.0mm	0~0.9MPa

Model	Port Size	Orifice Size	Operating Pressure	Working Medium
QX23-08	ZG1/4”	1.6mm	0~0.9MPa	Air, Water, Gas
QX23-10	ZG3/8”	1.6mm	0~0.9MPa	Air, Water, Gas

VX22 Series Vacuum Type Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Working Medium	Operating Pressure
VX2215-01/02	ZG1/8” (or) ZG1/4”	1.5mm	0~3.0MPa	Vacuum, Water, Air, Oil, Gas	-5~80⁰C
VX2220-01/02		2.0mm	0~2.0MPa
VX2225-01/02		2.5mm	0~1.6MPa
VX2230-01/02		3.0mm	0~1.3MPa
VX2240-01/02		4.0mm	0~0.6MPa

Customized Solenoid Valves

VX31/32/33 Series 3/2 Way Direct Acting Solenoid Valves

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
VX31	ZG1/8” (or) ZG1/4”	Gas ,Water, Oil, Vacuum, steam	0~0.6MPa	NBR: -5~85⁰C EPDM: -5~150⁰C VITON: -10~150⁰C
VX32
VX33

AB Series Direct Acting Solenoid Valves

Model	Port Size	Working Medium	Max. Working Pressure	Operating Temp.
AB31-01	ZG1/8”	Air, water, oil	5MPa (Steam is 1MPa)	NBR: -0~80⁰C VITON: -0~150⁰C
AB41-02	ZG1/4”		5MPa (Steam is 1MPa)
AB41-0.30.4	ZG3/8” ZG1/2”		2MPa (Steam is 1MPa)
AB42-02	ZG1/4” ZG3/8”		2MPa (Steam is 1MPa)

KLNIH Solenoid Valves

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KLMN1H-2-1/4-MS	ZG1/4”	13mm	0.05~1MPa	-10~+60⁰C
KLMN1H-2-3/8-MS	ZG3/8”	13mm
KLMN1H-2-1/2-MS	ZG1/2”	13mm
KLMN1H-2-3/4-MS	ZG3/4”	20mm
KLMN1H-2-1-MS	ZG1”	25mm
KLMN1H-2-1 1/2-MS	ZG1 1/2”	40mm

KLPT Electronic Drain Valve

Model	Valve Seals	Operating Pressure	Operating Temp.
KLPT-16-1/4”	FPM (Viton) Seals Forged Brass, 5.0 mm orifice	0~1.6MPa	2⁰C ~55⁰C
KLPT-16-3/8”
KLPT-16-1/2” (have stock)

KLMQ Gas Cut Off Valves

Model	Port Size	Working Pressure	Operating Pressure	Operating Temp.
KLMQ-15	ZG1/2”	Natural Gas, Coal Gas, Liquefied Petroleum Gas	0~0.05MPa	-15⁰C ~60⁰C
KLMQ-20	ZG3/4”	Natural Gas, Coal Gas, Liquefied Petroleum Gas	0~0.05MPa	-15⁰C ~60⁰C

KLTJ Manual Adjustable Steam Valves

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
KLTJ	ZG1/4”	2.0mm	0~1.0MPa	-10~160⁰C
		2.7mm
		3.0mm

XF 2/2 Way Pilot and Diaphragm Solenoid Valve

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
XF	ZG1/4”	12mm	0.05~1.0MPa	NBR: -5~80⁰C; EPDM: -5~120⁰C ; VITON: -10~150⁰C
	ZG3/8”
	ZG1/2”

KLG/A Series Pulse Valve

Model	Working Medium	Operating Pressure	Operating Temp.	Voltage
KLG-Z-15	Clean Air	0.3~0.6MPa	-25~55⁰C	AC110V AC220V DC24V
KLG-Z-76S
KLG-Y-50S
KLA-Z-25J
KLA-Z-25

UPVC, CPVC Series Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
2W15ZP	½”	Weak acid & alkali (gas, liquid)	0.01~0.6MPa	Max. +50⁰C
2W20ZP	3/4”
2W25ZP	1”
2W32ZP	1 ¼”
2W40ZP	1 ½”
2W50ZP	2”

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
2W15ZC	½”	Acid & alkali (gas, liquid)	0.01~0.6MPa	Max. +50⁰C
2W20ZC	3/4”
2W25ZC	1”
2W32ZC	1 ¼”
2W40ZC	1 ½”
2W50ZC	2”

PTFE Valve

Model	Port Size	Orifice Size	Operating Pressure	Operating Temp.
ZCF15	½”	15mm	0.01~0.6(MPa)	Max. +180⁰C
ZCF20	3/4”	20mm
ZCF25	1”	25mm
ZCF32	1 ¼”	32mm
ZCF40	1 ½”	40mm
ZCF50	2”	50mm
ZCF65	2 ½”	60mm

ZQDF Series Stem (Liquid) Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZQDF-1	15mm	Air, Coal gas, Vacuum	0~1.6MPa	-20~60⁰C
ZQDF-1Y	20mm	Water, Oil, Liquid	0~1.6MPa	-20~60⁰C
ZQDF-2	25mm	Saturated Steam	0~0.8MPa	0~180⁰C
ZQDF-2Y	32mm	Hot water	0~0.8MPa	0~180⁰C
ZQDF-3	40mm	Superheated steam or high temperature gas	0~1.6MPa	0~220⁰C
ZQDF-3Y	50mm	Hot water, Oil	0~1.6MPa	0~220⁰C

ZCG Series High Temperature Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCG	20mm	Steam and Other high temperature fluid	1.6Mpa, 2.5Mpa, Normally 1.6MPa, Special needs 2.5MPa	-40~350⁰C
	25mm
	32mm
	40mm
	50mm
	65mm

ZBSF Stainless Steel Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZBSF-1	10mm, 15mm, 20mm	Corrosive fluid, clean fluid, edible fluid	1.6MPa	ZBSF-1(1Y): ≤60⁰C, ZBSF-2(2Y): ≤280⁰C
ZBSF-1Y	25mm, 32mm, 40mm
ZBSF-2	50mm, 65mm, 80mm
ZBSF-2Y	100mm, 125mm 150mm

ZCNG, ZCNH Solenoid Valves For High Temperature And High Pressure

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCNG ZCNH	10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm	Heat conducting oil, steam, high temperature and high pressure fluid	2.5MPa	ZCNG ≤250⁰C
	65mm		4.0MPa	ZCNH ≤400⁰C
	80mm, 100mm 125mm, 150mm, 200mm, 250mm		4.0MPa	ZCNH ≤400⁰C

ZCT Stainless Steel Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCT	8mm	Gasoline, kerosene, Diesel oil, water, air, Nitrogen, such as Ethylene glycol	1.6MPa	≤180⁰C
	10mm
	15mm
	20mm
	25mm

ZCZP Series Steam Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCZP	15mm	Steam and other Corrosive gas	1.6MPa	≤200⁰C
	20mm
	25mm
	32mm
	40mm
	50mm
	65mm
	80mm
	100mm
	125mm
	150mm

ZCS Fluid Control Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCS	10mm	Air, water, viscosity≤ 4⁰E oil and other non corrosive fluid	1.0MPa	≤70⁰C
	20mm
	25mm
	32mm
	40mm
	50mm
	65mm
	80mm
	100mm
	125mm
	150mm
	200mm
	250mm
	300mm

ZCM Series Gas Solenoid Valve

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ZCM	15mm	Gas, liquefied petroleum gas, natural gas	0~0.1MPa	-20~80⁰C
	20mm
	25mm
	32mm
	40mm
	50mm
	65mm
	80mm
	100mm
	125mm
	150mm
	200mm
	250mm
	300mm
	350mm

AT Pneumatic Actuator

Model	Operating Pressure	Operating Temp.	Rotate Angle	Life Time
AT-32	Max Working Pressure : 10bar Double acting: 2.5bar-8bar Single acting: 2.5bar-8bar	Standard: -20~80⁰C Option: -35⁰C ~80⁰C/ -20⁰C ~150⁰C	90⁰±5%	One million time
AT-50
AT-63
AT-75
AT-88
AT-100
AT-125
AT-145
AT-160
AT-190
AT-240
AT-270

3 PCS Pneumatic Ball Valve

Model	Orifice Size	Operating Pressure	Operating Temp.	Sealing Material
KLQ611F-16P	DN15	½”~2” 1000psi 2”~1/2”~4” 800psi	-20~+180⁰C	PTFE
	DN20
	DN25
	DN32
	DN40
	DN50
	DN65
	DN80
	DN100

Pneumatic Wafer Butterfly Valve

Model	Orifice Size	Operating Pressure	Operating Temp.	Sealing Material
KLD671X-10P	DN50	PN16, 25, 40 ANSI class 125/150/300	-20~+160⁰C	NBR EPDM FPM
	DN65
	DN80
	DN100
	DN125
	DN150
	DN200
	DN250
	DN300
	DN350
	DN400
	DN450
	DN500
	DN600

KLST Electric Actuator

Model	Output Torque	Time(0-90)	Voltage	Ball Valve
KLST-02	6N.M	7S	AC110, AC220V 50/60HZ DC24V	≤DN20
KLST-05	15N.M	10S	AC110V, AC220V, AC380V, 50/60HZ DC24V	≤DN40
KLST-10	60N.M	20S		DN40~DN50
KLST-20	150N.M	20S		DN65~DN80
KLST-40/60	400N.M	20S		DN100~DN125
KLST-100	1000N.M	50S		DN150~DN200
KLST-200	2000N.M	100S		DN250~DN300
KLST-400	4000N.M	100S		DN300~DN400
KLST-600	6000N.M	150S		DN400~DN500

3PCS Electrical Ball Vale (Screw Thread)

Model	Size	Operating Pressure	Operating Temp.	Sealing Material
KLD671X-10E	½”	0~16~40bar	-10⁰C~+180⁰C	PTFE
	¾”
	1”
	1 ¼”
	1 ½”
	2”
	2 ½”
	3”
	4”

Electrical Wafer Butterfly Valve

Model	Orifice Size	Operating Pressure	Operating Temp.	Sealing Material
KLD971X-10E	50	0~16~40bar	-20⁰C~+135⁰C	NBR EPDM FPM PTFE
	65
	80
	100
	125
	150
	200
	250
	300

4V100 SERIES SOLENOID VALVE, PNEUMATIC CONTROL VALVE

Model	Port Size	Working Medium	Position and Way No.	Operating Temp.
4V110-M5	Air Inlet=Air Outlet=Exhaust =M5x0.8	40 Micron Filtered Air	5/2 Way	5~50⁰C
4V120-M5
4A110-M5
4A120-M5
4V130C-M5			5/3 Way
4V130E-M5
4V130P-M5
4A130C-M5
4A130E-M5
4A130P-M5
4V110-06	Air Inlet=Air Outlet=Exhaust =G1/8”		5/2 Way
4V120-06
4A110-06
4A120-06
4V130C-06			5/3 Way
4V130E-06
4V130P-06
4A130C-06
4A130E-06
4A130P-06

4V200 SERIES SOLENOID VALVE, PNEUMATIC CONTROL VALVE

Model	Port Size	Working Medium	Position and Way No.	Operating Temp.
4V210-06	Air Inlet=Air Outlet=Exhaust = G1/8”	40 Micron Filtered Air	5/2 Way	5~50⁰C
4V220-06
4V210-06
4V220-06
4V230C-06			5/3 Way
4V230E-06
4V230P-06
4A230C-06
4A230E-06
4A230P-06
4V210-08	Air Inlet=Air Outlet= G1/4” Exhaust=G1/8”		5/2 Way
4V220-08
4A210-08
4A220-08
4V230C-08			5/3 Way
4V230E-08
4V230P-08
4A230C-08
4A230E-08
4A230P-08

4V300 SERIES SOLENOID VALVE, PNEUMATIC CONTROL VALVE

Model	Port Size	Working Medium	Position and Way No.	Operating Temp.
4V310-08	Air Inlet=Air Outlet=Exhaust = G1/4”	40 Micron Filtered Air	5/2 Way	5~50⁰C
4V320-08
4A310-08
4A320-08
4V330C-08			5/3 Way
4V330E-08
4V330P-08
4A330C-08
4A330E-08
4A330P-08
4V310-10	Air Inlet=Air Outlet= G3/8” Exhaust=G1/4”		5/2 Way
4V320-10
4A310-10
4A320-10
4V330C-10			5/3 Way
4V330E-10
4V330P-10
4A330C-10
4A330E-10
4A330P-10

4V400 SERIES SOLENOID VALVE, PNEUMATIC CONTROL VALVE

Model	Port Size	Working Medium	Position and Way No.	Operating Temp.
4V410-15	Air Inlet=Air Outlet=Exhaust = G1/2”	40 Micron Filtered Air	5/2 Way	5~50⁰C
4V420-15
4A410-15
4A420-15
4V430C-15			5/3 Way
4V430E-15
4V430P-15
4A430C-15
4A430E-15
4A430P-15

VF, VZ SERIES SOLENOID VALVE

Model	Position and Way No.	Operating Pressure	Working Medium	Operating Temp.
VF3130	5/2 Way	0.15~0.8MPa	40 Micron Filtered Air	5~50⁰C
VF3230	5/2 Way
VF33(4/5)30	5/3 Way
VF5120	5/2 Way
VF5220	5/2 Way
VF53(4/5)50	5/3 Way
VZ5120	5/2 Way
VZ5220	5/2 Way
VZ53(4/5)50	5/3 Way

Q SERIES ELECTRIC CONTROL CHANGE VALVES

Model	Port Size	Port Size	Operating Pressure	Operating Temp.
Q24HD-6 / Q24HQ-6	G1/8 (M10X1)	6mm	0.2~0.8MPa	0~55⁰C
Q24HD2-6 / Q24HQ2-6
Q24HD-8 / Q24HQ-8	G1/8 (M12X1.25)	8mm
Q24HD2-8 / Q24HQ2-8
Q24HD-10 / Q24HQ-10	G3/8 (M16X1.5)	10mm
Q24HD2-10 / Q24HQ2-10
Q24HD-15 / Q24HQ-15	G1/2 (M20X1.5)	20mm
Q24HD2-15 / Q24HQ2-15

K SERIES ELECTRIC CONTROL CHANGE VALVES

Model	Port Size	Port Size	Operating Pressure	Operating Temp.
K25HD-6 / K25HD2-6	G1/8 (M10X1)	6mm	0.15~0.8MPa	0~55⁰C
K25HK-6 / K25HK2-6
K25HD-8 / K25HD2-8	G1/4 (M12X1.25)	8mm
K25HK-8 / K25HK2-8
K25HD-10 / K25HD2-10	G3/8 (M16X1.5)	10mm
K25HK-10 / K25HK2-10
K25HD-15 / K25HD2-15	G1/2 (M20X1.5)	15mm
K25HK-15 / K25HK2-15
K25HD-20 / K25HD2-20	G3/4 (M27X2)	20mm
K25HK-20 / K25HK2-20
K25HD-25 / K25HD2-25	G1 (M33X2)	25mm
K25HK-25 / K25HK2-25

Model	Port Size	Port Size	Operating Pressure	MediumTemp.
6 K35HD2 – 6Y Q2 6P	G1/8(M10X1)	6mm	0.2~0.8MPa	-5~50⁰C
8 K35HD2 – 8Y Q2 8P	G1/4(M12X1.25)	8mm
10 K35HD2 – 10Y Q2 10P	G3/8(M16X1.5)	10mm
15 K35HD2 – 15Y Q2 15P	G1/2(M20X1.5)	15mm
20 K35HD2 – 20Y Q2 20P	G3/4(M27X2)	20mm	0.15~0.8MPa
25 K35HD2 – 25Y Q2 25P	G1(M33X2)	25mm	0.15~0.8MPa

SOLENOID VALVES WITH NEW CONSTRUCTION

Model	Port Size	Turn-around Time	Operating Pressure	MediumTemp.
2630600	4mm	≤0.045	0.15~0.8MPa	-5~50⁰C
2630700
2630601
2630701
2636000	6mm
2636200
8020750
8022750
8021750
2637050	12mm
2637250
8020850
8022850
8021950

HAND-PULL VALVE

Model	Port Size	Working Medium	Working Pressure	Operating Temp.
4H210-06	G1/8” Air Inlet=Air Outlet=Exhaust=G1/8”	40 Micron Filtered Air	0~0.8MPa	0~60⁰C
4H210-08	G1/8” Air Inlet=Air Outlet=G1/4”Exhaust=G1/8”
4H230-08	G1/8” Air Inlet=Air Outlet=G1/4”Exhaust=G1/8”
4H310-08	G1/4” Air Inlet=Air Outlet=Exhaust=G1/4”
4H310-10	G1/8” Air Inlet=Air Outlet= G1/8”
4H410-15	G1/2” Air Inlet=Air Outlet=Exhaust=G1/2”

Model	Port Size	Working Medium	Working Pressure	Operating Temp.
TSV86522M S	G1/4”	40 Micron Filtered Air	0~0.8MPa	0~60⁰C
TSV98322M S

HAND-SWITCHING VALVE

Model	Port Size	Working Medium	Working Pressure	Operating Temp.
4HV-200	PT1/8	Air	0~10Kgf/cm	5~60⁰C
4HV-300	PT1/4
4HV-400	PT3/8

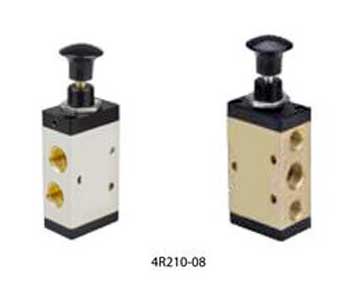

HAND-DRAW VALVE

Model	Port Size	Working Medium	Working Pressure	Operating Temp.
4R210-06	G1/8” Air Inlet=Air Outlet=Exhaust=G1/8”	40 Micron Filtered Air	5/2 Way	0~60⁰C
4R210-08	G1/8” Air Inlet=Air Outlet=G1/4”Exhaust=G1/8”
			3/2 Way
3R210-06	G1/8” Air Inlet=Air Outlet= G1/8”
3R210-08	G1/4” Air Inlet=Air Outlet=Exhaust=G1/4”

MECHANICAL VALVE

Model	Port Size	Working Medium	Position and Way No.	Operating Temp.
MSV86321	G1/8”	40 Micron Filtered Air	3/2 Way	0~60⁰C
MSV86321PP
MSV86321PPL
MSV86321TB
MSV86321LB
MSV86321PB
MSV86522EB
MSV86321R
MSV86522	G1/4”		5/2 Way
MSV86522PP
MSV86522PPL
MSV86522TB
MSV86522LB
MSV86522PB
MSV86522EB
MSV86522R
MSV98322	G1/4”		3/2 Way
MSV98322PP
MSV98322PPL
MSV98322TB
MSV98322LB
MSV98322PB
MSV98322EB
MSV98322R
JM-05	G1/4”		3/2 Way	0~60⁰C
JM-06
JM-06A
JM-07

FOOT VALVE

Model	Port Size	Working Medium	Working Pressure	Operating Temp.
4F210-08	Air Inlet=Air Outlet=Exhaust=G1/4”	40 Micron Filtered Air	5/2 Way	0~60⁰C
4F210-08L
4F210-08G
4F210-08LG			4/2 Way
FV420	Air Inlet=Air Outlet=G1/4”
			3/2 Way
FV320

ASC SERIES FLOW CONTROL VALVE

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ASC-06	G1/8”	/ Air	0~0.95MPa	0~60⁰C
ASC-08	G1/4”
ASC-10	G3/8”
ASC-15	G1/2”
RE-01	G1/8”
RE-02	G1/4”
RE-03	G3/8”
RE-04	G1/2”

QUICK EXHAUST VALVE

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
QE-01	G1/8”	/ Air	0~0.08MPa	0~60⁰C
QE-02	G1/4”
QE-03	G3/8”
QE-04	G1/2”
QE-06	G3/4”

SHUTTLE VALVE

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
ST-01	G1/8”	/ Air	0~1.0MPa	0~60⁰C
ST-02	G1/4”
ST-03	G3/8”
ST-04	G1/2”
ST-06	G3/4”
ST-08	G1”

ACCESSORIES

SC SERIES STANDARD CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
32	G1/8”	25~500	1.0~9.0Kgf/cm2	-5~70⁰C
40	G1/4”	25~800
50	G1/4”	25~1000
63	G3/8”	25~1000
80	G3/8”	25~1000
100	G1/2”	25~1000
125	G1/2”	25~1000
160	G3/4”	25~1000
200	G1/2”	25~1000

MA STAINLESS STEEL MINI CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
16	M5X0.8	25~200	1.0~9.0Kgf/cm2	-5~70⁰C
20	G1/8”	25~300
25		25~500
32		25~500
40		25~500

MLA ALUMINUM ALLOY MINI CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
16	M5X0.8	25~200	1.0~9.0Kgf/cm2	-5~70⁰C
20	G1/8”	25~300
25		25~500
32		25~500
40		25~500

DSNU SERIES ISO6432 STANDARD CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
12	M5X0.8	25~300	1.0~9.0Kgf/cm2	0~70⁰C
16	G1/8”
20
25
32
40

SI SERIES ISO6431 STANDARD CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
32	G1/8”	25~500	0.1~0.9MPa	-5~70⁰C
40	G1/4”	25~800
50	G1/4”	25~1000
63	G3/8”	25~1000
80	G3/8”	25~1000
100	G1/2”	25~1000
125	G1/2”	25~1000
160	G3/4”	25~1000
200	G3/4”	25~1000

DNC SERIES ISO6431 STANDARD CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
32	G1/8”	25,40,50,80, 100,125,160, 200,250,320, 400,500	0.1~1.0MPa	5~60⁰C
40	G1/4”
50	G1/4”
63	G3/8”
80	G3/8”
100	G1/2”

TN SERIES CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
10	M5X0.8	10~70	0.1~0.9MPa	0~70⁰C
16		10~150
20		10~150
25		10~150
32	PT1/8”	10~150

SDA COMPACT CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
12	M5X0.8	60	1.0~9.0Kgf/cm2	0~70⁰C
16		100
20		120
25
32	G1/8”	130
40
50	G1/4”
63
80	G3/8”
100

CQ2 SERIES COMPACT CYLINDER

Bore	Port Size	Standard Stroke	Operating Pressure	Operating Temp.
12	M5X0.8	5~30	1.0~9.0Kgf/cm2	5~60⁰C
16
20
25
32	G1/8”	5~100
40
50	G1/4”	10~100
63
80	G3/8”
100

MAGNETIC SWITCH

ISO6431 STANDARD CYLINDER ACCESSORIES

STANDARD CYLINDER ACCESSORIES

MINI CYLINDER ACCESSORIES

AC1000~5000 SERIES AIR FILTER COMBINATION (F.R.L COMBINATION)

Model	Port Size	Filter Precision	Operating Pressure	Operating Temp.
AC1000-M5	M5	25μm	1.0MPa	5~60⁰C
AC2000-01	G1/8”
AC3000-02	G1/4”
AC4000-04	G1/2”
AC5000-06	G3/4”
AC5000-10	G1”

AC1010~5010 SERIES AIR FILTER COMBINATION (FR.L COMBINATION)

Model	Port Size	Filter Precision	Operating Pressure	Operating Temp.
AC1010-M5	M5	25μm	1.0MPa	5~60⁰C
AC2010-01	G1/8”
AC3010-02	G1/4”
AC4010-04	G3/8”
AC5010-06	G3/4”
AC5010-10	G1”

AF1000~5000 SERIES AIR FILTER

Model	Port Size	Filter Precision	Operating Pressure	Operating Temp.
AF1000-M5	M5	25μm	1.0MPa	5~60⁰C
AF2000-01	G1/8”
AF3000-02	G1/4”
AF4000-03	G3/8”
AF5000-06	G3/4”
AF5000-10	G1”

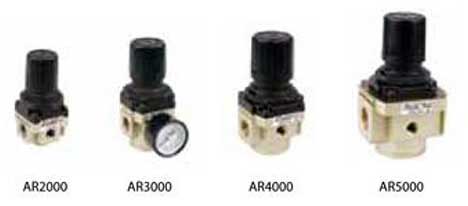

AR1000~5000 SERIES REGULATOR

Model	Port Size	Filter Precision	Operating Pressure	Operating Temp.
AR1000-M5	M5	25μm	1.0MPa	5~60⁰C
AR2000-01	G1/8”
AR3000-02	G1/4”
AR4000-03	G3/8”
AR5000-06	G3/4”
AR5000-10	G1”

AW1000~5000 SERIES FILTER & REGULATOR

Model	Port Size	Filter Precision	Operating Pressure	Operating Temp.
AW1000-M5	M5	25μm	1.0MPa	5~60⁰C
AW2000-01	G1/8”
AW3000-02	G1/4”
AW4000-03	G3/8”
AW5000-06	G3/4”
AW5000-10	G1”

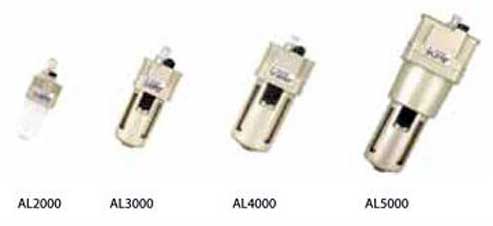

AL1000~5000 SERIES LUBRICATOR

Model	Port Size	Rated Flow	Operating Pressure	Operating Temp.
AL1000-M5	M5	95	1.0MPa	5~60⁰C
AL2000-01	G1/8”	800
AL3000-02	G1/4”	1700
AL4000-03	G3/8”	5000
AL5000-06	G3/4”	7000
AL5000-10	G1”	7000

AC, BC SERIES THREE-POINT COMBINATION (F.R.L COMBINATION)

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AC1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AC2000	G1/4”
BC2000	G1/4”
BC3000	G3/8”
BC4000	G1/2”

AFC, BFC SERIES TWO-POINT COMBINATION (FR.L COMBINATION)

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AFC1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AFC2000	G1/4”
BFC2000	G1/4”
BFC3000	G3/8”
BFC4000	G1/2”

AF, BF SERIES FILTER

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AF1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AF2000	G1/4”
BF2000	G1/4”
BF3000	G3/8”
BF4000	G1/2”

AR, BR SERIES REGULATOR

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AR1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AR2000	G1/4”
BR2000	G1/4”
BR3000	G3/8”
BR4000	G1/2”

AFR, BFR SERIES FILTER & REGULATOR

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AFR1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AFR2000	G1/4”
BFR2000	G1/4”
BFR3000	G3/8”
BFR4000	G1/2”

AL, BL SERIES LUBRICATOR

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
AL1500	G1/8”	Air	0.05~0.85MPa	5~60⁰C
AL2000	G1/4”
BL2000	G1/4”
BL3000	G3/8”
BL4000	G1/2”

KLHFC AIR FILTER COMBINATION (F.R.L COMBINATION)

Size	Port Size	Working Medium	Design	Assembly Position
Micro	M5	Compressed Air	Filter regulator with/ without pressure gauge	Vertical ±5⁰
	G1/8
	QS6
Mini	G1/8		Proportional standard mist lubricator
Midi	G3/8
Maxi	G3/4

KLHFR SERIES FILTER & REGULATOR

Size	Port Size	Working Medium	Design	Assembly Position
Micro	M5	Compressed Air	Filter regulator with/ without pressure gauge	Vertical ±5⁰
	G1/8
	QS6
Mini	G1/8		Proportional standard mist lubricator
Midi	G3/8
Maxi	G3/4

KLHR SERIES REGULATOR

Size	Port Size	Working Medium	Design		Assembly Position
Micro	M5	Compressed Air	Directly actuated diaphragm regulator		Any
	G1/8
	QS6
Mini	G1/8	Filtered compressed air, lubricated, grade of filtration 40μm	Directly actuated diaphragm regulator
Midi	G3/8
Maxi	G3/4		Pilot actuated piston regulator	Directly actuated diaphragm regulator

KLHF SERIES FILTER

Size	Port Size	Working Medium	Design	Assembly Position
Micro	M5	Compressed Air	Sintered filter with centrifugal separation	Vertical ±5⁰
	G1/8
	QS6
Mini	G1/8		Sintered filter with centrifugal separation
Midi	G3/8
Maxi	G3/4

KLHL SERIES LUBRICATOR

Size	Port Size	Working Medium	Design	Assembly Position
Micro	M5	Filtered compressed air, unlubricated grade of filtration 5μm	Proportional standard mist lubricator	Vertical ±5⁰
	G1/8
	QS6
Mini	G1/8	Filtered compressed air, unlubricated grade of filtration 40μm
Midi	G3/8
Maxi	G3/4

KLQTYH SERIES HIGH PRESSURE REGULATOR

Model	Port Size	Working Medium	Operating Pressure	Operating Temp.
KLQTYH-08	G1/4	Air	0.05~3.5MPa	-25~+80⁰C
KLQTYH-10	G3/8
KLQTYH-15	G1/2
KLQTYH-20	G3/4
KLQTYH-25	G1

PNEUMATIC TUBE FITTING

Model
PC04-M5	PC06-03	PC12-01
PC04-M6	PC08-01	PC12-02
PC04-01	PC08-02	PC12-03
PC04-02	PC08-03	PC12-04
PC04-03	PC08-04	PC14-03
PC06-M5	PC10-01	PC14-04
PC06-M6	PC10-02	PC16-03
PC06-01	PC10-03	PC16-04
PC06-02	PC10-04

POC

Model
POC04-M5	POC06-03	POC12-01
POC04-M6	POC08-01	POC12-02
POC04-01	POC08-02	POC12-03
POC04-02	POC08-03	POC12-04
POC04-03	POC08-04	POC14-03
POC06-M5	POC10-01	POC14-04
POC06-M6	POC10-02	POC16-03
POC06-01	POC10-03	POC16-04
POC06-02	POC10-04

PCF

Model
PCF04-01	PCF08-03	PCF12-03
PCF04-02	PCF08-04	PCF12-04
PCF04-03	PCF10-01	PCF14-03
PCF06-01	PCF10-02	PCF14-04
PCF06-02	PCF10-03	PCF16-03
PCF06-03	PCF10-04	PCF16-04
PCF08-01	PCF12-01
PCF08-02	PCF12-02

Model
PL04-M5	PL06-03	PL12-01
PL04-M6	PL08-01	PL12-02
PL04-01	PL08-02	PL12-03
PL04-02	PL08-03	PL12-04
PL04-03	PL08-04	PL14-03
PL06-M5	PL10-01	PL14-04
PL06-M6	PL10-02	PL16-03
PL06-01	PL10-03	PL16-04
PL06-02	PL10-04

PLF

Model
PLF04-01	PLF08-03	PLF12-03
PLF04-02	PLF08-04	PLF12-04
PLF04-03	PLF10-01	PLF14-03
PLF06-01	PLF10-02	PLF14-04
PLF06-02	PLF10-03	PLF16-03
PLF06-03	PLF10-04	PLF16-04
PLF08-01	PLF12-01
PLF08-02	PLF12-02

PLH

Model
PLH04-M5	PLH06-02	PLH10-03
PLH04-M6	PLH06-03	PLH10-04
PLH04-01	PLH08-01	PLH12-01
PLH04-02	PLH08-02	PLH12-02
PLH04-03	PLH08-03	PLH12-03
PLH06-M5	PLH08-04	PLH12-04
PLH06-M6	PLH10-01
PLH06-01	PLH10-02

PLL

Model
PLL04-M5	PLL06-03	PLL12-01
PLL04-M6	PLL08-01	PLL12-02
PLL04-01	PLL08-02	PLL12-03
PLL04-02	PLL08-03	PLL12-04
PLL04-03	PLL08-04	PLL14-03
PLL06-M5	PLL10-01	PLL14-04
PLL06-M6	PLL10-02	PLL16-03
PLL06-01	PLL10-03	PLL16-04
PLL06-02	PLL10-04

Model
PT04-M5	PT06-03	PT12-01
PT04-M6	PT08-01	PT12-02
PT04-01	PT08-02	PT12-03
PT04-02	PT08-03	PT12-04
PT04-03	PT08-04	PT14-03
PT06-M5	PT10-01	PT14-04
PT06-M6	PT10-02	PT16-03
PT06-01	PT10-03	PT16-04
PT06-02	PT10-04

PTF

Model
PTF04-01	PTF08-03	PTF12-03
PTF04-02	PTF08-04	PTF12-04
PTF04-03	PTF10-01	PTF14-03
PTF06-01	PTF10-02	PTF14-04
PTF06-02	PTF10-03	PTF16-03
PTF06-03	PTF10-04	PTF16-04
PTF08-01	PTF12-01
PTF08-02	PTF12-02

PST

Model
PST04-M5	PST06-03	PST12-01
PST04-M6	PST08-01	PST12-02
PST04-01	PST08-02	PST12-03
PST04-02	PST08-03	PST12-04
PST04-03	PST08-04	PST14-03
PST06-M5	PST10-01	PST14-04
PST06-M6	PST10-02	PST16-03
PST06-01	PST10-03	PST16-04
PST06-02	PST10-04

PWT

Model
PWT04-M5	PWT06-03	PWT12-01
PWT04-M6	PWT08-01	PWT12-02
PWT04-01	PWT08-02	PWT12-03
PWT04-02	PWT08-03	PWT12-04
PWT04-03	PWT08-04	PWT14-03
PWT06-M5	PWT10-01	PWT14-04
PWT06-M6	PWT10-02	PWT16-03
PWT06-01	PWT10-03	PWT16-04
PWT06-02	PWT10-04

Model
PH04-M5	PH06-03	PH12-01
PH04-M6	PH08-01	PH12-02
PH04-01	PH08-02	PH12-03
PH04-02	PH08-03	PH12-04
PH04-03	PH08-04	PH14-03
PH06-M5	PH10-01	PH14-04
PH06-M6	PH10-02	PH16-03
PH06-01	PH10-03	PH16-04
PH06-02	PH10-04

PHF

Model
PHF04-01	PHF08-03	PHF12-03
PHF04-02	PHF08-04	PHF12-04
PHF04-03	PHF10-01	PHF14-03
PHF06-01	PHF10-02	PHF14-04
PHF06-02	PHF10-03	PHF16-03
PHF06-03	PHF10-04	PHF16-04
PHF08-01	PHF12-01
PHF08-02	PHF12-02

PMF

Model
PMF04-01	PMF08-03	PMF12-03
PMF04-02	PMF08-04	PMF12-04
PMF04-03	PMF10-01	PMF14-03
PMF06-01	PMF10-02	PMF14-04
PMF06-02	PMF10-03	PMF16-03
PMF06-03	PMF10-04	PMF16-04
PMF08-01	PMF12-01
PMF08-02	PMF12-02

PKB

Model
PKB04-M5	PKB06-01
PKB04-M6	PKB06-02
PKB04-01	PKB06-03
PKB04-02	PKB08-01
PKB04-03	PKB08-02
PKB06-M5	PKB08-03
PKB06-M6	PKB08-04

PKD

Model
PKD 06-04-01
PKD 08-04-02
PKD 08-06-02
PKD 10-08-03

PUC

Model
PUC04
PUC05
PUC06
PUC08
PUC10
PUC12
PUC14
PUC16

PUL

Model
PUL04
PUL05
PUL06
PUL08
PUL10
PUL12
PUL14
PUL16

PUT

Model
PUT04
PUT05
PUT06
PUT08
PUT10
PUT12
PUT14
PUT16

Model
PY04
PY05
PY06
PY08
PY10
PY12
PY14
PY16

PZA

Model
PZA04
PZA06
PZA08
PZA10
PZA12

PMM

Model
PMM04
PMM06
PMM08
PMM10
PMM12
PMM16

PLM

Model
PLM04
PLM06
PLM08
PLM10
PLM12
PLM16

Model
PK04
PK06
PK08

Model
PG06-04
PG08-04
PG08-06
PG10-06
PG10-08
PG12-08
PG12-10

Model
PW06-04
PW08-04
PW08-06
PW10-06
PW10-08
PW12-08
PW12-10

Model
PP04
PP06
PP08
PP10
PP12

PGJ

Model
PGJ 06-04
PGJ 08-04
PGJ 08-06
PGJ 10-06
PGJ 10-08
PGJ 12-06
PGJ 12-08
PGJ 12-10

PLJ

Model
PLJ04
PLJ06
PLJ08
PLJ10
PLJ12
PLJ16

PLHJ

Model
PLHJ04
PLHJ06
PLHJ08
PLHJ10
PLHJ12

PYJ

Model
PYJ04
PYJ06
PYJ08
PYJ10
PYJ12

PKJ

Model
PKJ04
PKJ 06
PKJ 08

PLGJ

Model
PLGJ 06-04
PLGJ 08-04
PLGJ 08-06
PLGJ 10-06
PLGJ 10-08
PLGJ 12-08
PLGJ 12-10
PLGJ 16-12

PLHGJ

Model
PLHGJ 06-04
PLHGJ 08-04
PLHGJ 08-06
PLHGJ 10-06
PLHGJ 10-08
PLHGJ 12-08
PLHGJ 12-10
PLHGJ 16-12

PYGJ

Model
PYGJ 06-04
PYGJ 08-04
PYGJ 08-06
PYGJ 10-06
PYGJ 10-08
PYGJ 12-08
PYGJ 12-10

SPEED CONTROLLERS

NSE

Model
NSE04-M5	NSE08-03
NSE04-M6	NSE08-04
NSE04-01	NSE10-01
NSE04-02	NSE10-02
NSE04-03	NSE10-03
NSE06-M5	NSE10-04
NSE06-M6	NSE12-01
NSE06-01	NSE12-02
NSE06-02	NSE12-03
NSE06-03	NSE12-04
NSE08-01	NSE16-03
NSE08-02	NSE16-04

NSF

Model
NSF04
NSF06
NSF08
NSF10
NSF12

NSFSS

Model
NSFSS01-01
NSFSS02-02
NSFSS03-03
NSFSS04-04

NSFSF

Model
NSFSF04-01	NSFSF10-02
NSFSF06-01	NSFSF10-03
NSFSF06-02	NSFSF10-04
NSFSF08-01	NSFSF12-02
NSFSF08-02	NSFSF12-03
NSFSF08-03	NSFSF12-04

HAND VALVES

HVFF

Model
HVFF06-06
HVFF08-06
HVFF08-08
HVFF10-08
HVFF10-10
HVFF12-10
HVFF12-12

HVSS

Model
HVSS01-01
HVSS02-01
HVSS02-02
HVSS03-02
HVSS03-03
HVSS04-03
HVSS04-04

HVSF

Model
HVSF06-01
HVSF06-02
HVSF06-03
HVSF08-01
HVSF08-02
HVSF08-03
HVSF10-02
HVSF10-03
HVSF12-03
HVSF12-04

HVFS

Model
HVFS06-01
HVFS06-02
HVFS06-03
HVFS08-01
HVFS08-02
HVFS08-03
HVFS10-02
HVFS10-03
HVFS12-03
HVFS12-04

METAL COUPLER

Model
20SH
30SH
40SH

Model
20SM
30SM
40SM

Model
20SF
30SF
40SF

Model
20SP
30SP
40SP

Model
20PH
30PH
40PH

Model
20PM
30PM
40PM

Model
20PF
30PF
40PF

Model
20PP
30PP
40PP

METAL FITTINGS

MPC

Model
MPC03-M3	MPC06-01	MPC10-04
MPC03-M5	MPC06-02	MPC12-02
MPC04-M5	MPC08-01	MPC12-03
MPC04-01	MPC08-02	MPC12-04
MPC04-02	MPC08-03	MPC14-03
MPC05-M5	MPC08-04	MPC14-04
MPC05-01	MPC10-01	MPC16-03
MPC05-02	MPC10-02	MPC16-04
MPC06-M5	MPC10-03

MPOC

Model
MPOC03-M3	MPOC06-01	MPOC10-04
MPOC03-M5	MPOC06-02	MPOC12-02
MPOC04-M5	MPOC08-01	MPOC12-03
MPOC04-01	MPOC08-02	MPOC12-04
MPOC04-02	MPOC08-03	MPOC14-03
MPOC05-M5	MPOC08-04	MPOC14-04
MPOC05-01	MPOC10-01	MPOC16-03
MPOC05-02	MPOC10-02	MPOC16-04
MPOC06-M5	MPOC10-03

MPCF

Model
MPCF04-01	MPCF08-03	MPCF12-03
MPCF04-02	MPCF08-04	MPCF12-04
MPCF05-01	MPCF10-01	MPCF14-03
MPCF05-02	MPCF10-02	MPCF14-04
MPCF06-01	MPCF10-03	MPCF16-03
MPCF06-02	MPCF10-04	MPCF16-04
MPCF08-01	MPCF12-01
MPCF08-02	MPCF12-02

MPL

Model
MPL03-M3	MPL06-01	MPL10-04
MPL03-M5	MPL06-02	MPL12-02
MPL04-M5	MPL08-01	MPL12-03
MPL04-01	MPL08-02	MPL12-04
MPL04-02	MPL08-03	MPL14-03
MPL05-M5	MPL08-04	MPL14-04
MPL05-01	MPL10-01	MPL16-03
MPL05-02	MPL10-02	MPL16-04
MPL06-M5	MPL10-03

MPLN

Model
MPLN03-M3	MPLN06-01	MPLN10-04
MPLN03-M5	MPLN06-02	MPLN12-02
MPLN04-M5	MPLN08-01	MPLN12-03
MPLN04-01	MPLN08-02	MPLN12-04
MPLN04-02	MPLN08-03	MPLN14-03
MPLN05-M5	MPLN08-04	MPLN14-04
MPLN05-01	MPLN10-01	MPLN16-03
MPLN05-02	MPLN10-02	MPLN16-04
MPLN06-M5	MPLN10-03

MPLL

Model
MPLL04-M5	MPLL08-01	MPLL12-02
MPLL04-01	MPLL08-02	MPLL12-03
MPLL04-02	MPLL08-03	MPLL12-04
MPLL05-M5	MPLL08-04	MPLL14-03
MPLL05-01	MPLL10-01	MPLL14-04
MPLL05-02	MPLL10-02	MPLL16-03
MPLL06-M5	MPLL10-03	MPLL16-04
MPLL06-01	MPLL10-04
MPLL06-02	MPLL12-01

MPLF

Model
MPLF04-01	MPLF08-03	MPLF12-03
MPLF04-02	MPLF08-04	MPLF12-04
MPLF05-01	MPLF10-01	MPLF14-03
MPLF05-02	MPLF10-02	MPLF14-04
MPLF06-01	MPLF10-03	MPLF16-03
MPLF06-02	MPLF10-04	MPLF16-04
MPLF08-01	MPLF12-01
MPLF08-02	MPLF12-02

MPT

Model
MPT04-M5	MPT06-02	MPT10-04
MPT04-01	MPT08-01	MPT12-02
MPT04-02	MPT08-02	MPT12-03
MPT05-M5	MPT08-03	MPT12-04
MPT05-01	MPT08-04	MPT14-03
MPT05-02	MPT10-01	MPT14-04
MPT06-M5	MPT10-02	MPT16-03
MPT06-01	MPT10-03	MPT16-04

MPD

Model
MPD04-M5	MPD06-02	MPD10-04
MPD04-01	MPD08-01	MPD12-02
MPD04-02	MPD08-02	MPD12-03
MPD05-M5	MPD08-03	MPD12-04
MPD05-01	MPD08-04	MPD14-03
MPD05-02	MPD10-01	MPD14-04
MPD06-M5	MPD10-02	MPD16-03
MPD06-01	MPD10-03	MPD16-04

MPX

Model
MPX04-M5	MPX06-02	MPX10-04
MPX04-01	MPX08-01	MPX12-02
MPX04-02	MPX08-02	MPX12-03
MPX05-M5	MPX08-03	MPX12-04
MPX05-01	MPX08-04	MPX14-03
MPX05-02	MPX10-01	MPX14-04
MPX06-M5	MPX10-02	MPX16-03
MPX06-01	MPX10-03	MPX16-04

MPMF

Model
MPMF04-01	MPMF08-03	MPMF12-03
MPMF04-02	MPMF08-04	MPMF12-04
MPMF05-01	MPMF10-01	MPMF14-03
MPMF05-02	MPMF10-02	MPMF14-04
MPMF06-01	MPMF10-03	MPMF16-03
MPMF06-02	MPMF10-04	MPMF16-04
MPMF08-01	MPMF12-01
MPMF08-02	MPMF12-02

MPCJ

Model
MPCJ04-M5	MPCJ06-02	MPCJ10-04
MPCJ04-01	MPCJ08-01	MPCJ12-02
MPCJ04-02	MPCJ08-02	MPCJ12-03
MPCJ05-M5	MPCJ08-03	MPCJ12-04
MPCJ05-01	MPCJ08-04	MPCJ14-03
MPCJ05-02	MPCJ10-01	MPCJ14-04
MPCJ06-M5	MPCJ10-02	MPCJ16-03
MPCJ06-01	MPCJ10-03	MPCJ16-04

MPCFJ

Model
MPCFJ04-01	MPCFJ08-02	MPCFJ12-01	MPCFJ16-04
MPCFJ04-02	MPCFJ08-03	MPCFJ12-02
MPCFJ05-01	MPCFJ08-04	MPCFJ12-03
MPCFJ05-02	MPCFJ10-01	MPCFJ12-04
MPCFJ06-01	MPCFJ10-02	MPCFJ14-03
MPCFJ06-02	MPCFJ10-03	MPCFJ14-04
MPCFJ08-01	MPCFJ10-04	MPCFJ16-03

MPH

Model
MPH04-M5	MPH06-01	MPH10-02	MPH14-03
MPH04-01	MPH06-02	MPH10-03	MPH14-04
MPH04-02	MPH08-01	MPH10-04	MPH16-03
MPH05-M5	MPH08-02	MPH12-01	MPH16-04
MPH05-01	MPH08-03	MPH12-02
MPH05-02	MPH08-04	MPH12-03
MPH06-M5	MPH10-01	MPH12-04

MUFFLERS

BSL

Model
M5”	¾”
1/8”	1”
¼”	1 ¼”
3/8”	1 ½”
½”	2”

BSLM

Model
1/8”
¼”
3/8”
½”
¾”
1”

BEB

Model
1/8”	1”
¼”	M5
3/8”
½”
¾”

Model
1/8”
¼”
3/8”
½”
¾”
1”

SCQ

Model
1/8”
¼”
3/8”
½”

SET

Model
1/8”
¼”
3/8”
½”

PSU

Model
1/8”
¼”
3/8”
½”

Model
1/8”
¼”
3/8”
½”

PU TUBE

Model
PU4X2.5/200M
PU5X3/200M
PU8X6/100M*
PU 10X7/100M*
PU 10X8/100M*
PU 12X9/100M*
PU ¼-200M
PU5/16-100M
PU3/8-100M
PU1/2-100M

PA6.PA12 NYLON TUBE

Model
PA4X2.5/200M
PA8X6/100M
PA 10X8/100M
PA 12X9/100M
PA 12X 10/100M
PA 16X 12/100M
PA1/4-200M
PA5/16-100M
PA3/8-100M
PA1/2-100M

PE TUBE

Model
PE4X2.5/200M
PE8X6/100M
PE 10X8/100M
PE 12X9/100M
PE 12X 10/100M
PE 16X 12/100M
PE1/4-200M
PE5/16-100M
PE3/8-100M
PE1/2-100M

PUBE SOLID ARTICLE

Model
PUBE04/200M
PUBE05/200M
PUBE06/200M
PUBE08/100M
PUBE10/100M

PU SPIRAL TUBE

Model
C L6X4
C L8X5
C L10X6.5
C L12X8

PA SPIRAL TUBE

Model
PACLW 1/2

AIR GUNS

TUBE CUTTER

Industries We Serve

Oil & Gas Sector
Chemical Industry
Pharmaceutical Industry
Water Treatment Industry
Paper Pulp industry
Fertilizer Industry
Food Processing Companies
Engineering Works
Fabricators
Shipbuilding & Marine
Steam & Power Generation
Refrigeration & Air Conditioning

We offer both standard and customized solutions of reputed international brands like PI control Europe, Gems, ESI, Krohne, ABB, Honeywell, Dwyer, and others. We are serving Worldwide Clients based in Dubai, United Arab Emirates UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Iraq, Kurdistan, Yemen, Lebanon, Jordan, Sudan, Egypt. Nigeria, Russia, Kazakhstan, Armenia, Azerbaijan, Turkmenistan. We are Looking forward to fulfilling your expectations with the best of our product range. Our Excellent Logistics set up supports shipping of Process Instruments to major Cities Such As Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Doha, Muscat, Kuwait, Riyadh, Jeddah, Dhahran, Jubail And Yanbu, Baghdad, Basra, Mosul, Erbil, Sulaymaniyah, Manama, Beirut, Amman, Sanaa, Khartoum, Abuja, Moscow, Ashgabat, Almaty, Aktau, Yerevan, Baku.We will be pleased to serve your requirements with best of our products.
