Brunton Wire Ropes
by Gulf Oil & Gas International, UAE
Gulf Oil & Gas International, UAE is a trusted supplier of Brunton Wire Ropes, delivering high-tensile, precision-engineered wire ropes for lifting, rigging, and industrial use. We offer a wide range of galvanized and un-galvanized ropes, ideal for cranes, construction, mining, and oilfield drilling .Whether it’s for steel wire ropes for cranes or drill lines for oilfield use, our supply network ensures quick availability and quality assurance.
Brunton Wire Ropes
These wire ropes are manufactured to meet international lifting and rigging standards and are engineered for consistent reliability under high-stress conditions.
General purpose Wire Rope
Un-galvanized Wire Rope
Crane Wire Rope
Drill Lines Wire Rope
General Purpose Wire Ropes – 6x19
WSC, RHRL, 1960, A0 Lubricated
Engineered for reliability in everyday industrial operations:
| Diameter (mm) | Weight (kg/100m) | MBL (kN) |
| 6 | 14.53 | 25.1 |
| 8 | 26.85 | 44.7 |
| 9 | 33.34 | 56.5 |
| 10 | 41.68 | 69.8 |
| 12 | 59.81 | 100.0 |
General Purpose Wire Ropes – 6x36
IWRC, RHRL, 1960, A2 Lubricated
Ideal for heavy-duty general applications
| Diameter (mm) | Weight (kg/100m) | MBL (kN) |
| 13 | 70.00 | 118.0 |
| 14 | 80.70 | 137.0 |
| 16 | 104.67 | 179.0 |
| 18 | 135.71 | 226.0 |
| 19 | 149.68 | 252.0 |
| 20 | 163.59 | 279.0 |
| 22 | 199.86 | 338.0 |
| 24 | 240.58 | 402.0 |
| 26 | 281.36 | 472.0 |
| 28 | 326.45 | 547.0 |
| 30 | 376.47 | 628.0 |
| 32 | 422.82 | 715.0 |
| 36 | 540.52 | 904.0 |
| 38 | 597.41 | 1010.0 |
| 42 | 737.25 | 1231.0 |
| 44 | 805.45 | 1350.0 |
| 48 | 965.76 | 1610.0 |
| 52 | 1124.65 | 1890.0 |
| 56 | 1315.89 | 2190.0 |
| 64 | 1708.10 | 2860.0 |
Un-galvanized 6x36
IWRC, RHRL, 1960, A2 Lubricated
High breaking load with A2-grade lubrication
| Diameter (mm) | Weight (kg/100m) | MBL (kN) |
| 13 | 70.00 | 118.0 |
| 14 | 80.70 | 137.0 |
| 16 | 104.67 | 179.0 |
| 19 | 149.68 | 252.0 |
| 22 | 199.86 | 338.0 |
| 25.4 | 270.25 | 460.0 |
| 28 | 326.45 | 547.0 |
| 32 | 422.82 | 715.0 |
Crane Ropes – 19x7
WSC, RHRL, 1960, A2 Lubricated, For Demanding Lift Requirements
Specifically designed for lifting cranes and winching applications
| Diameter (mm) | Weight (kg/100m) | MBL (kN) |
| 6 | 15.25 | 25.0 |
| 8 | 27.19 | 45.0 |
| 10 | 42.64 | 70.0 |
| 12 | 61.63 | 101.0 |
| 13 | 72.06 | 118.0 |
| 14 | 83.57 | 137.0 |
| 16 | 109.66 | 180.0 |
| 18 | 138.30 | 226.0 |
| 19 | 155.19 | 253.0 |
| 20 | 171.57 | 279.0 |
| 22 | 207.23 | 339.0 |
Crane Ropes – 35x7
Compacted, WSC, RHLL, 1960, A2 Lubricated, For Demanding Lift Requirements
Compacted ropes for smoother drum spooling
| Diameter (mm) | Weight (kg/100m) | MBL (kN) |
| 10 | 50.23 | 90.5 |
| 12 | 72.92 | 131.0 |
| 13 | 85.08 | 155.0 |
| 14 | 100.03 | 180.0 |
| 16 | 131.25 | 233.0 |
| 19 | 185.14 | 331.0 |
| 20 | 203.70 | 372.0 |
| 22 | 246.53 | 444.0 |
| 24 | 294.02 | 531.0 |
| 25 | 318.12 | 576.0 |
| 26 | 345.31 | 621.0 |
| 28 | 399.02 | 720.0 |
| 30 | 454.29 | 827.0 |
| 32 | 517.85 | 944.0 |
Drill Lines – Un-galvanized 6x19S
IWRC, RHRL, EIPS, C Lubricated, Built for Oil & Gas Rigs
Perfect for drill lines in harsh environments
Un-galvanized; supplied in 2500 / 5000 / 7500 ft lengths
| Diameter (inches) | Weight (kg/100m) | MBL (kN) |
| 1" | 275.0 | 460.0 |
| 1 1/8" | 348.0 | 578.0 |
| 1 1/4" | 430.0 | 711.0 |
| 1 3/8" | 521.0 | 854.0 |
| 1 1/2" | 619.0 | 1010.0 |
| 1 5/8" | 726.0 | 1170.0 |
Gulf Oil & Gas International Reliable choice for Lifting Solutions
- Large inventory of lifting, crane, and drill ropes with critical wire counts and diameters
- Custom lengths and lubrication options (A0, A2, C) available

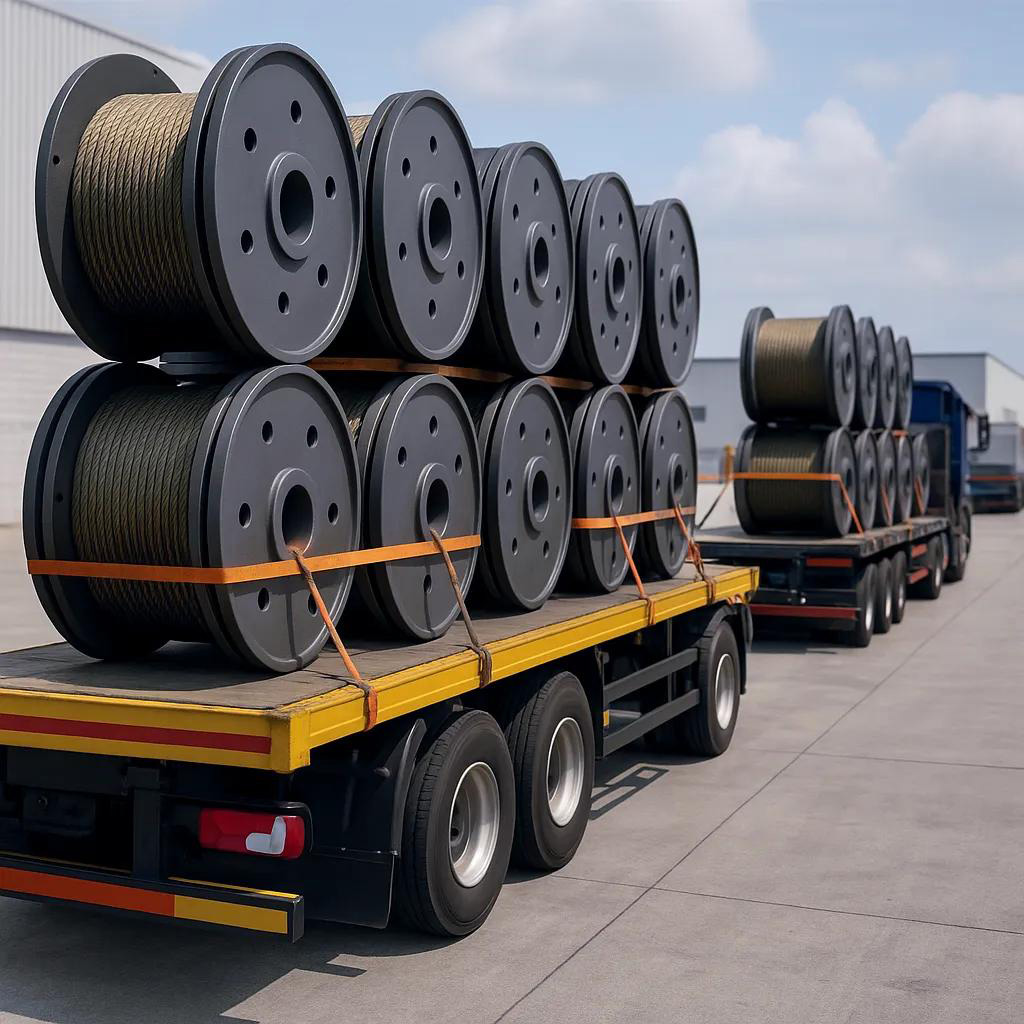

- Fast-track supply and logistics across UAE, GCC, and Middle East
- Trusted partner across industries: Oil & Gas, Construction, Marine, Mining

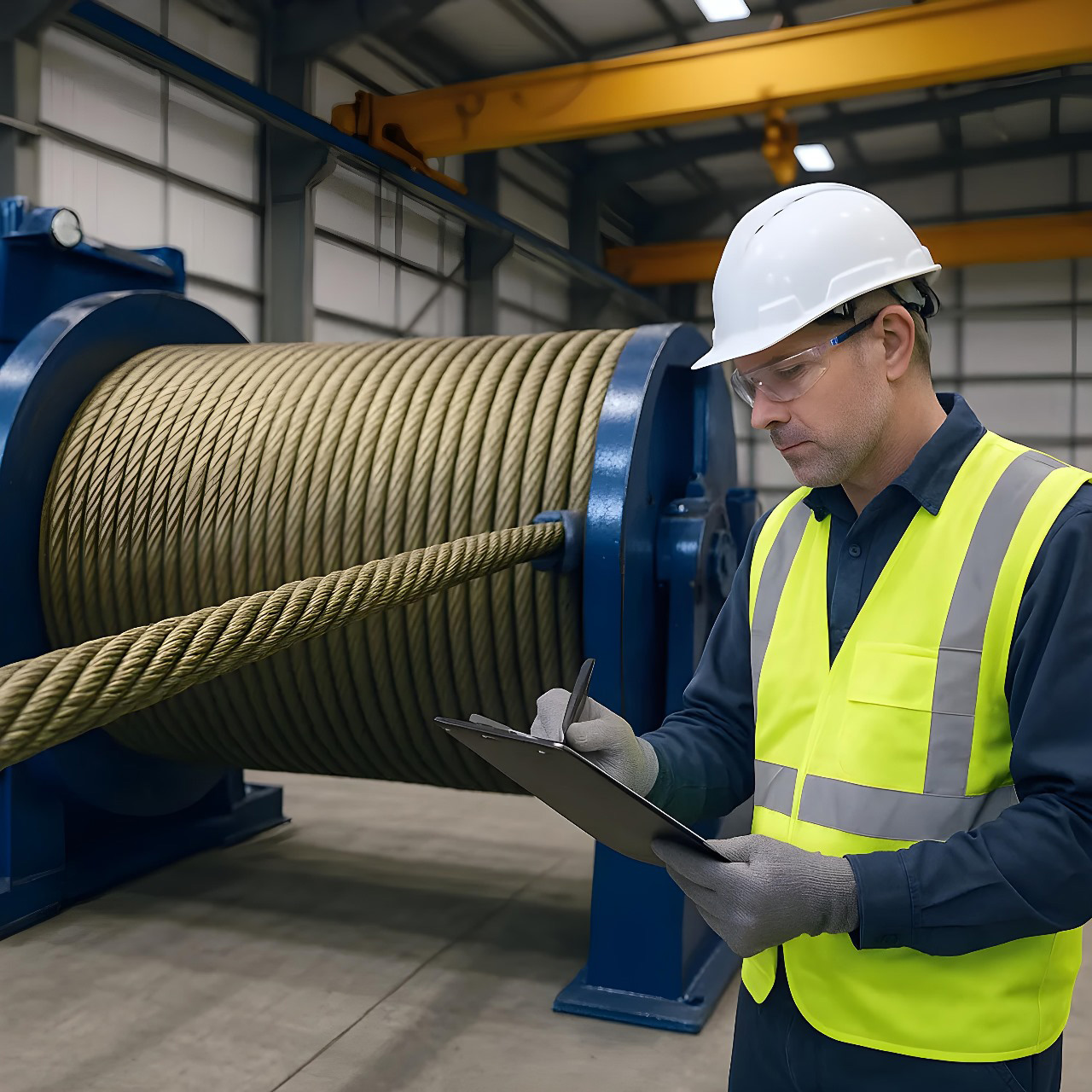

Quality Assurance & Testing Excellence
- Every rope batch undergoes rigorous load testing, compliance checks, and dimensional verification by calibrated instrumentation.
- ISO-certified labs use digital tools and load testing to ensure every wire rope meets international standards like EIPS.
- Visible traceability tags accompany each coil, ensuring full auditability from production to site deployment.
Industrial Applications of Brunton Wire Ropes
Where Our Ropes Are Used
Oil & gas drilling rigs
Marine and offshore hoisting
Mining and construction cranes
Power plant maintenance

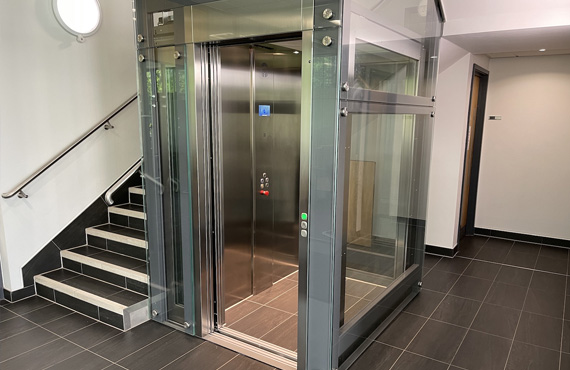

Idustrial elevators and winch systems

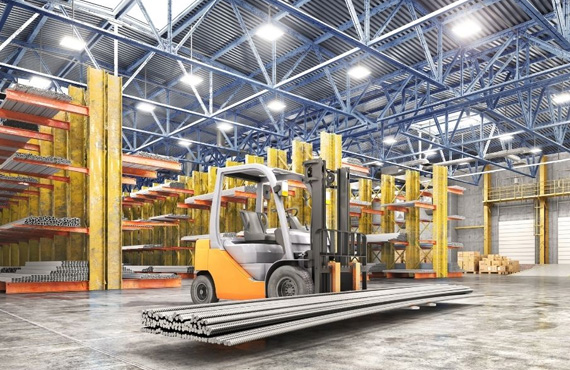

General material handling equipment
