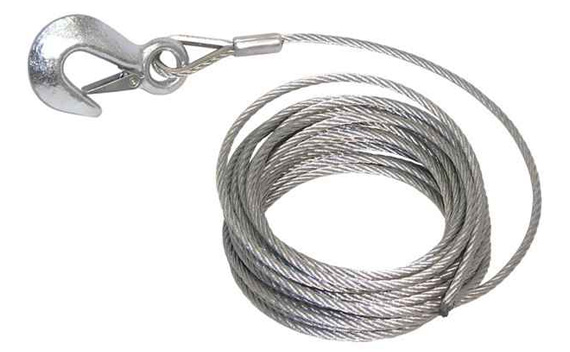

Wire Rope Slings

GOI is committed to offer high quality range of Material Handling products. The offered rope is manufactured using sophisticated machines and validation check points during production in compliance with set industry standards. These ropes are strictly checked on different quality parameters to assure flawless quality at user’s end.

Max. Safe Working Load in kg for Single part Slings
Min. Rope size	Vertical Lift	Basket Lift	Choker Lift
mm	kg	kg	kg
3	70	140	50
4	130	260	100
5	200	400	150
6	250	500	190
8	550	1100	410
9	670	1340	500
10	800	1600	600
11	1000	2000	750
12	1200	2400	900
13	1400	2800	1050
14	1750	3500	1300
16	2000	4000	1500
18	2500	5000	1875
19	3000	6000	2250
20	3300	6600	2250
22	4000	8000	3000
24	4600	9200	3450
25	5000	10000	3750
29	6500	13000	4875
32	8000	16000	6000
35	9200	18400	6900
36	10400	20800	7800
38	12000	24000	9000
40	12700	25400	9525
44	16700	33400	12525
48	20000	40000	15000
52	23000	46000	17250

Steel Wire Ropes Slings

Various available options are

Pressed Steel wire rope slings.
Pressed steel twisted wire rope slings.
Spliced steel wire rope slings.
Cast slings bind slings nontie steel wire rope slings.
(Range 5 mm to 52 mm Diameter)

Nom. Dia	Mass 6 x 19 & kg / 100 Mtrs.		Mass 6 x 19 S6 x 19F kg / 100 Mtrs.
MM	FMC	IWRC	FMC	IWRC
5	8.65	9.52	-	-
6	12.5	13.7	-	-
8	22.1	24.4	24.3	26
9	28.0	30.8	30.8	33
10	34.6	38.1	38.0	41
11	41.9	46.1	46.0	50
12	49.8	54.8	54.7	60
13	58.5	64.4	64.3	70
14	67.6	74.6	74.5	82
15	77.8	85.8	85.5	94
16	88.6	97.4	97.3	107
17	100	110	110	121
19	112	123	123	139
19	125	13	137	151
20	138	152	152	167
22	167	184	184	202
24	199	219	219	241
25	216	238	238	261
26	234	257	257	283
28	271	298	298	328
29	291	320	320	352
30	312	343	342	376
32	354	390	389	428
34	400	440	440	484
35	424	466	466	512
36	448	493	493	542
38	500	550	549	604
40	554	609	608	669
42	611	672	670	738
44	670	737	736	810
46	733	805	805	885
48	798	877	876	964
50	865	951	950	1046
52	936	1029	1028	1131

Endless Rope Slings

We hold expertise in offering our clients a distinct range of Endless Rope Slings. Obtained from the vendors of high reputation which ensures quality offerings of this product. Our efficient distribution channel help us to provide this product in most effective prices due in stipulated period of time-frame.

Max. Safe Working Load in kg for Double part Slings
Min. Rope size	Vertical Lift	Basket Lift	Choker Lift
mm	kg	kg	kg
3	140	280	100
4	260	520	200
5	400	800	300
6	500	1000	380
8	1100	2200	820
9	1340	2680	1000
10	1600	3200	1200
11	2000	4000	1500
12	2400	4800	1800
13	2800	5600	2100
14	3500	7000	2600
16	4000	8000	3000
18	5000	10000	3750
19	6000	12000	4500
20	6600	13200	4950
22	8000	16000	6000
24	9200	18400	6900
25	10000	20000	7500
29	13000	26000	9750
32	16000	32000	12000
35	16400	32800	13800
36	20800	41600	15600
38	24000	48000	18000
40	25400	50800	19050
44	33400	66800	25050
48	40000	80000	30000
52	46000	92000	34500
