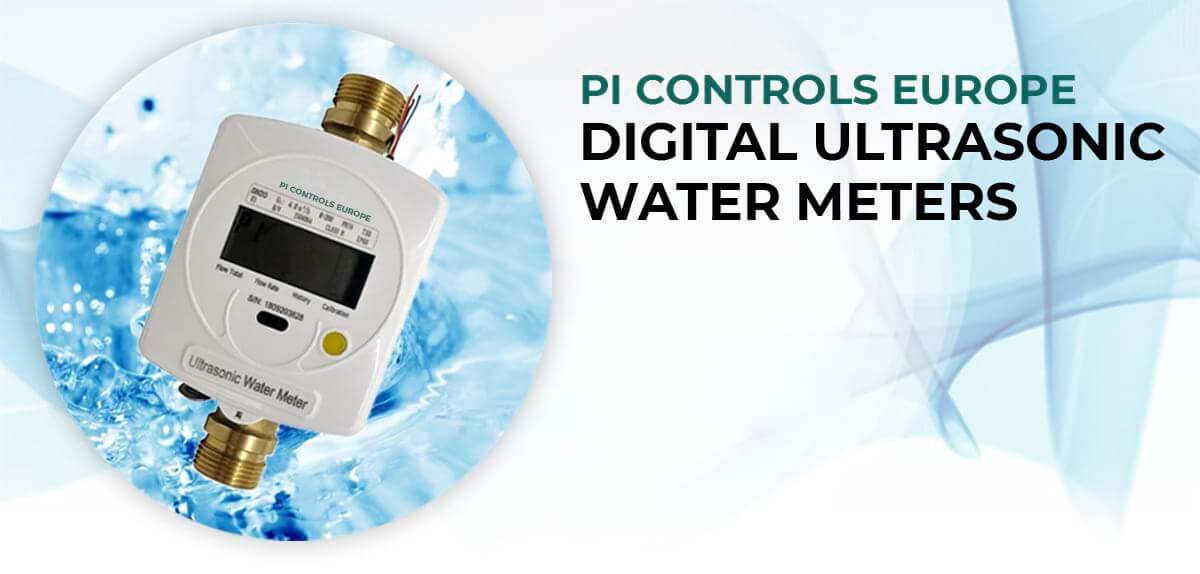

GOI International is well known water management solution provider. All the water management difficulties can be addressed by adopting solution involving the smart digital ultrasonic water meters. Ultrasonic flow meters are non-intrusive flow sensors that use acoustic vibrations to measure the flow rate of a liquid. We export best of Ultrasonic Water meters and complete water management system solution all around the word.

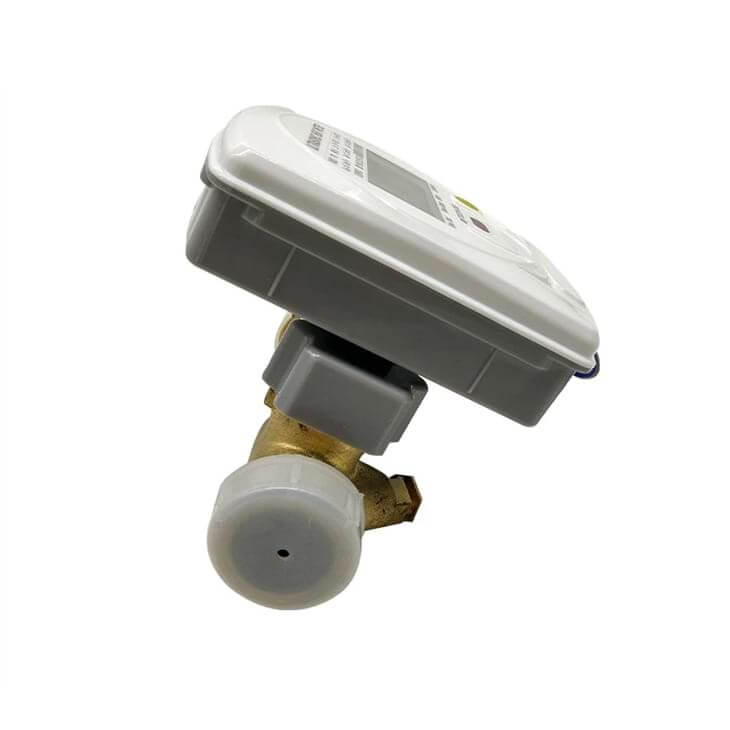

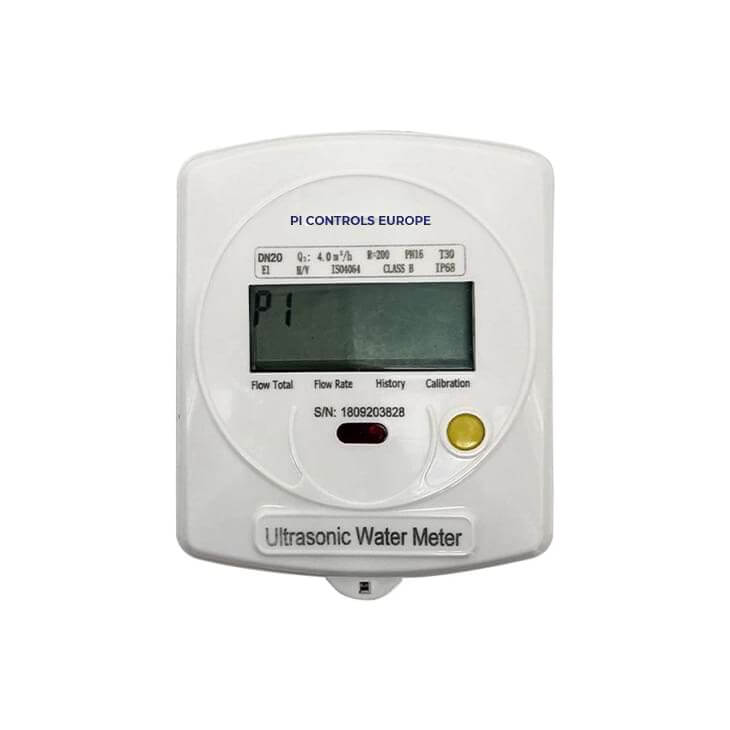

We offers all-electronic water meter. It utilizes ultrasonic technology to detect ultrasonic waves in the downstream water and measures the time difference of their counter current propagation. Through program analysis and processing, this innovative water meter accurately calculates the flow rate and total water flow.
-
No mechanical moving parts Due to the absence of mechanical moving parts in this water meter, it remains unaffected by impurities present in the water. As a result, it offers an extended lifespan with prolonged serviceability.
-
Wide Range The ultrasonic water meter outperforms traditional mechanical meters by offering a broader measurement range, including the ability to measure when there is extremely low flows in pipes.
-
Alarms This water meter incorporates numerous alarm functions, including alerts for battery voltage, empty tubes or pipes, transducer faults, and other related notifications.
-
Long working hours With its low-power consumption design and high-energy batteries, this water meter can function for over 6 years. -
Communication Protocol The communication interface is M-BUS and Rs485, it can easily achieve remote real-time monitoring and management on the LAN. -
Size Range The ultrasonic water meter size range are from DN15 to DN40
-
Range ratio: R200 Range ratio is the value that gives relation between Working flow / Minimum flow. The “R” Ratio, denoted the sensitivity of the meter for measuring low flow.
-
Protection level: IP68 With an IP68 waterproof protection rating, it can work well even in humid environment.
-
Maximum pressure: 1.6MPa
-
Maximum temperature T50, Also available higher temperatures up to T90(Optional) -
Substrate Copper -

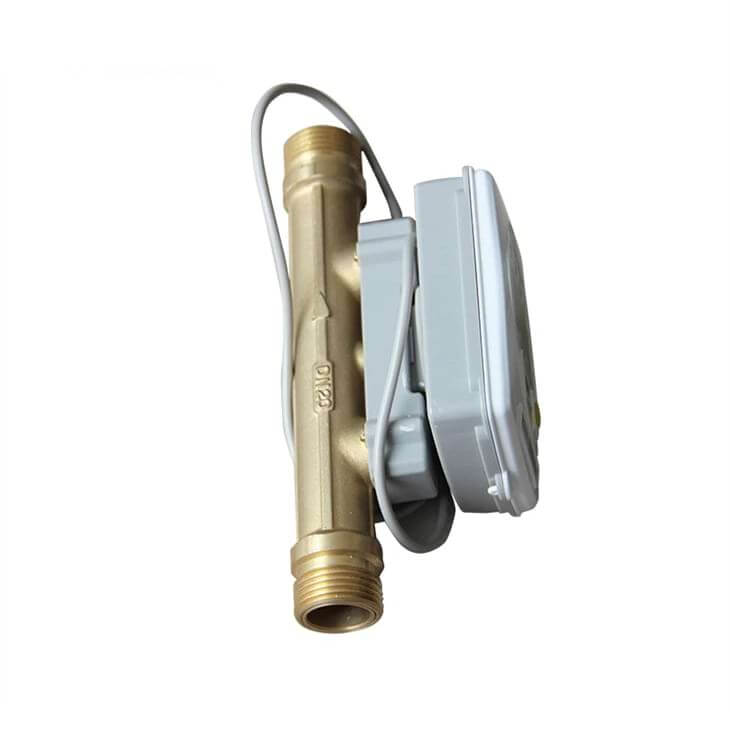

Connection method Thread
Ultrasonic flow meters are widely used in a variety of industrial and domestic applications. Ultrasonic flow meters are mostly used in oil and gas industries. They are also used in chemical, pharmaceutical, food and beverage, metal, mining, pulp and paper and wastewater industries.
Oil and Gas Industries
Chemical
Pharmaceutical
Food and Beverage
Metal

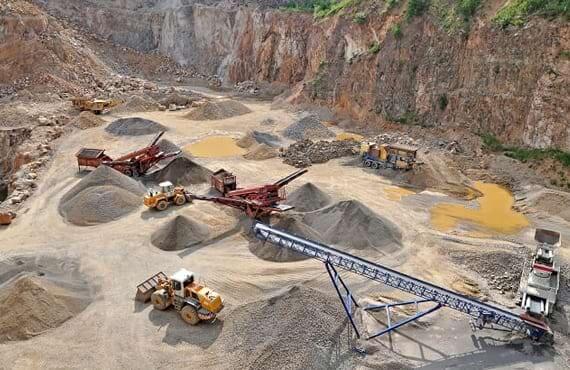

Mining
Pulp and Paper

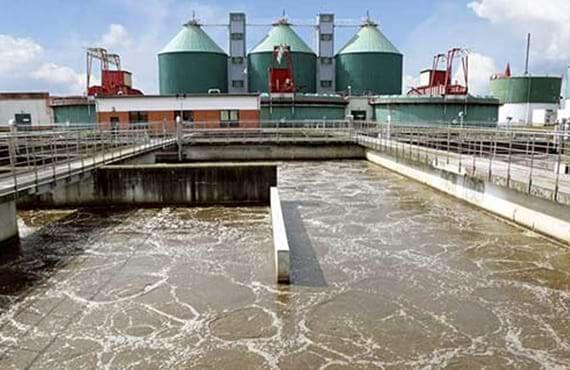

Wastewater Industries
