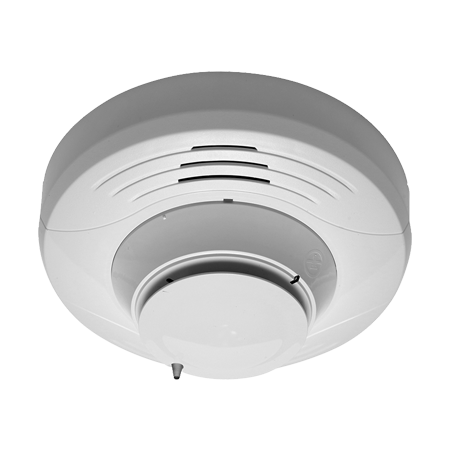

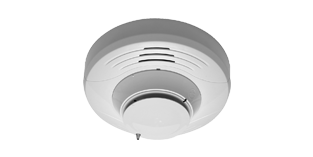

FCO-951

Advanced/Multi-Criteria Fire/CO Detector

The FCO-951 Series Advanced Multi-Criteria Fire/CO Detector from Honeywell NOTIFIER incorporates photoelectric, thermal, infra-red and carbon monoxide detection principles, providing both fire and CO detection. Sophisticated algorithms maximise the advantages of all four sensor types creating a powerful detection strategy while offering heightened immunity to nuisance particulate and enhanced sensitivity to real fires.

• Sleek, low profile design
• 10-year CO cell with end-of-life warning
• Highest nuisance alarm immunity
• Unique ability to detect all four major elements of a fire

FPTI-951

Multi-Criteria/Multi-Sensor Detector

The FPTI-951 Multi Criteria Photo/Temp/Infrared (PTIR) Detector from Honeywell NOTIFIER is an intelligent, multi-criteria detector incorporating photoelectric, thermal and infrared detection principles to sense a wider range of fires with greater accuracy. It is designed for use with for use with Onyx Series Panels.

• Multi-criteria detection
• New modern profile
• Analogue communications
• Dual LEDs for 360-degree visibility

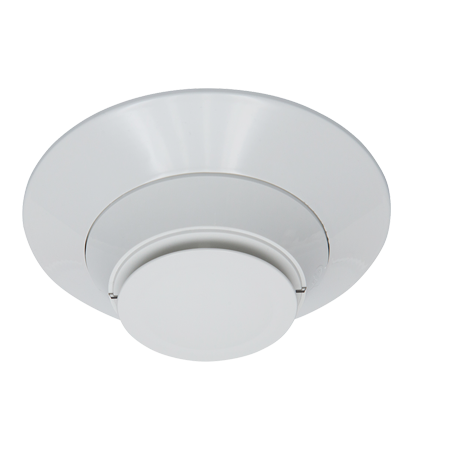

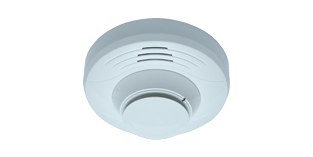

FPC-951

Multi-Criteria Photoelectric & CO Detector

The Honeywell NOTIFIER FPC-951 is an intelligent, multi-criteria detector incorporating photoelectric and carbon monoxide (CO) detection principles. It offers a cost-effective solution that meets both the UL 268 7th edition standard for smoke detection and UL 2075 standard for system-connected life safety carbon monoxide detection.

• Combination smoke and CO detector
• Sleek, low profile design
• 10-year CO cell with end-of-life warning

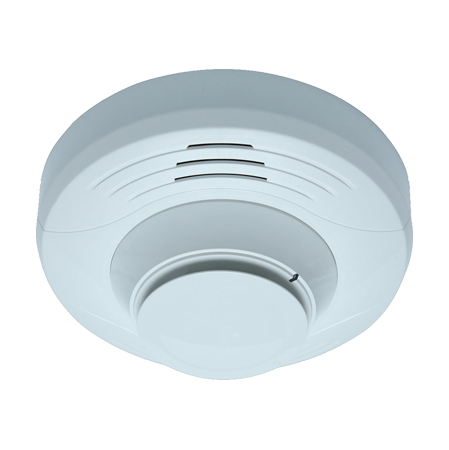

FSCO-951

Intelligent CO Detector

The Honeywell NOTIFIER FSCO-951 is an intelligent Carbon Monoxide (CO) detector. It offers an addressable solution that meets the UL 2075 standard for system-connected life safety carbon monoxide detection.

• Addressable CO detector
• Sleek, low profile design
• 10-year CO cell with end-of-life warning

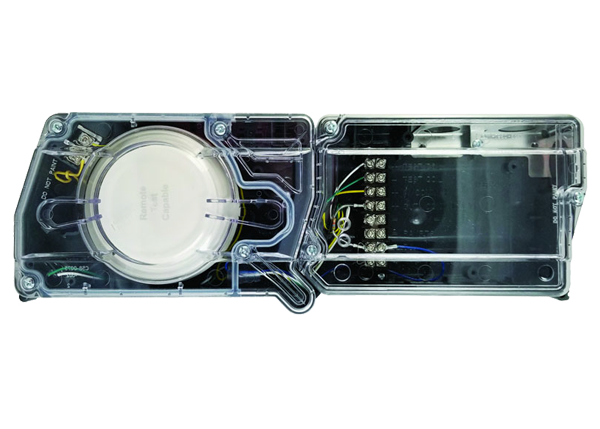

DNR

Duct Smoke Detector

The DNR duct smoke detector from Honeywell NOTIFIER simplifies the duct detection installation process, saving time and money while still providing flexibility in the field.

• Air velocity rating from 100 ft/min to 4,000 ft/min
• Adjusts to square and rectangular mounting configurations
• Patented tool-free, plug-in sampling tubes

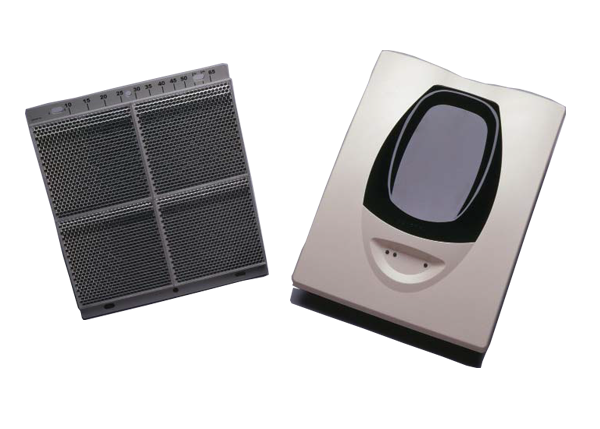

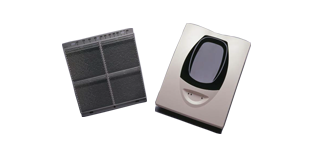

FSB-200

Single-ended beam smoke detector

The FSB-200 reflected beam smoke detector from Honeywell NOTIFIER is designed for spacious rooms, open areas and high ceilings. With only one device to install and align, this single-ended optical beam solution saves time and money on large area applications. It is compatible with the NFS-3030, NFS2-3030, NFS-640, NFS2-640, and NFS-320 in FlashScan® or CLIP mode, as well as legacy addressable panels. Installation of the single-ended reflective design is much quicker than a dual-ended projected beam detector. Alignment is easily accomplished with an optical sight and a two-digit signal strength meter incorporated into the beam detector.

• 16 to 328 foot protection range
• Single-ended, reflected type design
• Paintable cover
• For use with ONYX Series panels

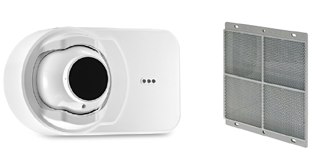

FS-OSI-RI

NOTIFIER’s FS-OSI-RI intelligent addressable reflector-type linear optical beam smoke detector is uniquely suited for protecting large open areas with high ceilings, where spot-type smoke detectors are difficult to install and maintain. Ideal applications are warehouses, atriums, aircraft hangers, sporting arenas and concert halls. The beam operates primarily on the principle of light obscuration using infrared. The FS-OSI-RI detector is a combined transmitter/receiver and is compatible with NFW-50X, NFW- 100X, NFS-320, NFS2-640, and NFS2-3030 fire alarm control panels in FlashScan® or CLIP mode.

• Combined transmitter/receiver unit
• Wide 12° field of view
• Fast, easy, and intuitive beam alignment indicated by directional LED arrows
• Long range coverage of 16-328 ft (5-100 m) is standard; no separate long-range kit required
• Highly resistant to building movement; tolerates +/- 1° movement
• Resistant to strong light sources; does not alarm when saturated by sunlight
• Resistant to solid object intrusion
• Automatic sensitivity threshold level settings and drift compensation
• 50° horizontal and 20° vertical beam adjustment
• Built-in imager heater
• Remote test station capable for electronic simulated smoke test from ground level
• Paintable housing/cover
• Removable plug-in terminal blocks
• Optional heater kit available for the reflector

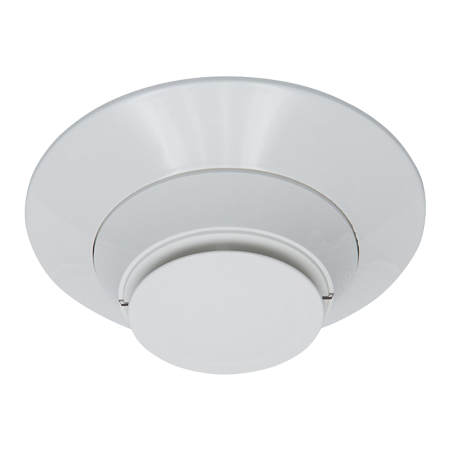

FSV-951R

Very Intelligent Early Warning (View®) Detector

The FSV-951R is a high-sensitivity photoelectric smoke detector designed for Very Early Warning Fire Detection and to protect valuable assets and operations where systems must remain functioning at all times. It features a smoke-sensing chamber and patented optic block designed to amplify signals from smoke, but diminish stray internal reflections that can cause false alarms.

• Very Early Warning Fire Detection capability
• Sleek, low-profile design
• Analogue communications
• Low standby current
• Rotary address switches
• Dual LEDs for 360° visibility
