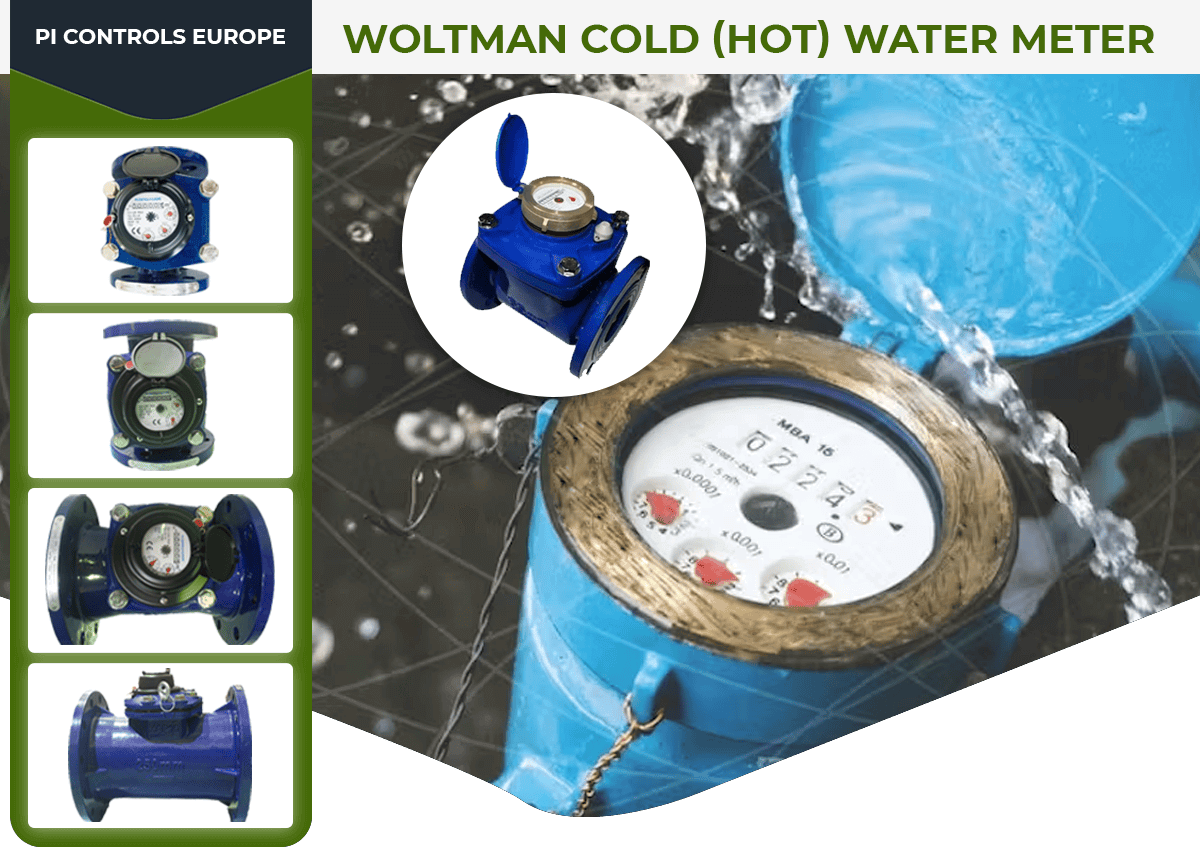

Water system management requires reliable data acquisition. The Woltman water meter provides accurate data acquired directly from within the system. The Woltman water meter measures the volume of cold (hot) water passing through the pipeline. In this meter large turn-down is used for accurate measurement of water distribution. It’s a meter with magnetic transmission and dry recording head, for measuring water passing through water networks. Woltman water meters operate according to the rate of flow/velocity measuring principle in which the movement of a moving element is transmitted to an indicating device (register unit) which totalizes the volume flow. The moving element in Woltman meters is a turbine which is fully exposed to flow.
Cold / Hot water
Wide water Operating Temp range
Accuracy
R=50/80
Removable Mechanism
ensures easy installation and trouble free maintenance
Heavy duty design
allows high flow rate with low pressure drop
Vacuum sealed register
for smooth flow measurement
Anti-Frost dial display
for clear readings
Sizes
available from DN15 to DN600
Selected high quality material
for Long-term reliability & stability of the measuring results
Pulse output
for future communication
Dry-dial
Magnetic drive sensitive action, small pressure loss.
Specially designed bearings
to withstand natural hydraulic thrust
Direct magnetic drive
ensures register is sealed from water
Woltman water meters operate according to the rate of flow/velocity measuring principle in which the movement of a moving element is transmitted to an indicating device (register unit) which totalizes the volume flow. The moving element in Woltman meters is a turbine which is fully exposed to flow

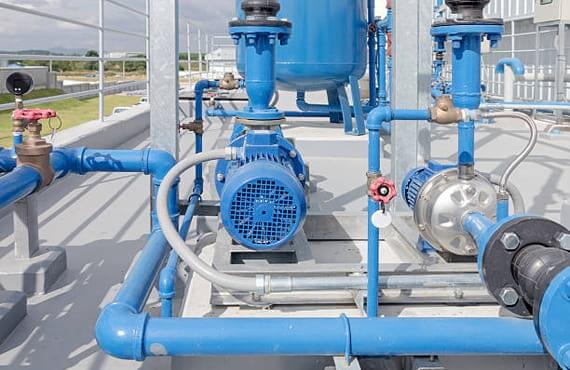

Water Distribution Network

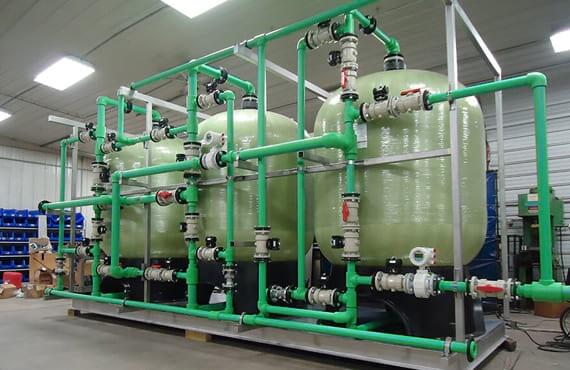

lndustrial / Commercial Water Supply

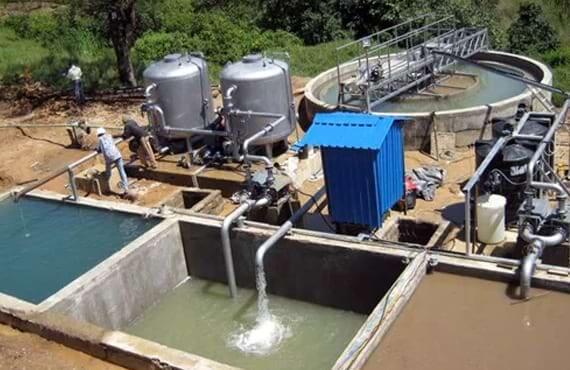

ETP Plant, Pharmaceutical, PWD
