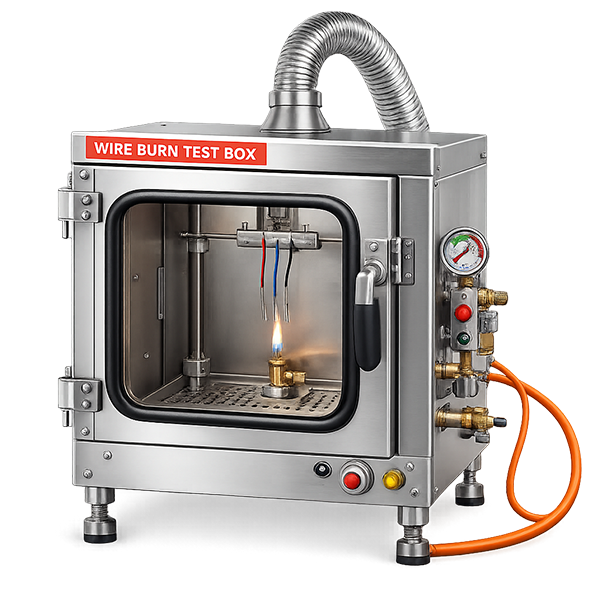

Xtralis VESDA Wire Burn Test Box (516.018.921FC)
Gulf Oil & Gas International supplies the genuine Xtralis VESDA Wire Burn Test Box (516.018.921FC) for VESDA aspirating smoke detection systems to enable precise sensitivity testing and system commissioning in high-stakes environments like oil & gas facilities, data centers, and manufacturing plants. This test tool produces controlled smoke quantities by heating a measured length of special smoke test wire (516.018.923FC), allowing technicians to verify detector sensitivity, alarm thresholds, and response times during commissioning and periodic testing. The Wire Burn Test Box supports VESDA's patented Flair Detection™ technology by providing repeatable smoke generation for accurate calibration without contamination or residue. Easy operation with precise wire length control ensures consistent test results and compliance with standards. The Wire Burn Test Box is compatible with all VESDA LaserPLUS, LaserCOMPACT, and VLI series detectors used for very early smoke detection.


Fireclass 516.018.921FC Wire Burn Test Box
Brand: Fireclass
Part Number: 516.018.921FC
Categories: Ancillary (Aspirating Smoke Detection)
Fireclass 516.018.921FC Wire Burn Test Box
The wire burn test box is designed to heat up a measured length of special wire to produce smoke, used to test the transport time and performance of aspirating smoke detectors.
- Key Features
- Built in timer
- Insulated terminals
- Selectable input voltage
- Illuminated power on indicator
- Robust enclosure
- Supplied with UK power lead
- Technical Specification
- Input Voltage: 110-120 or 220-240VAC
- Output Voltage: 6.3VAC @ 20A
- IP rating: IP30
- Timer: 1 to 3 mins
- Dimensions: 170w x 120d x 135h (mm)
- Weight: 2.75Kg
