Welcome to Gulf Oil & Gas International – Your Trusted Source for PI Controls Europe Digital Pressure Gauges We are proud to introduce the PI Controls Europe Digital Pressure Gauge, a next-generation solution designed for precise and intelligent pressure measurement. This advanced digital gauge features a high-precision sensor and a large LCD display, delivering real-time pressure readings with exceptional accuracy. Engineered for performance and reliability, it is the ideal choice for modern industrial and laboratory applications.

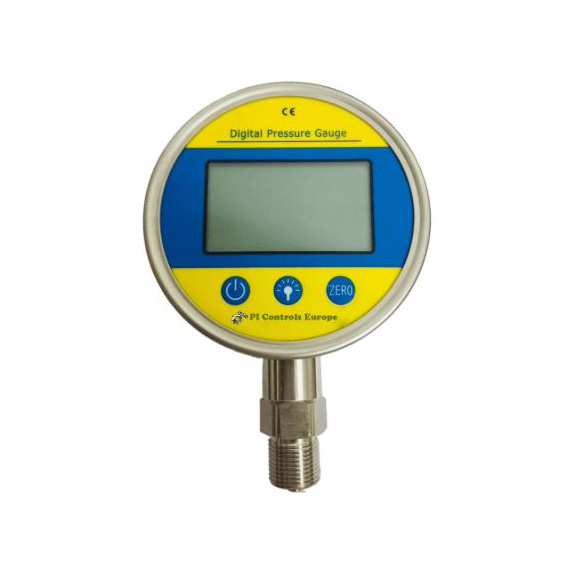

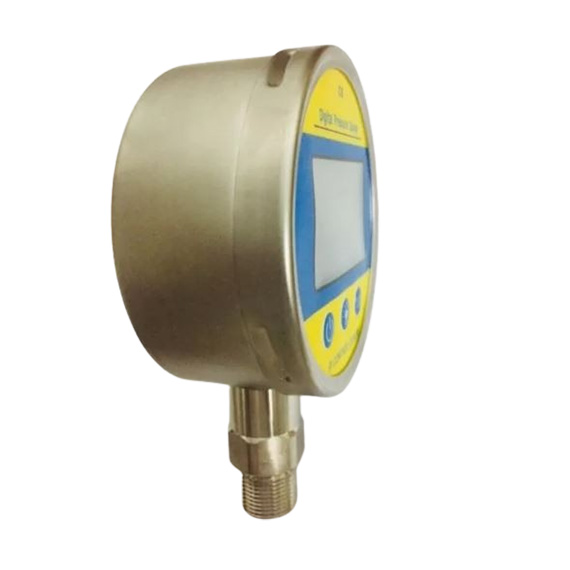

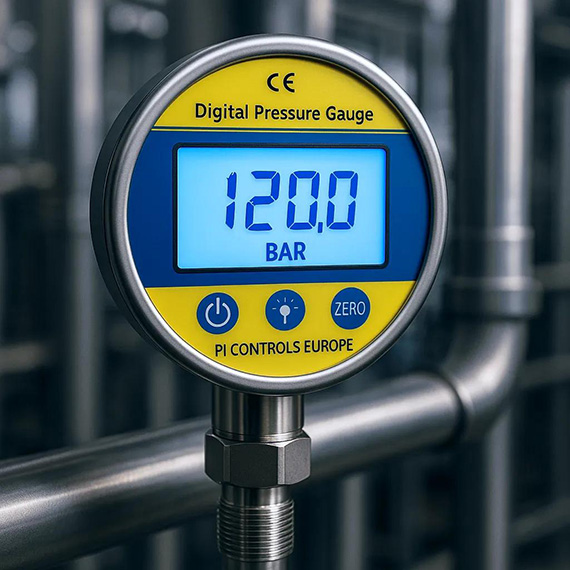

Digital Pressure Guage
PI Controls Europe
Digital Pressure Guage
- Technical Features of PI Controls Europe Digital Pressure Gauge:
- High-contrast 5-digit LCD display for accurate real-time pressure readings
- Multiple pressure unit options for versatile usage
- Zero clearing function for quick reset
- Backlight display for visibility in low-light environments
- On/Off control button for power efficiency
- Battery-powered with low-power consumption design
- Low voltage alarm to ensure uninterrupted operation
- Peak recording functionality to store maximum and minimum pressure values
- 304 stainless steel surface and connector for durability and corrosion resistance
- Suitable for measuring gas, liquid, oil, and other non-corrosive media compatible with stainless steel
- Easy to install and operate, ideal for both field and lab use
- Offers high precision and long-term measurement stability
It has a various of features, such as zero clearing, backlight, on/off button, units, ow voltage alarm. And it is convenient to install and easy to operate. This gauge can be used as peak record to record the maximum and minimum.
The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.
- Application:
- Machinery and electronic industries
- Pressure calibration laboratories
- Replacement for analog pointer-type pressure gauges
- Support equipment for instruments and meters
- Mechanical engineering and automation systems
Specification:
| Range | Micro pressure: (6...10...25) kPa Medium Pressure: (0.4...0.6...4) MPa |
|---|---|
| High Pressure: (6...10...25) MPa Ultra High Pressure: (40...60...160) MPa | |
| Compound Range: (-5~5...10..-100~1000) κρα | |
| Absolute Pressure: (0-100...250...1000) kPa | |
| Differential Pressure: 0~10...25...40...60...100...250...400...600) kPo (0~1...1.6) MPa | |
| Overload Capacity | 150%; |
| Backlight Color | White |
| Dial Size | 100mm |
| Acc. | 0.2%FS |
| 0.4%FS | |
| Long-term Stability | Typical: ±0.2%FS/year |
| Operating Temperature | -5-40°C |
| Compensation Temperature | 0-40℃ |
| Electric Protection | EN 61326 |
| Sampling Frequency | 3 Times/sec |
| Measurement Medium | Gas, water, oil |
| Connection | M20*1.5 G1/4 G1/2 or 1/4NPT 1/2NPT(customized) |
| Connection Material | 30455 |
| Shell Material | 30455 |
| Function | On/off, zero clearing, units changing, backlight |
| Power Supply | 3 AA batteries |
| IP rating | IP50 (IP54with protection sleeve) |
