Korhne DW181 DW182 DW183 DW184 Flow Switch

Specification

  • Model No.DW18
  • Main ApplicationCorrosive Liquid/Gas
  • CetificationISO
  • DescriptionFlow Switch
  • FunctionMonitors Flow In Horizontal Or Vertical Pipes
  • Scale Marking OptionsL/h, M3/h Or US GPM
  • Repeatability±3%
  • Accuracy±15%
  • Installation TypeInline Connection
  • Reference Temperature+20°C ±5°C
  • Power Supply:12…30 VDC, None
  • Reference Pressure1013 Mbar Abs. ±20 Mbar
  • Measuring TubeSS 316 L
  • ConnectionSS 316 L
Product Description

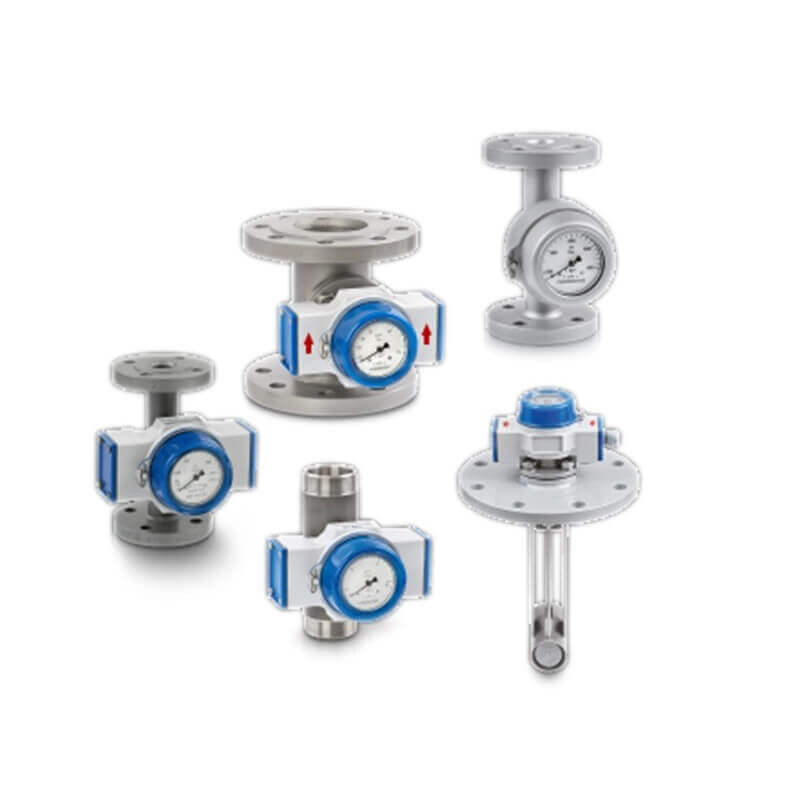

Flow controllers DW 181, 182, 183, and 184

With the flow controllers DW 181, 182, 183 and 184, KROHNE offers the ideal flow control solution for virtually any process connection.

Each device is equipped with a limit switch (dry reed contact) and it is possible to install another switch at any time. For greater switching energies of up to 1200 VA, an additional amplifying relay can be installed.

Choose the display which is most adapted to your needs: DW 181, 182, 183, 184 can be ordered with two display types, G and A.

The G display enables visual monitoring of the flow via a 10-point scale. The switching point can be changed at any point along the way. The A display allows a more accurate reading of the flow value (e.g. in l/h or in m3/h) via a scale. With this display, the switching points can be set even when there is no flow.

    Highlights
  • Proven technology - for more than thirty years
  • Bistable reed switches, SPDT switches and relays available
  • Optional second limit switch
  • Switch position can be adjusted under process conditions
  • Suitable for pipes DN 15-3000 or ½...120" in diameter
  • High-temperature version (without indicator) for operating conditions up to 300°C / 570°F
  • Housing is removable under process conditions
  • Optional approval for EEx I or EEx d applications
  • No maintenance needed

Over View

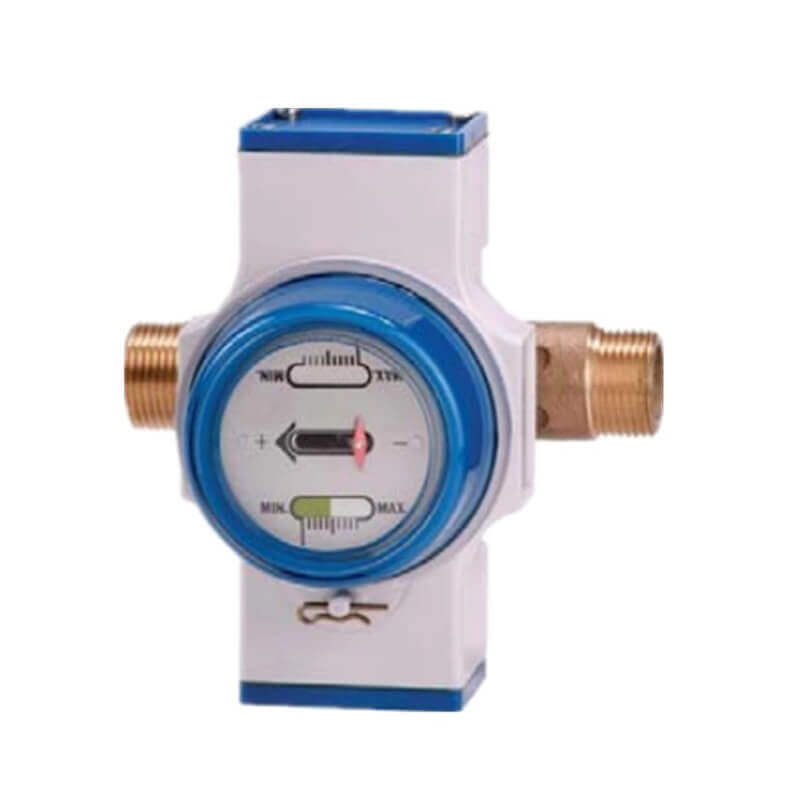

DW181

The DW 181 is an inline flow controller for locally indicating the flow of homogeneous clean liquids without auxiliary power. It is suitable for horizontal or vertical pipes. The flow controller can have G or NPT threaded connections with sizes ranging from sup>3⁄4...2". The measuring tube and connection are made of either bronze or stainless steel (1.4404 /316 L). Two types of indicator are available: a linear scale with up to two alarm positions at the top and bottom of the indicator or a dial.

The DW 181 is particularly suitable for cost-effective flow detection in various applications where high accuracy is not required. It can deal with flows of up to 30,000 l/h or 132.09 GPM (US). There is also a high-temperature version on offer for operating conditions up to +300°C / +570°F. The DW 181 is available as non-hazardous, intrinsically safe and explosion-proof version.

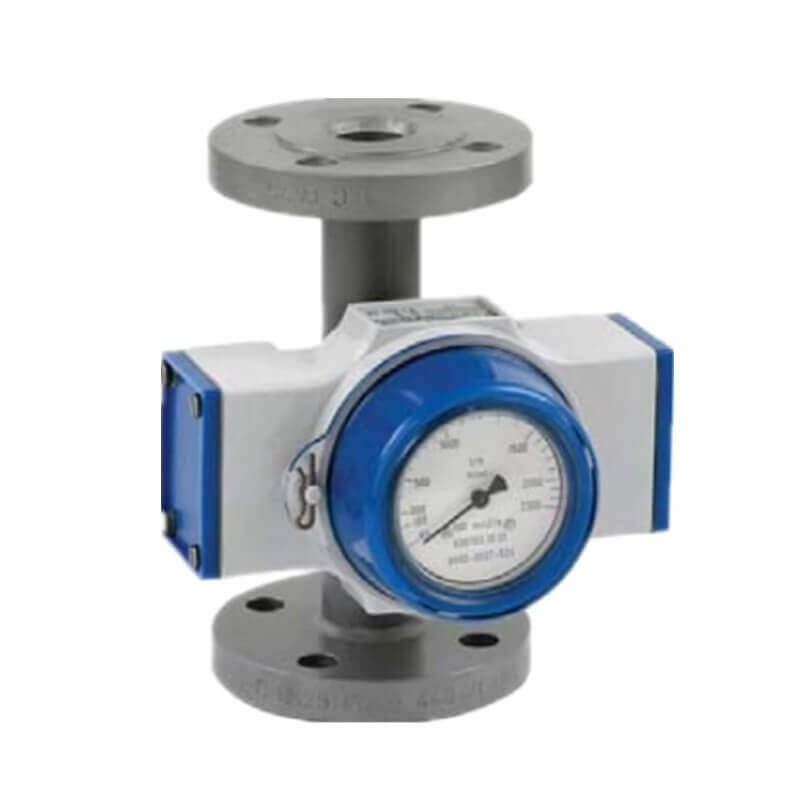

DW182 The DW 182 is an inline flow controller for locally indicating the flow of homogeneous clean liquids without auxiliary power. It is suitable for horizontal or vertical pipes. The flow controller comes with flanged connections (DN15...65 / 1⁄2...21⁄2"). The measuring tube and connection is made of stainless steel (1.4404 / 316 L). Two types of indicator are available: a linear scale with up to two alarm positions at the top and bottom of the indicator or a dial.
The DW 182 is particularly suitable for cost-effective flow detection in various applications that don't require high accuracy. It can deal with flows of up to 30,000 l/h or 132.09 GPM (US). There is also a high-temperature version on offer for operating conditions up to +300°C / +570°F. The DW 182 is available as non-hazardous, intrinsically safe or explosion-proof.

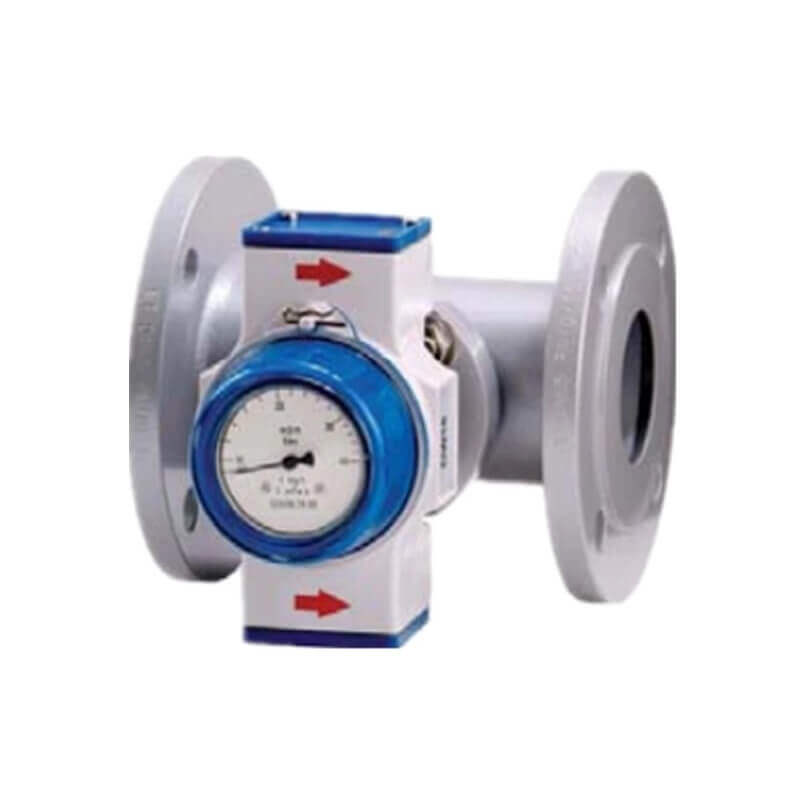

DW183

The DW 183 is an inline flow controller for locally indicating the flow of homogeneous clean liquids without auxiliary power. It is suitable for horizontal or vertical pipes. The device comes with flanged connections, sizes ranging from DN65...200 and 3...8". The measuring tube and connection is made of stainless steel (1.4404 / 316 L). There are two types of indicator available for this variant: a linear scale with up to two alarm positions at the top and bottom of the indicator or a dial.

The DW 183 is particularly suitable for flow detection in various applications that don't require high accuracy. It can deal with flows of up to 250,000< l/h or 1101 GPM (US). It is also on offer as high-temperature version for operating conditions up to +300°C / +570°F. The DW 183 is available as non-hazardous, intrinsically-safe or explosion-proof version.

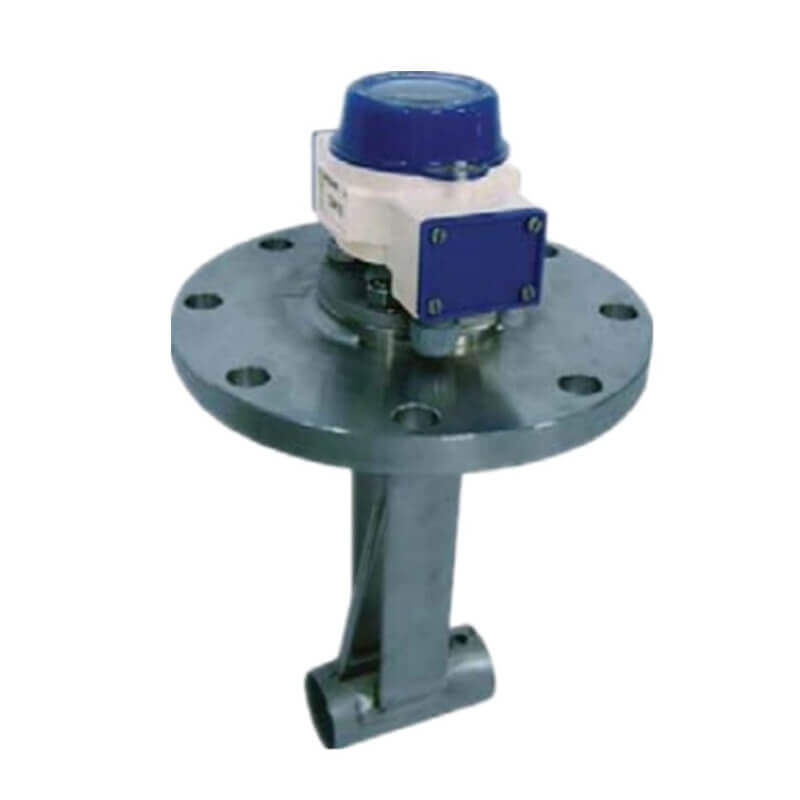

DW184

The DW 184 is an insertion-type flow controller for checking the flow velocity of liquids without auxiliary power. It is suitable for horizontal and vertical pipes ≥DN250 / 10". The device comes with DN150 (PN16/40) or 6" (ASME Cl 150/300) flanges. The internals are made of stainless steel (1.4404 / 316 L). The indicator is available with a linear scale with alarm positions at the top and bottom.

The DW 184 is particularly suitable for cost-effective flow detection in various applications that don't require high accuracy. It can deal with flow velocities up to 4 m/s or 13.1 ft/s. A high-temperature version can be provided for operating conditions up to +300°C / +570°F. The mechanical flow controller is available as non-hazardous, intrinsically-safe or explosion-proof version.
