WIKA S-11 Pressure Transmitter

• Model Name/NumberS-11
• BrandWIKA
• Accuracy (%) 0.5%
• Automation Grade Automatic
• Power Supply10-30 VDC, 24 VDC
• Temperature (Deg. Celsius)110 Deg Celsius
• Output Signal (mA)4-20 mA
• Weight (Kg)0.1
• Range (Bar)0-16 bar, 0-250 mbar, 0-700 Bar

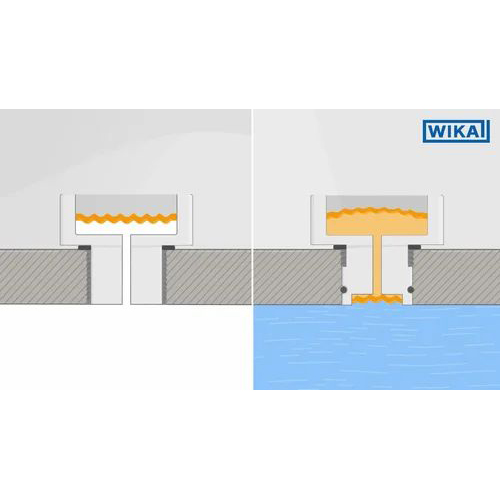

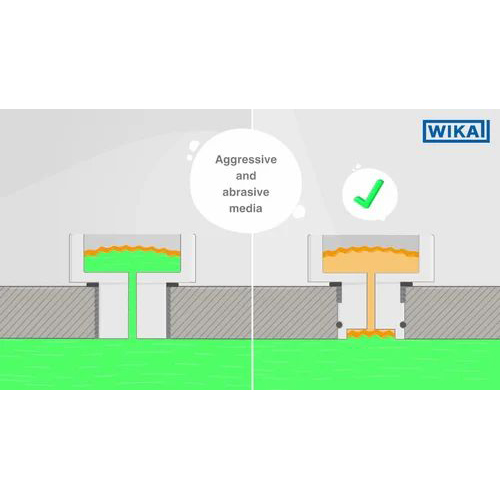

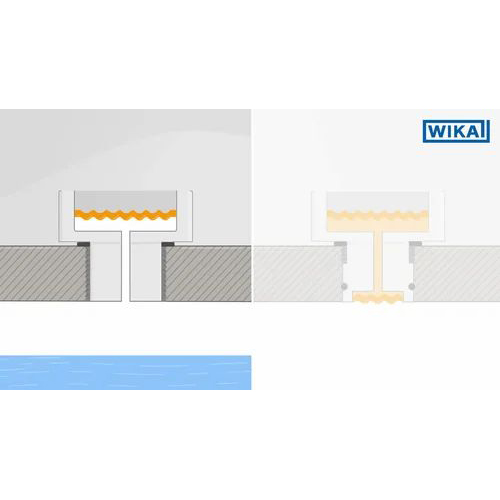

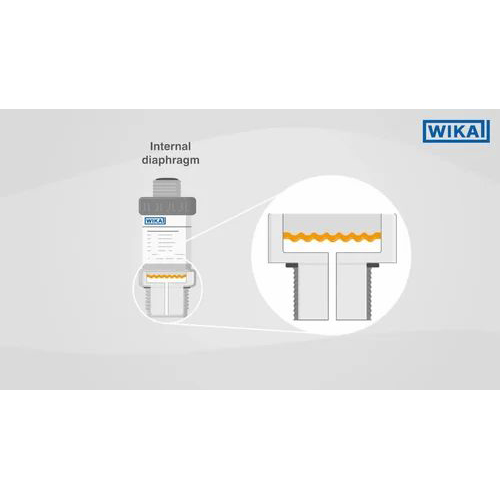

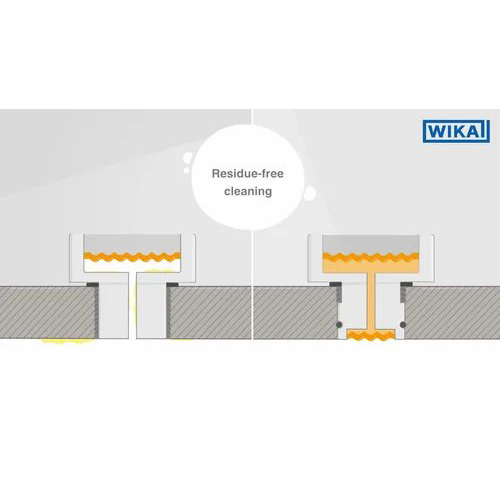

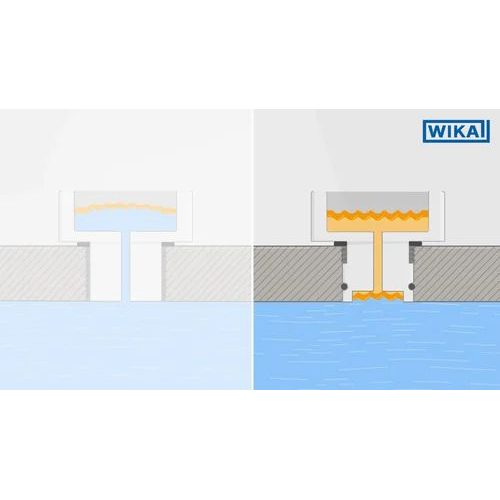

Description:The model S-11 pressure transmitter with a flush diaphragm is designed for measuring viscous, adhesive, crystallizing, particulate-containing, and contaminated media that would clog conventional pressure channels. Its optimized flush process connection ensures easy cleaning of the wetted diaphragm, providing low-maintenance and reliable pressure measurement, even in critical applications with frequently changing media.

• Applications:
  • Machine building
  • Hydraulic aggregates
  • General industrial applications
  • Food and beverage industry Special

• Features:
  • High quality product
  • Many configurations possible
  • Flush process connection
  • Large stocks for short delivery times

•
