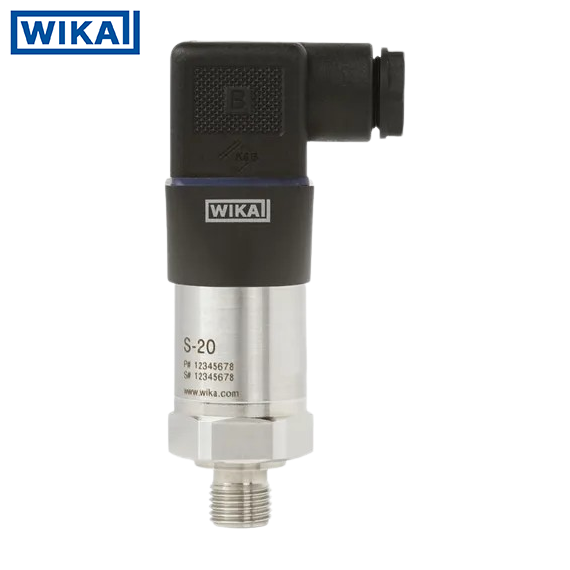

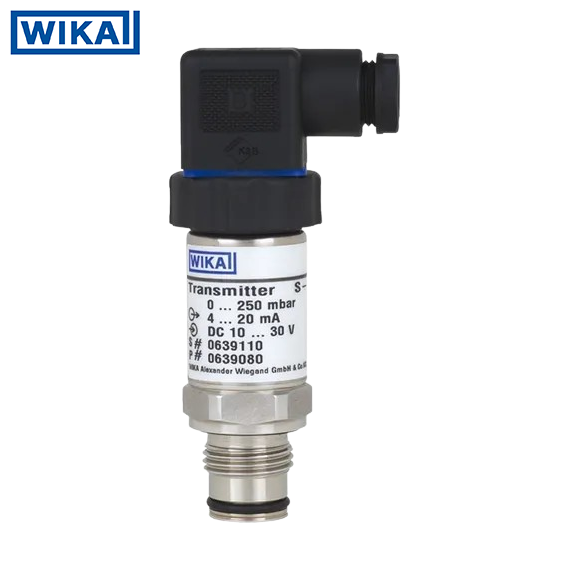

WIKA S-20 Pressure Transmitter

• Output Signal (mA) 0.0V-5V
• Usage/Application Monitor Pressure
• Model Name/Number S-20
• Voltage 24 V DC
• Accuracy +-0.5%
• Accuracy (%) 0.5%
• Automation Grade Automatic
• Power Supply 10-30 V DC
• Connectivity Type 1/2 " BSP(M)
• Temperature (Deg. Celsius) 110 Deg Celsius
• Range (Bar) 0-10 bar, 0-250 mbar, 0-700 Bar

Description:The WIKA S-20 pressure transmitter is the ideal choice for general industrial applications with demanding measurement needs. It offers high accuracy, a robust design, and numerous variants, making it suitable for a wide range of applications. The S-20 provides continuous measuring ranges from 0-0.4 to 0-1,600 bar across all major units, and can be combined with standard industry output signals, process connections, and electrical configurations. It also includes various options such as different accuracy classes, extended temperature ranges, and custom pin assignments. Built to withstand harsh conditions, this pressure transmitter performs reliably in extreme temperatures, high shock and vibration environments, and with aggressive media. Get the best price for the WIKA S-20 pressure transmitter.

• Applications of the WIKA Pressure transmitter:
  • Machine building
  • Ship building
  • Measurement and control technology
  • Hydraulics and pneumatics
  • Pumps and compressors

•
