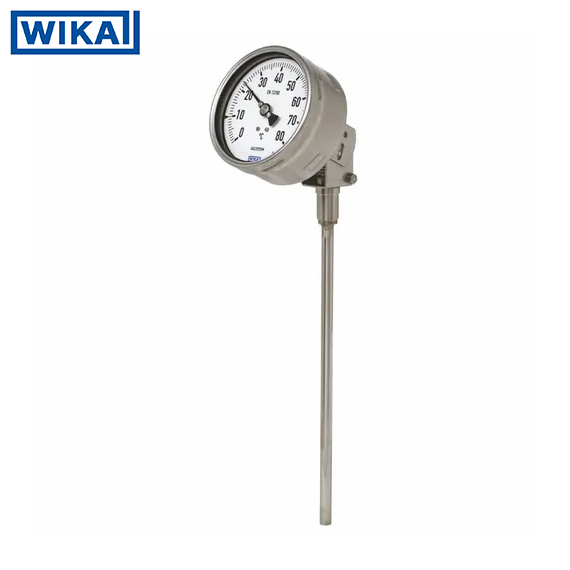

WIKA Temperature Gauge

• Usage/ApplicationIndustrial
• BrandWIKA
• MaterialStainless Steel
• Model Name/Number73
• ColorSilver
• Continuous load (1 year)Measuring range (EN 13190)
• Short time (max. 24 h)Scale range (EN 13190)
• Nominal size100, 160 mm
• Scale range-200 +100 to 0 +700 Degree C
• Packaging TypeBox

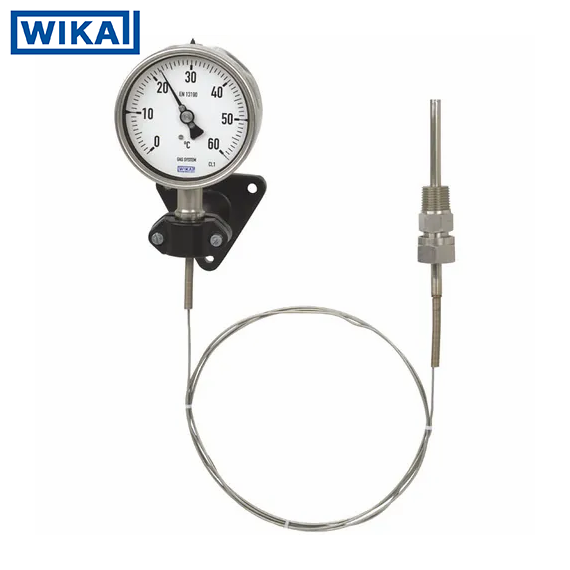

The WIKA Temperature Gauge, developed and manufactured according to the EN 13190 standard, is designed for the process industry, particularly in chemical, petrochemical, oil and gas, and power engineering sectors. Fully made of stainless steel, including the stem, process connection, and case, it offers customizable insertion lengths and connections for optimal process fit. With a high ingress protection rating of IP65, it is suitable for outdoor use, even at negative temperatures. Liquid damping allows for reliable operation under high vibration conditions, and the model 73 gas-actuated thermometers can be tailored to any process connection or location.

•
