Features And Benefits

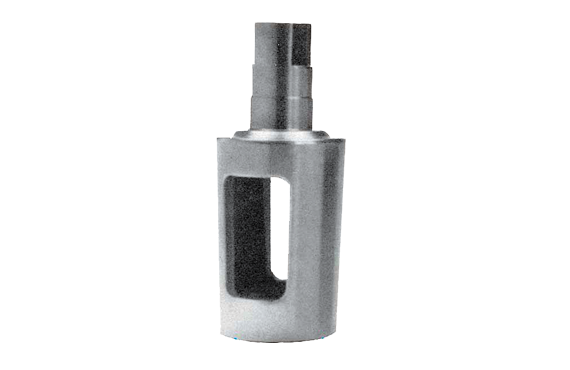

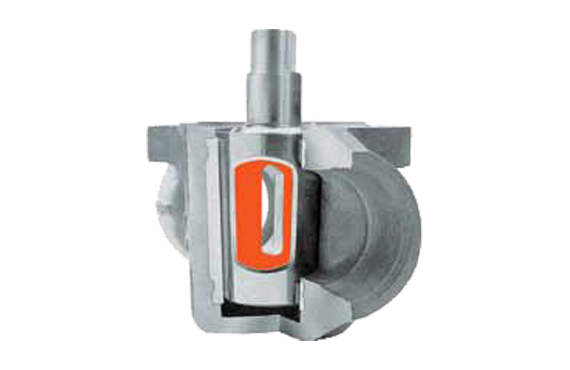

- Caged plug provides soft seat protection against erosion in throttling applications
- Metal-to-metal throttling combined with metal-to-soft seat shutoff
- Cavity free
- Easy in-line adjustability
- No seizing. No sticking.
Technical Details
-
Materials Of Construction - Wide range of materials in: Carbon Steel, Stainless Steel, Ductile Iron, Nickel Alloys, Titanium, Zirconium, Additional materials upon request
-
Size Range - 1″ to 12″ / DN25-DN300
-
Pressure Ratings - Class 150, 300 & 600 / PN 10-40
-
Body Configuration - Flanged End, Weld End, Screwed End
-

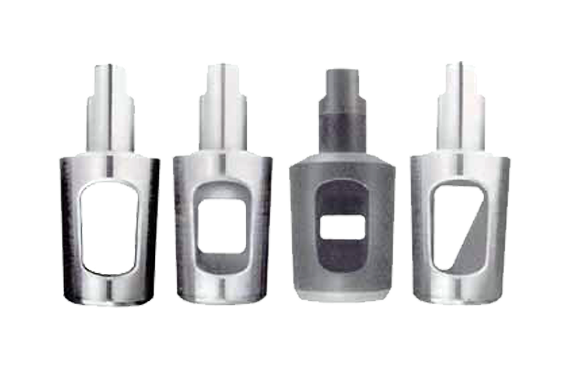

Plug Trim Options - Reduced ports: 50%, 25%, 12-1/2%, 6-1/4%, and 3-1/8% out of standard valve Cv V-ports
-
Special Options - Port shapes, pressure classes and different valve sizes are available on request
Applications
Wide range of applications in:
- Slurries
- Fertilizers
- Powder
- Water
- Chemicals
