Features And Benefits
- Unrivalled ease of maintenance through single module design of all inner components
- Remote or semi-remote applications
- Cavity free
- 360° degree port lip design to ensure sleeve containment^^ No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
Technical Details
-
Materials Of Construction - Stainless Steel, Nickel Alloys, Additional materials upon request
-
Size Range - 1/4″ to 8″^^ / 8mm to DN200
-
Pressure Ratings - Class 150 & 300, 600
-

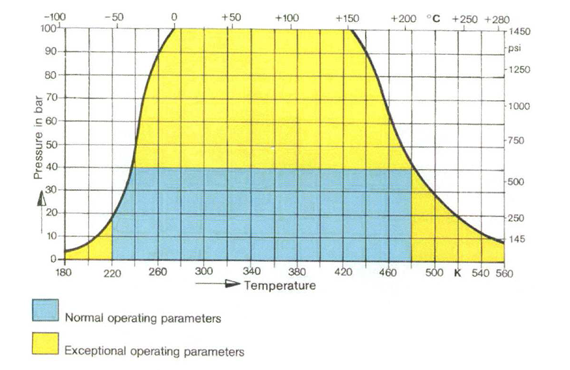

Temperature Range - -20°F up to 400°F (ASME B16.34), Depending on material selection
-
Body Configuration - Weld End, Multiway, Full Port, 120° 3-Way Full Port
-
Special Options - Wide range of sleeve materials, Different top work configurations, Actuation options
Applications
- Nuclear fuel reprocessing plants
- Vitrification plants
