Features And Benefits

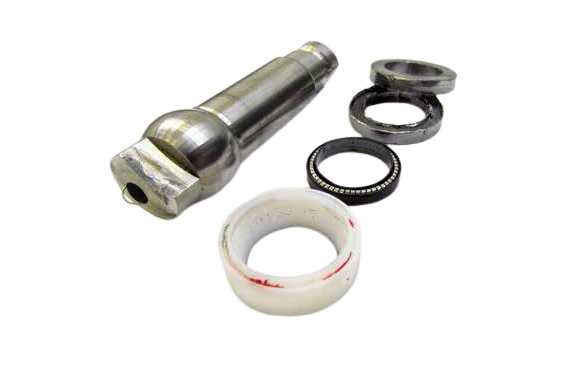

- Three independent stem seals offer superior fugitive emissions control, certified to the following standards: EPA Method-21, ISO-15848, and TA-Luft according to VDI 2440.
- Self-relieving seats permit relief of excess pressure to protect the integrity of the valve while maintaining bidirectional operation.

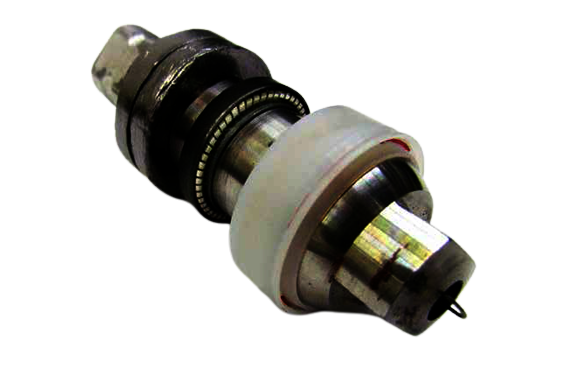

- Patented SX ball-stem design provides high maximum stem torque capability and built-in side load resistance for extended valve life under severe conditions including thermal-cycling.

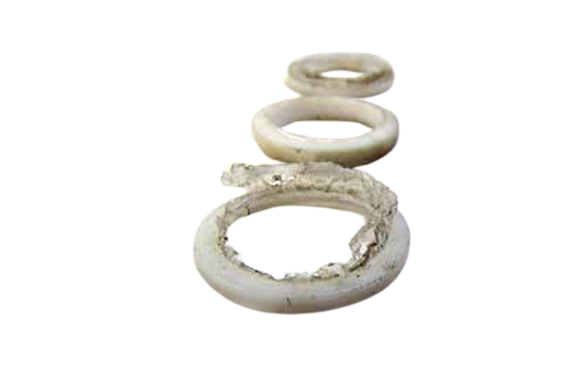

- Dual material spiral wound body gasket, including a PTFE chemically inert inner seal and a secondary graphite outer seal, is supplied as standard.
Technical Details
-
Design Features - Full bore design, Face-to-face dimension Long Pattern ASME B16.10, Raised Face Flange dimension per ASME B16.5, Self-relieving seats, Fire tested API 607 6th edition & ISO 10497:2010, Anti-static design (electrical continuity between ballstem-body), Blow-out proof stem, Actuator mounting flange according to ISO 5211, Patented SX stem seal for side load protection, Fugitive emissions per EPA Method-21, ISO-15848, & TA-Luft (VDI 2440)
-
Materials Of Construction - WCB and CF8M standard body materials, Higher alloys available (Example: Alloy-20, Monel, Inconel & Hastelloy C)
-
Size Range - ½” – 12” / DN15-300
-
Pressure Ratings - Class 150 – 300
-
Temperature Range - 450°F (230°C)
Applications
- Chlor-Alkali
- Industrial Chemicals
- Metal and Mining
- Nitrogen and Phosphate – Fertilizers
- Refining
- P107Petrochemical
