Features And Benefits
- Cavity free
- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy In-line adjustability
- No seizing. No sticking
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Ductile Iron, Nickel Alloys, Titanium, Zirconium, Additional materials upon request
-
Size Range 1/2″ to 24″ / DN15-DN600
-
Pressure Ratings - Class 150 & 300 / PN 10-40
-
Temperature Range- -20°F up to 600°F (ASME B16.34) / -100°C up to +280°C depending on material selection
-

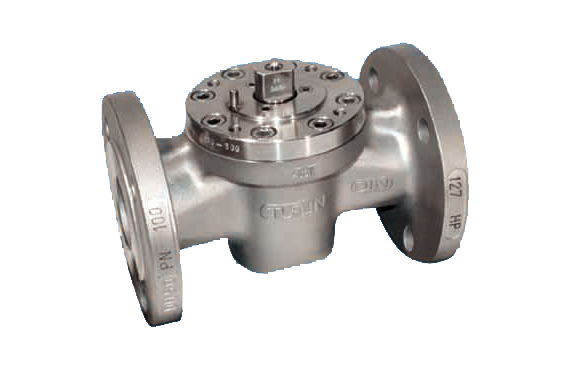

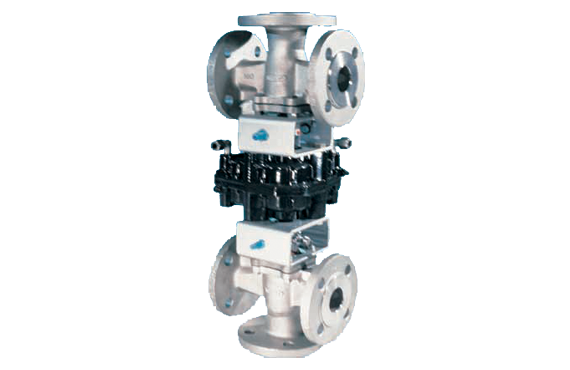

Body Configuration - Flanged End, Multiway
-

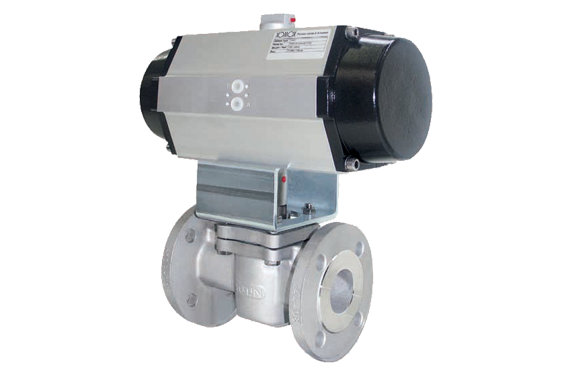

Options - Wide range of sleeve materials, Fire-safe, Top work configurations, Actuation
Applications
Wide range of applications in:
- Chemicals
- Chlor-Alkali
- Polymers
- Fertilizers
- Pulp and Paper
- Slurries
- Food industry
- Refining
- Water
