Features And Benefits
- Cavity free
- Large Flow (High Cv / Kv)
- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy In-line adjustability
- No seizing. No sticking.
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Zirconium, Additional materials upon request
-
Size Range - 1″ to 24″ / DN25-DN300
-
Pressure Ratings - Class 150, 300 & 600 lbs / PN 10-40
-
Temperature Range- -20°F up to 600°F (ASME B16.34) / -100°C up to +280°C depending on material selection
-
Body Configuration - Flanged End, Weld End, 120° 3-Way Full Port
-

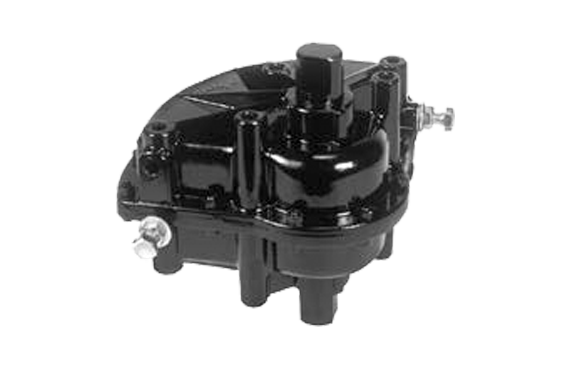

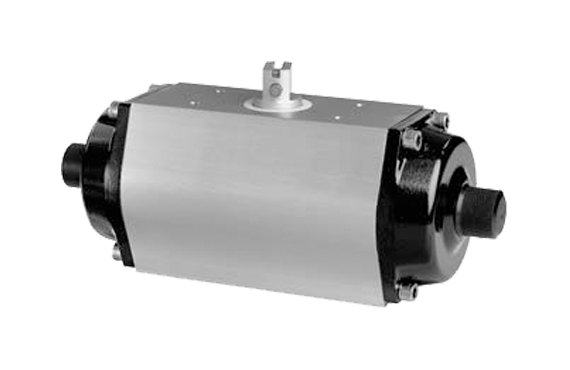

Special Options - Wide range of sleeve materials, Fire-safe, Different top work configurations, Actuation options, Pipeline pig for mechanical cleaning
Applications
- Polymers
- Fertilizers
- Chemicals
- Chlor-Alkali
- Pulp and Paper
- Slurries
- Refining
