Features And Benefits
- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy in-line adjustability
- No seizing. No sticking.
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Zirconium, Additional materials upon request
-
Size Range 1/2″ to 16″
-
Pressure Ratings - Class 600 (Derated for specific sizes)
-
Temperature Range- -20°F up to 600°F (ASME B16.34) / -100°C up to +280°C depending on material selection
-

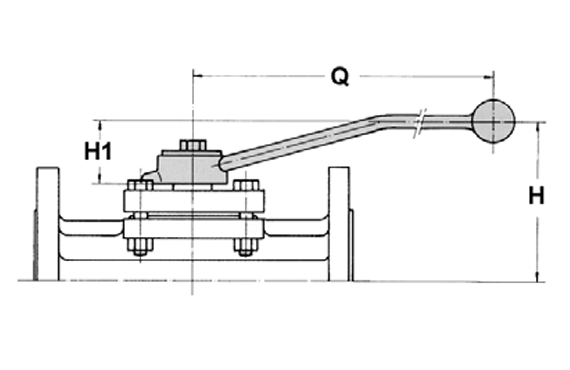

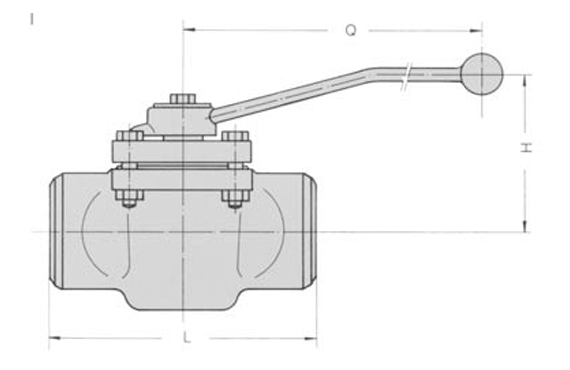

Body Configuration - Flanged End, Welded End
-
Options - Wide range of sleeve materials, Different top work configurations, Actuation options
Applications
Wide range of applications in:
- Oil and gas production, transmission and compressor stations
- High pressure monomer and polymer applications
- High pressure chemical and petrochemical processes
- HF alkylation services
