Features And Benefits

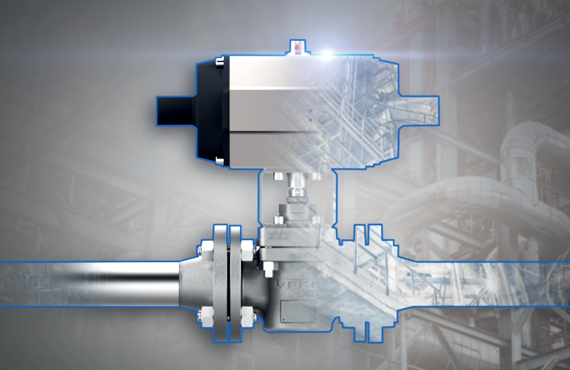

- Lower Torque - With innovative design (patent pending) that has controlled compression of sealing elements achieving leak tightness at lower compression forces leading to the most compact actuated packages in the industry with up to 50% lower torque than our current sleeved plug valves

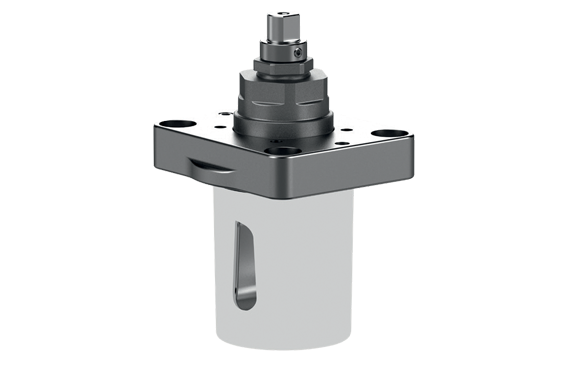

- Shorter Repair Time - With a replaceable cartridge that doesn’t require special skills and tools for replacement inline resulting in significant reduction in process and maintenance costs
- Fugitive Emissions Compliance - Meeting new upcoming TA-LUFT emission standard aligned with ISO 15848-1 BH CO3 200°C SSA0, a future proof design for our customers
Technical Details
-
Design Features - Significant torque reduction for cost effective automation package, Patent pending – Modular PFA Cartridge for ease of repair that doesn’t require special skills and tools, In-line valve repair for Maintenance, reducing downtime, Independent Plug adjustment and adjustable stem packing, PTFE Braided, Graphite packing and Spiral wound gasket to meet Fugitive emission compliance – ISO-15848-1 and EPA Method 21
-
Materials Of Construction - WCB/CF8M/M35-1/CW6/CN7M
-
Size Range 1/2″” to 6″”
-
Pressure Ratings - Class 150, 300
-
Actuator Mounting- ISO 5211 Mounting
Applications
- MDI, TDI
- Fertilizer
- Ammonia
- Caustic
- Crude
- Oil Sands
- Mining
- AA
- Chlorine
- HCN
- Sulfuric Acid
- HF
- Coffee
