Features And Benefits
- Lower torque smaller actuators, reduced costs, space and weight saving.
- Compact design allows installation in space restricted areas in parallel piping systems.
- Actuator mounting fully compliant with ISO 5211 allowing use of standardized mounting kits.

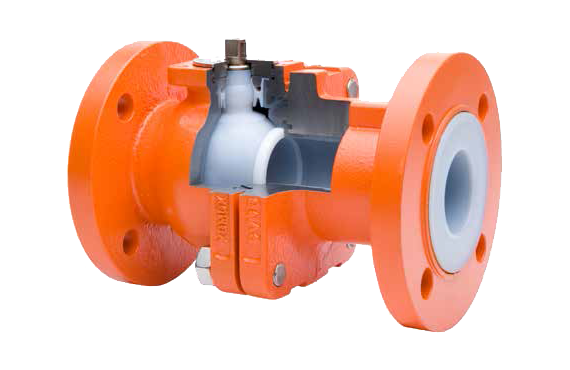

- The SX seal in the XLB valve moves in conjunction with the spherical portion of the stem, maintaining a constant seal.
- The body assembly has metal-to-metal connection that offers resistance against forces that may be created in the pipework.
Technical Details
-
Design Features - All wetted components are fully lined with permeation resistant PFA material as a barrier to corrosion.
-
Size Range ½“ / DN 15 through; 6“ / DN 150 Full Port; 1½” through 8″ Standard Port, Other sizes available up to 12“ / DN 300
-
Pressure Ratings - PN 16, Class 150
-
Temperature Range- ASME: -20°F (-29°C) to 400°F (204°C), EN: -10°C (14°F) to 204°C (400°F), Above data is for ductile iron lined valves, see pressure temperature ratings in our Technical Datasheet brochure for extended temperature capabilities with alternative materials
Applications
- Chlorine
- Benzene
- Bromine
- Sulfuric Acid
- Nitric Acid
- Hydrochloric Acid
- Phosphoric Acid
- Sea Water
