Features And Benefits

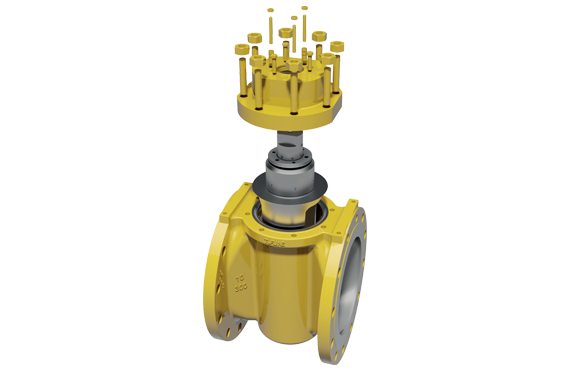

- Innovative stem seal, Live-Loaded design, permits best in class FUGITIVE EMISSIONS CONTROL (ISO 15848-1 BH CO3 392°F / 200°C SSA 0 & API 641)
- Maintenance and Cavity Free
- No costly lubrication, no sticking, and no contamination of process media
- Additional 4D Stem Packing ensures manual adjustment capabilities on the 4th sealing barrier to atmosphere
Technical Details
-
Design Features - Firesafe API 607 7th edition
-
Materials Of Construction - M35-1, Carbon Steel. HF Detection Paint
-
Size Range - 1/2″ to 12″
-
Pressure Ratings - Class 300
-
Temperature Range- -20°F up to 500°F / -100°C up to +260°C, depending on material selection
-

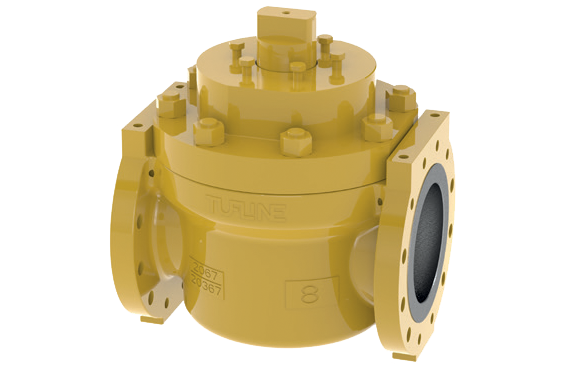

Body Configuration - Flanged End, Full Port
-
Options - Wide range of sleeve materials, Top work configurations, Actuation
Applications
Chemical
- Hydrofluoric Acid (HF) Alkylation
- HF Derivatives
