Features And Benefits

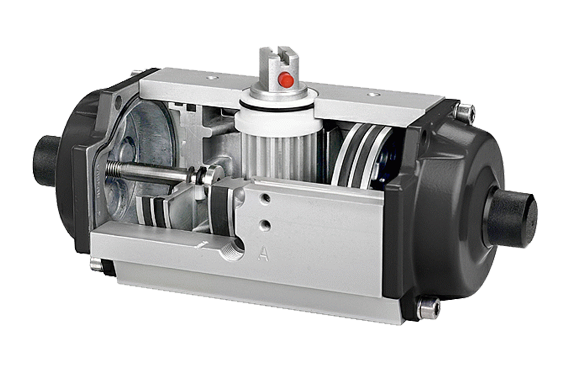

- Patented, pressure balanced shaft prevent axial forces acting on the bearings. This results in high reliability, long life and low wear.
- Robust anodized aluminum bodies ensure even expansion under thermal influences; no jamming of the piston and a high level of corrosion protection.
- Self lubricating piston guide bands prevent piston tilt under load, provide longer service life due to low friction, with no maintenance required.
- Compact design allows extensive direct mounting orientations.
Technical Details
-
Materials Of Construction - Body: Anodized, End Caps: Polyurethane coated RAL shades (60-80 µm), Shaft: Silver Anodized, Fasteners: Stainless Steel, Bearings: POM
-
Size Range - Double Acting: 66 in-lbs to 107531 in-lbs ( 8.1 Nm to 11752 Nm), Spring Return: 42 in-lbs to 103199 in-lbs (4.5 Nm to 11263 Nm)
-
Pressure Ratings - Double Acting 40 to 120PSI®g (2.0 to 8.0 bar), Spring Return 87 to 120 PSI®g (5.0 to 8.0 bar), with maximum spring set, Spring Return 43 to 120 PSI®g (2.5 to 8.0 bar), reduced spring quantity
-
Temperature Range - Low temperature option: -40F to 176 F (-40°C to 80°C), High temperature option: -20F to 248F (-20°C to 140°C)
Applications
- For sub-zero applications
