Features And Benefits
- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy In-line adjustability
- Easy to insulate
- No seizing. No sticking
- Integral extended bonnet for enhanced sealing
- Live-loaded packing
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Additional materials upon request
-
Size Range - 1/2″ to 16″
-
Pressure Ratings - Class 150 & 300, 600
-
Temperature Range- -20°F up to 600°F (ASME B16.34), depending on material selection
-
Body Configuration - Flanged End
-

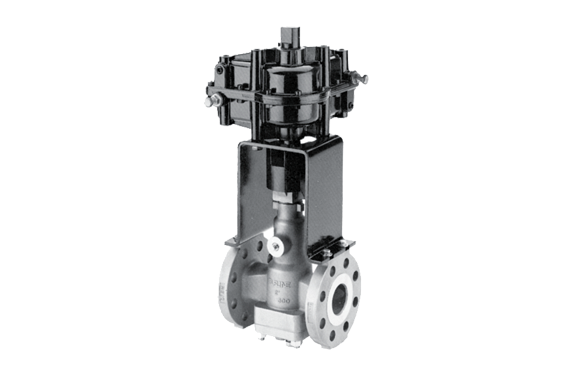

Options - Wide range of sleeve materials, Different top work configurations, Actuation options, Monitoring / Injection port, Lantern ring
Applications
Wide range of applications in:
- Chemicals (such as TDI/MDI)
- Chlor-Alkali
- Polymers
