Features And Benefits

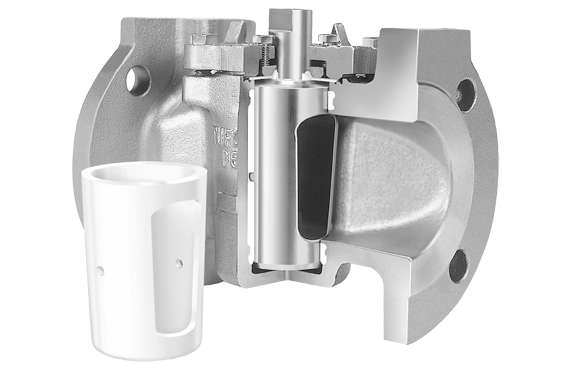

- Cavity free
- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy in-line adjustability
- No seizing. No sticking

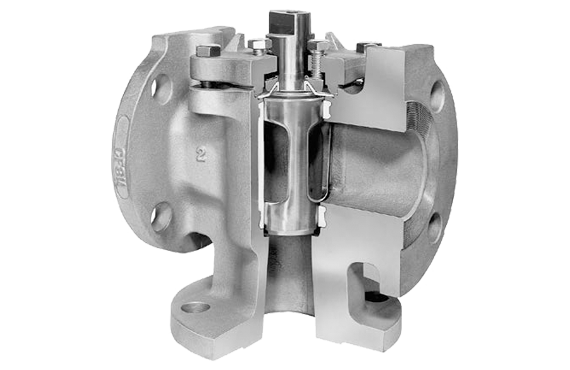

- Bottom and side entry options
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Additional materials upon request
-
Size Range 1/2″ to 12″ / DN15-DN300 – Depending on pressure class and port configuration
-
Pressure Ratings - Class 150 & 300 / PN 10-40
-
Temperature Range- -20°F up to 600°F (ASME B16.34) / -100°C up to +280°C depending on material selection
-
Body Configuration - Flanged End, Weld End, Screwed End, Full Port
-
Options - Wide range of sleeve materials, Fire-safe, Different top work configurations, Actuation options
Applications
Wide range of applications in:
- Chemicals
- Chlor-Alkali
- Polymers
- Fertilizers
- Pulp and Paper
- Slurries
- Food industry
- Refining
- Water
