Features And Benefits

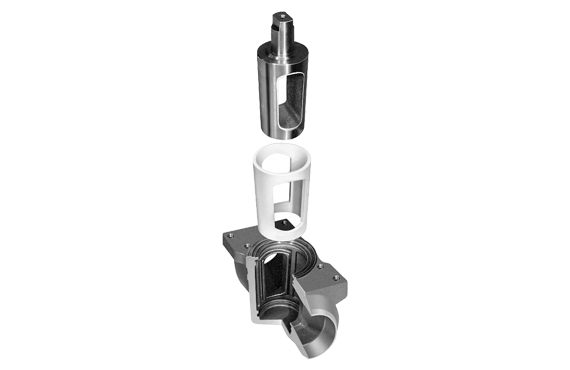

- 360° degree port lip design to ensure sleeve containment
- No cold-flow, deformation, or rotation of the sleeve
- Large shut-off area to assure long-lasting in-line sealing
- Easy in-line adjustability
- No seizing. No sticking
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Titanium, Zirconium, Additional materials upon request
-
Size Range 1/2″ to 20″ / DN15-DN500
-
Pressure Ratings - Class 150, 300 & 600/ PN 10-40 (PN100 upon request)
-
Temperature Range- -20°F up to 600°F (ASME B16.34) / -100°C up to +280°C depending on material selection
-

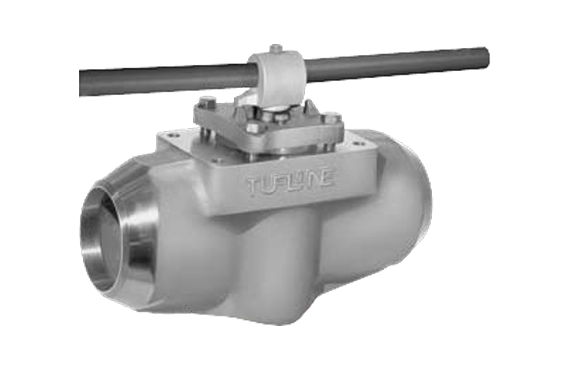

Body Configuration - Butt Weld, Socket Weld
-
Options - Wide range of sleeve materials, Firesafe, Different top work configurations, Actuation options
Applications
- Chemicals
- Chlor-Alkali
- Polymers
- Fertilizers
- Pulp and Paper
- Slurries
- Food industry
- Refining
- Water
Literature
Datasheet
XOMOX® Weld End Sleeved Plug Valves – DE
