Features And Benefits
- Innovative stem seal design permits best in class FUGITIVE EMISSIONS CONTROL (ISO 15848-1 BH CO3 392°F / 200°C SSA 0)
- Maintenance and Cavity free
- No costly lubrication, no sticking, and no contamination of process media
Technical Details
-
Materials Of Construction - Carbon Steel, Stainless Steel, Nickel Alloys, Additional materials upon request
-
Size Range - 1/2″ to 12″ / DN15 to DN300
-
Pressure Ratings - Class 150 & 300 / PN10-40
-
Temperature Range- -20°F up to 392°F / -100°C up to +200°C depending on material selection, Different packing combinations will support different temperatures
-
Body Configuration - Flanged End, Weld End, Full Port
-

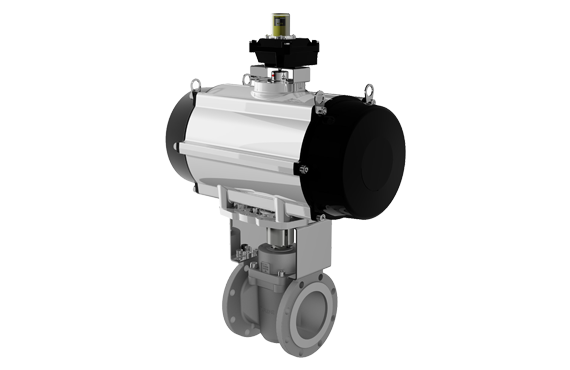

Options - Wide range of sleeve materials, Firesafe, Top work configurations, Actuation
Applications
Chemical
- Chlorine & Derivatives
- Caustic Soda & Derivatives
- Vinyl Chloride (VCM)
- TDI / MDI
- Ethylene Oxide & Ethylene Glycol
