Xtralis VESDA VHH-100 Hand Held LCD Programmer for VESDAnet (516-018-401)

Gulf Oil & Gas International supplies the genuine Xtralis VESDA VHH-100 (516-018-401) Hand Held LCD Programmer with lead for VESDAnet aspirating smoke detection systems to enable convenient configuration, commissioning, and maintenance in high-stakes environments like oil & gas facilities, data centers, and manufacturing plants. This portable programmer plugs directly into VESDAnet sockets on detectors or remote locations, providing single-point access to the entire network with a user-friendly menu-driven interface, backlit LCD screen, and support for multiple languages. The VHH-100 offers three password-protected access levels (User, Administrator, Distributor) with automatic logoff after 10 minutes of inactivity and up to 14 assigned users with individual 4-digit PINs. Key functions include alarm/fault simulation, wiring order display, communications fault location, device status reporting, zone allocation, flow normalization, alarm threshold setting (day/night/weekend), AutoLearn initiation, relay testing, and event log review. Easy handheld operation eliminates the need for permanent installation and restores full system access without downtime. The VHH-100 is designed for convenient on-site maintenance and service diagnostics of VESDA LaserPLUS, LaserCOMPACT, and VESDAnet systems.

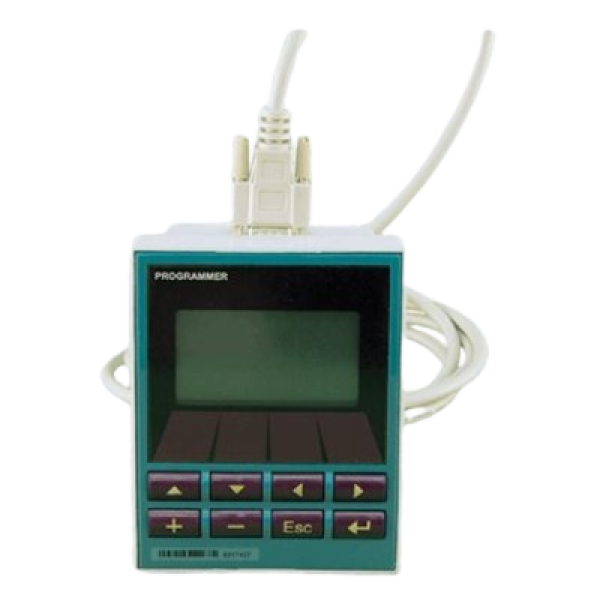

Vesda VHH-100 Hand Held Programmer Complete with Lead

Brand: Vesda Xtralis

Part Number: VHH-100

Categories: Ancillary (Aspirating Smoke Detection)

Vesda VHH-100 Hand Held Programmer Complete with Lead

The Programmer Module allows direct access to all VESDAnet devices on an VESDA smoke detection system. It allows configuration and status reporting of detectors, displays and interfaces and is required when installing, commissioning and maintaining a VESDA network. By incorporating a user friendly menu, navigation through the comprehensive features of VESDAnet is convenient and simple.

The programmer module is available as a hand-held device (with included DB15 serial cable) or can be mounted into a VESDA VLP or VESDA VLS detector, a remote mounting box or a 19 inch sub rack.

Description

The two rows of large push buttons enable the user to log ON and navigate through the menu trees to the various command and parameter setting functions. The top row of keys are called “Soft Keys” and are assigned programming options appropriate to the screen being viewed.

Some of the parameters that can be accessed via the programmer include device status reporting, zone number and name allocation, flow normalisation, alarm threshold setting (day, night, weekend), initiation of AutoLearn, wiring order, relay testing and event log review.

Up to 14 assigned Users or Administrators with an individual 4 digit Personal Identification Number (PIN), and one Distributor, can log onto a VESDAnet system under one of three levels of access which are password protected:

User (USR) is only able to view parameters, check status, alarms and reset the system.
Administrator (ADM) has access to most commands and programming parameters.
Distributor (DST) is the topmost level and has unlimited access to all commands and parameters in the system.
Lost PIN numbers can be overcome by obtaining a once only pass number from your Xtralis VESDA dealer.

The programmer automatically logs OFF when not in use for more than 10 minutes. The user is prompted with a beeping sound at 1 minute and at 15 seconds before log OFF. Any key may be pressed to cancel the automatic log OFF process.
