Xtralis vesda ASD Pipes and fittings

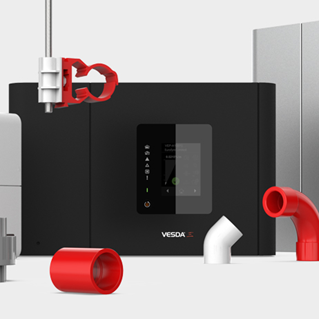

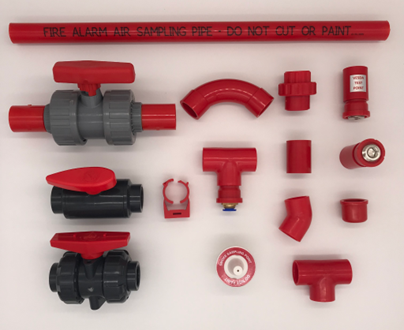

The effectiveness of smoke detection systems relies on a specialized network of piping that efficiently transports air samples from protected areas to highly sensitive detectors. An integrated CPVC Pipe & Fittings package is specifically designed for compatibility with VESDA Aspirating Smoke Detection Systems. VESDA piping systems are crafted from specialty thermoplastics, offering distinct advantages. These piping systems are lightweight and can be easily assembled on-site using affordable tools. The complete system encompasses all the necessary components for installation and testing. This includes pipes, a comprehensive selection of fittings, capillary tubes, various sample point configurations, and sampling point labels.
Pipe Dimensions
VESDA Pipe systems are produced in ¾” iron pipe size (IPS) pipe dimensions per ASTM F442. This provides piping with unique flow characteristics and exceptionally smooth interior walls, greatly enhancing system performance.
| Nominal Size | ¾” (20mm) |
| Average OD | 1.050” (26.7mm) |
| Average ID | 0.874” (22.5mm) |
| Pounds Per Feet | 0.168 |
Operating Temperature Range
VESDA Pipe and Fittings are suitable for a wide range of operating temperatures from 0ºF to 200ºF. Although tough and durable, care should be exercised in extremely cold environments to avoid unnecessary rough handling or other forms of mechanical damage.
| Flammability Rating | V-O | UL 94 Flame Retardant |
| Limiting Oxygen Index | 60 | ASTM D2863 |
| Flame Spread | 0 | ULC |
| Smoke Generation | 0-25 | ULC |
| Flame Travel | 4 | UL 1887 |
| Optical Density | 0.19 peak 0.03 Avg. | UL 1887 |
| Heat of Combustion | 7,700 BTU’s/lb. |
