Vesda Xtralis VIC-020 Multi-Fuctional Control Card VLF for VLF-250 & VLF-500
Brand: Vesda Xtralis
Part Number: VIC-020
Categories: Ancillary (Aspirating Smoke Detection)

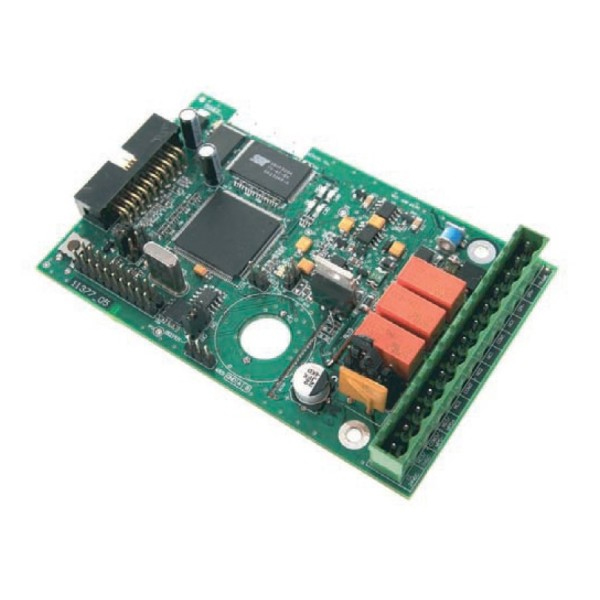

Vesda Xtralis VIC-020 Multi-Functional Control Card VLF for VLF-250 & VLF-500
The VESDA VLF MCC (Multi-function Control Card) is an interface card for the range of Xtralis VESDA VLF smoke detectors. An MCC expands the range of input and output communications a VLF detector can perform.
Why use a VLF MCC?
Installing a VLF MCC into a VLF detector provides a cost-effective solution for customers who need enhanced connectivity, fault detection and monitoring, and annunciation of alarms and faults. The principal benefits include:
- Description
Improved FACP connectivity: The VLF is fitted with two (2) alarm relays in its standard form. With an extra two (2) relays, the Multi-function Control Card allows reporting of all four (4) alarm levels on dry relay outputs.
Enhanced annunciation: An MPO (Monitored 24 V Powered Output) is available on the VIC-030 version of the card. The MPO provides power to devices such as sirens or strobes, and monitors the line integrity.
Enhanced control and fault detection: With a VLF MCC installed, a VLF has two (2) General Purpose Inputs (GPIs), allowing, for example, one GPI to report on loss of mains power and the other GPI to be used as a reset input. The VIC-030 version of the card has a self-configuring GPI, depending on the jumper selection for MPO/Relay3.
- If MPO is selected, activation of the GPI will disable the MPO.
- If Relay3 is selected, the GPI will be set to External Fault (e.g. for mains power supply monitoring).
- Key Features
- Provides two (2) additional relays
- Provides an extra General-Purpose Input (GPI) with line monitoring
- Quick and simple to install
- Out-of-the-box operation, with minimal configuration required for extra features
- Diagnostic LEDs give visual indication of the card’s status
- Fully compatible with Xtralis VESDA VLF smoke detector
