Flow Straighteners & Flow Conditioners
High-Precision Swirl Removal & Flow Profile Conditioning

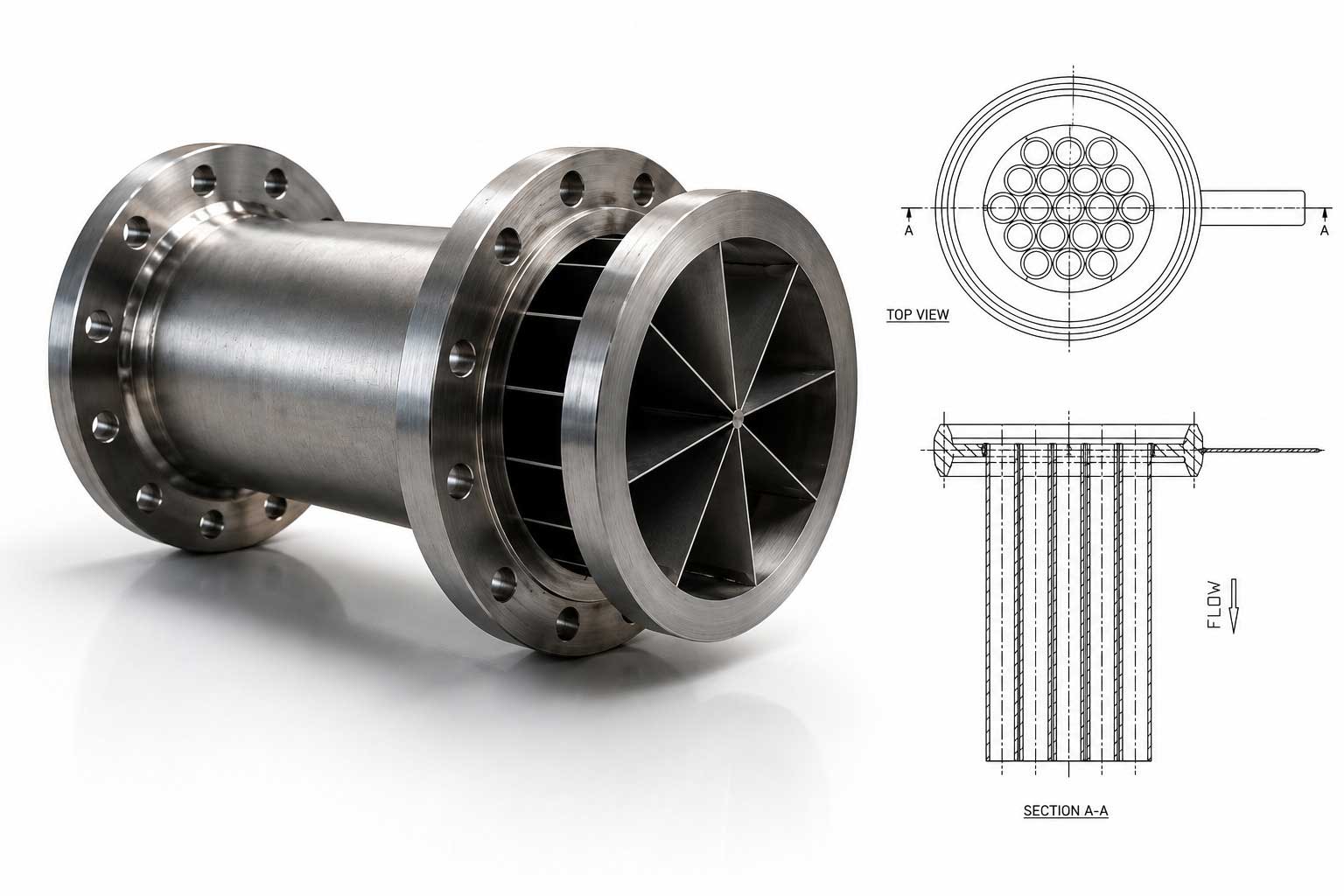

To use the most common differential pressure meters and primary flow elements—such as orifice plates, venturi tubes, nozzle meters, ultrasonic, and turbine meters—the fluid flow in the pipeline must be fully developed, symmetrical, and free from turbulence, swirl, or cross-currents. Flow Straighteners (also referred to as flow conditioners) are precision-engineered devices designed to remove fluid swirl, eliminate cross-flow velocity components, and restore an acceptable reference profile geometry in piping systems where installing sufficient upstream straight pipe length is physically impossible.
Depending on the upstream piping configuration (such as single/double elbows out of plane, reducers, headers, or throttling valves), the intensity of swirl and velocity distortion, and the allowable permanent pressure loss, several proven types of flow straighteners are available: ‘Zanker’, ‘Etoile’, ‘Sprenkle’, 19-Tube Bundle, AMCA, and AGA / ASME perforated plate types.
Gulf Oil & Gas International supplies and manufactures high-performance flow straighteners in any required metallurgical grade, nominal diameter, and schedule thickness to suit all global pipeline standards, accompanied by full material traceability (EN 10204 3.1 / 3.2).
Full Engineering & Custom Sizing Capabilities
At Gulf Oil & Gas International, we provide complete engineering design, computational fluid dynamics (CFD) validation, and custom sizing calculations in strict adherence to ISO 5167-1, AGA Report No. 3, and ASME MFC-3M standards. Whether your project requires high-performance Zanker plates to minimize straight run length in compact offshore skids, heavy-duty 19-tube bundles for custody transfer gas pipelines, or high-alloy perforated flow conditioners for severe sour service (H2S), our engineering specialists deliver complete turnkey solutions with comprehensive pressure drop and stress analysis reports.
Technical Specifications & Ordering Matrix
| Parameter | Engineering Standards, Types & Execution Options |
|---|---|
| Design Codes & Standards | ISO 5167-1, AGA Report No. 3 (API 14.3), ASME MFC-3M, AMCA 210, BS 1042, DIN 1952 |
| Flow Straightener Types |
Zanker: Perforated plate with cross vanes (High performance profile rectification) Tube-Bundle: 19-tube bundle, 7-tube bundle cylindrical assemblies Etoile (Star): Radial star-vane design for robust swirl elimination Sprenkle: Multi-plate series perforated flow conditioning assembly AMCA: Honeycomb cell matrix flow straightener AGA / ASME: Standardized multi-hole perforated plate conditioners |
| Mounting Configurations | Flanged wafer type (sandwich between ASME B16.5 / B16.47 flanges), Pin-fixed / welded inside meter run spool, Flanged spool piece unit |
| Nominal Sizes | 2" to 48" (DN50 to DN1200) and custom fabricated large-bore line sizes |
| Pressure Ratings | ASME Class 150# through 2500# | DIN / EN PN10 through PN420 | API 2000 to 10000 PSI |
| Material Grades |
Carbon & Low Temp Steel: ASTM A105N, ASTM A350 LF2, A516 Gr. 60/70 Stainless Steel: ASTM A182 / A240 Gr. 304, 304L, 316, 316L, 316Ti, 321 Duplex & Super Duplex: UNS S31803 / S32205 (2205), UNS S32750 / S32760 (2507) Nickel Alloys & Exotics: Inconel 625, Inconel 825, Hastelloy C276, Hastelloy C22, Monel 400, Titanium Gr. 2 |
| Testing & Quality Certification | EN 10204 3.1 / 3.2 Inspection Certificates, NACE MR0175 / ISO 15156 Compliance, Positive Material Identification (PMI), Dye Penetrant Testing (DPT), Hydrostatic Pressure Testing |
Engineering Profile Diagrams & Technical Schematics

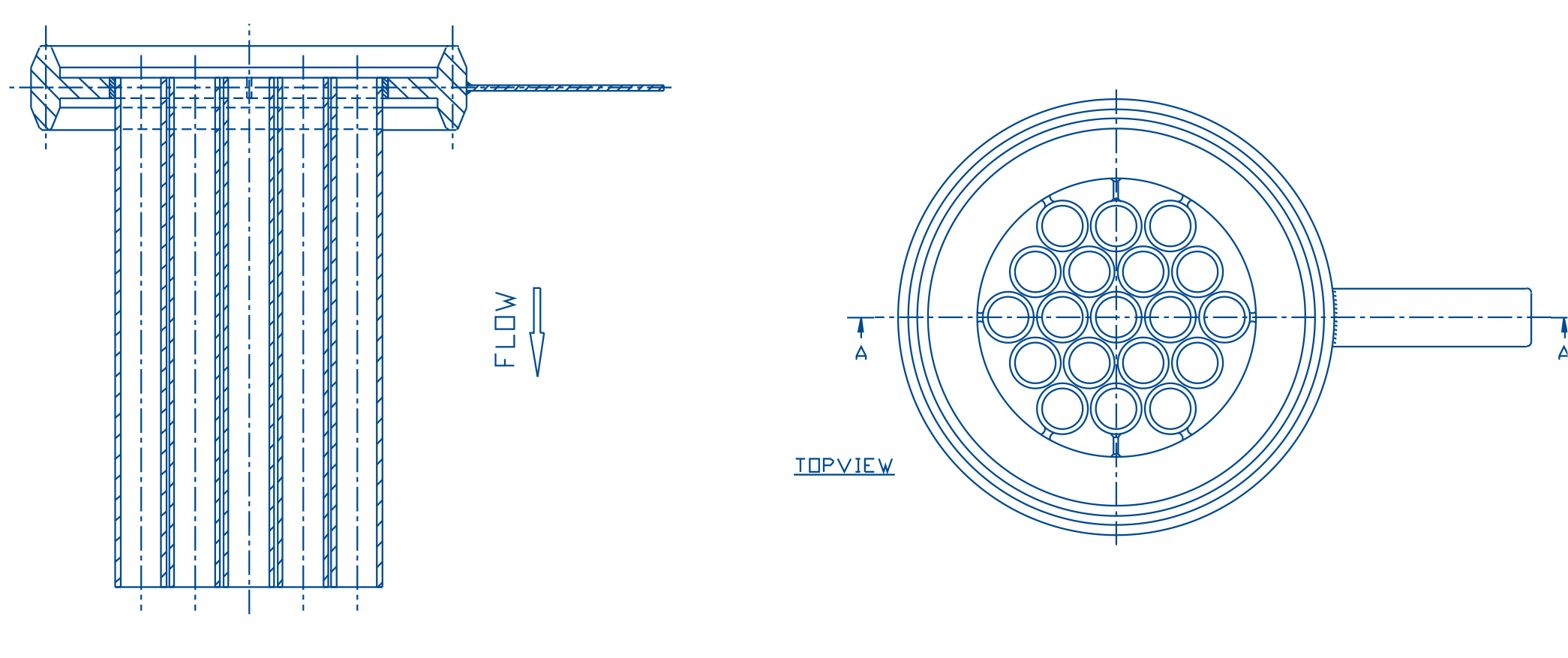

Drawing Technical Schematic: Detailed dimensional layout showing mean upstream diameter, throat bore diameter, pressure tappings, and overall length (L).
Target Industry Sectors & Critical Applications
Our flow straighteners and flow conditioning devices are engineered to resolve flow turbulence in critical fluid transportation and process infrastructure:
- Natural Gas Transmission & Fiscal Metering: Eliminating severe swirl from upstream multi-planar piping bends and headers before ultrasonic, turbine, and orifice metering.
- Refining & Petrochemical Complexes: Correcting distorted velocity profiles in hydrocarbon lines adjacent to control valves, pumps, and expansion fittings.
- Offshore & FPSO Modular Skids: Drastically reducing required upstream straight pipe lengths to minimize topside footprint and weight without sacrificing metering accuracy.
- Power Generation & High-Pressure Steam: Conditioning boiler feed steam and superheated header flows for accurate energy balance measurement.
- Water Transmission & Desalination: High-capacity flow straightening on pump suction/discharge lines and main distribution trunks.
Frequently Asked Questions (FAQ)
What is the primary function of a Flow Straightener in flow measurement piping?
A flow straightener removes fluid swirl, cross-flow velocities, and asymmetric velocity profile distortions upstream of primary flow measurement devices (such as orifice plates, venturis, ultrasonic, and turbine meters), restoring standard fully developed flow conditions in compact pipe spaces where adequate straight pipe lengths cannot be accommodated.
What types of Flow Straighteners and Conditioners are manufactured and supplied?
We supply all major flow straightener configurations including Zanker (plate and tube types), Tube-Bundle (19-tube and 7-tube assemblies), Etoile (star-vane straightener), AMCA honeycomb straighteners, Sprenkle multi-plate perforated designs, and AGA/ASME perforated plate flow conditioners.
How does installing a flow conditioner impact straight run pipe requirements?
Installing an approved flow conditioner or straightener significantly reduces the required upstream straight pipe length—often by up to 70%—while maintaining full measurement accuracy and compliance with ISO 5167 and AGA standards.
Which international engineering codes govern flow straightener design?
Our flow straighteners are engineered in strict compliance with ISO 5167-1, AGA Report No. 3 (API 14.3), ASME MFC-3M, and AMCA standards, ensuring total compliance with global custody transfer and process metering codes.
What materials are available for corrosive, cryogenic, and high-temperature service?
Flow straighteners can be precision-machined in Carbon Steel (A105N, LF2), Stainless Steel (304/304L, 316/316L, 316Ti, 321), Duplex (2205), Super Duplex (2507, UNS S32760), Inconel 625/825, Hastelloy C276/C22, Monel 400, and Titanium, fully certified to NACE MR0175/ISO 15156.
Can flow straighteners be supplied integrated directly inside calibrated Meter Runs?
Yes. We provide complete factory-assembled, pinned, or welded meter runs featuring pre-installed flow straighteners calibrated as a single continuous spool according to ISO 5167 specifications.
