Flow & Venturi Nozzles
High-Velocity Differential Flow Elements
Long Radius Flow Nozzles and ISA 1932 Flow Nozzles are manufactured from precision-forged solid bar and can be welded directly into the line or placed between two (orifice) flanges. In clamped flange executions, nozzles are supplied complete with matched spacer rings and high-integrity gaskets. Flow Nozzles can also be delivered as complete, factory-aligned pipe spools with flanged or butt-weld ends for seamless integration into high-pressure pipelines.
Venturi Nozzles are engineered in accordance with ISO 5167 and DIN 1952. To ensure maximum roundness, structural integrity, and smooth boundary-layer flow, Venturi Nozzles up to 12” are fully CNC-machined from single forged bars. For larger line sizes, an engineered combination of forged bar and rolled alloy plate is utilized. All welds are precision-machined flush with the internal pipe diameter to eliminate turbulence and flow separation.
All Flow and Venturi Nozzles are certified to international pressure equipment and quality standards, supported by EN 10204 3.1 or 3.2 material traceability test reports.
Full Engineering & Custom Sizing Capabilities
At Gulf Oil & Gas International, we provide Full Engineering design and supply 100% customized Flow Nozzles and Venturi Metering Assemblies tailored to your exact process application and operational conditions. From high-pressure superheated steam headers in power generation to erosive slurry, wet gas, and high-velocity hydrocarbons in severe sour service (NACE MR0175), our engineering team executes differential flow calculations, beta-ratio optimization, stress analysis, and turn-key spool fabrication.
Technical Specifications & Ordering Matrix
| Parameter | Engineering Standards & Configurations Available |
|---|---|
| Design Codes & Standards | ISO 5167, ASME MFC-3M, ASME PTC 6, DIN 1952, BS 1042, ASME B31.3 |
| Nozzle Types | Long Radius Flow Nozzle (High Beta / Low Beta), ISA 1932 Nozzle, Venturi Nozzle, Throat Tap Flow Nozzle |
| Mounting & Installation | Weld-in (Butt Weld), Flange-retained with spacer ring, Orifice Flange Assembly, Complete Metering Pipe Spool |
| Nominal Sizes & Ratings | Sizes from 2” to 48”+ (DN50 - DN1200) | Pressure Classes: ANSI 150# thru 2500# | DIN PN10 thru PN400 |
| Pressure Tappings | Throat tappings, 1D & 1/2D (Radius) tappings, Corner tappings, Flange tappings (1/2" NPT standard) |
| Pipe & Forged Materials |
Carbon & LT Steel: A105N, A350-LF2, A106 Gr. B, A333 Gr. 6, C21 Chrome-Moly Alloy Steel: A182-F5, F11, F22, F91, A335 Gr. P5, P11, P22, P91 Stainless Steel: A182/A312 TP304(L), TP316(L), TP316Ti, TP321(H) Duplex & Super Duplex: A182-F51, 1.4462, UNS S32760, UNS S32750 High Nickel & Exotic Alloys: Monel 400, Hastelloy C22, C276, Inconel 625/825, Alloy 20, Titanium Gr. 2 |
| Testing & Compliance | EN 10204 3.1 / 3.2 Material Certification, NACE MR0175 / ISO 15156, Hydrostatic Testing, Ultrasonic & Radiographic NDT, Positive Material Identification (PMI), Flow Calibration (on request) |
Engineering Profile Diagrams & Technical Schematics

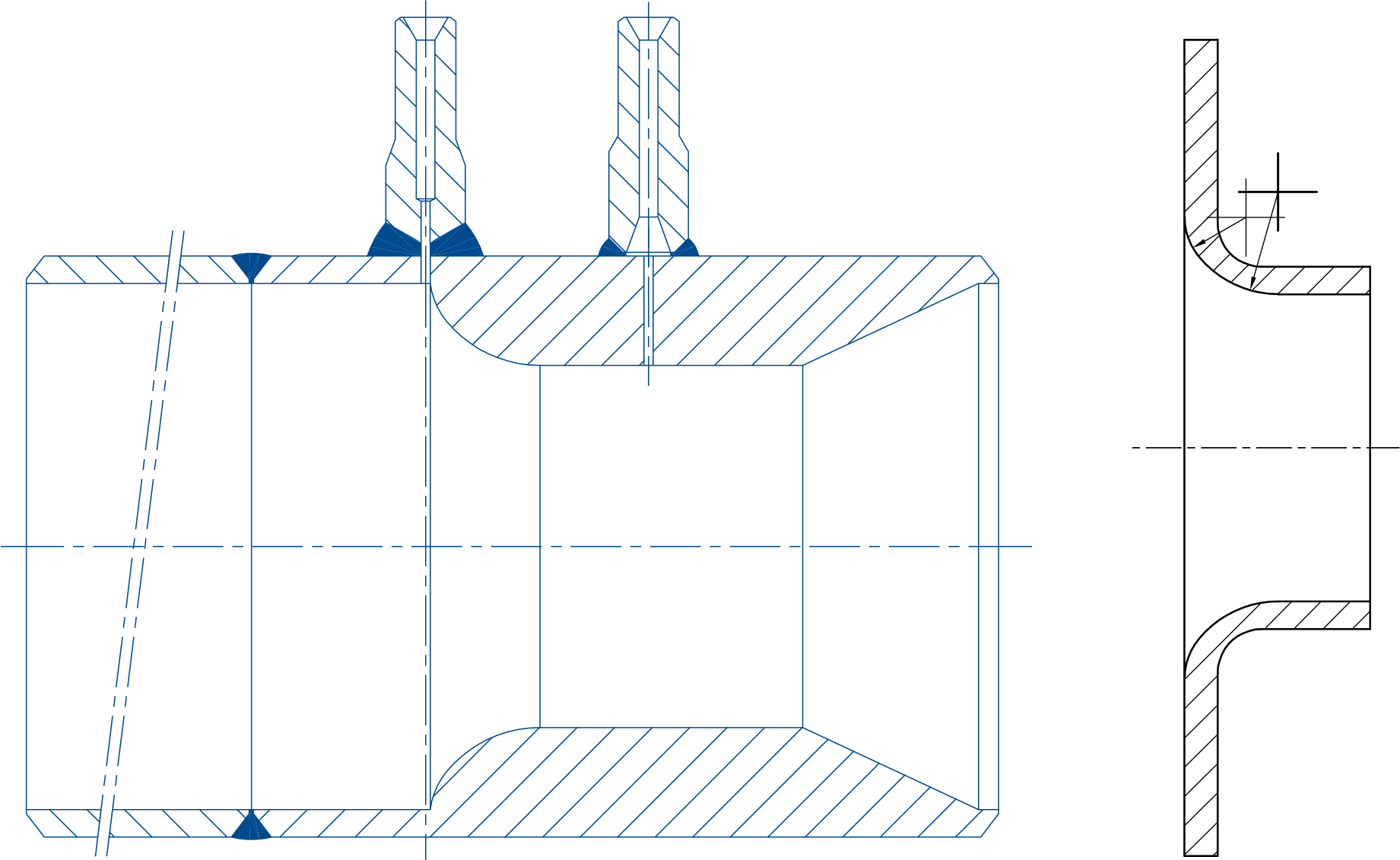

Drawing Technical Schematic: Detailed dimensional layout showing mean upstream diameter, throat bore diameter, pressure tappings, and overall length (L).
Target Industry Sectors & Applications
Our flow nozzles and venturi nozzles are specifically designed for severe, high-velocity, and abrasive service applications across critical energy and industrial sectors:
- Thermal & Nuclear Power Plants: Superheated steam lines, boiler feed water loops, turbine performance acceptance testing (ASME PTC 6), and condenser circulating loops.
- Upstream & Midstream Oil & Gas: High-velocity wet gas measurement, multiphase flows, erosive sour gas headers, and flare lines.
- Refining & Petrochemical Processing: Catalytic cracker process streams, steam-methane reformers, ethylene plants, and high-temperature synthesis gas loops.
- Heavy Industrial & Desalination: High-pressure steam distribution, main seawater discharge metering, and district heating/cooling systems.
Frequently Asked Questions
When should a Flow Nozzle or Venturi Nozzle be used instead of an Orifice Plate?
Flow Nozzles and Venturi Nozzles are preferred in high-velocity, high-temperature, and erosive fluid applications (such as supercritical steam and wet gas) where standard sharp-edged orifice plates might degrade, erode, or suffer excessive permanent pressure loss.
What are the primary differences between Long Radius, ISA 1932, and Venturi Nozzles?
Long Radius Nozzles follow ASME/ISO geometry optimized for high-velocity steam lines; ISA 1932 Nozzles feature a rounded inlet profile suited for standard flange mounting; Venturi Nozzles incorporate a diverging recovery cone designed per ISO 5167/DIN 1952 for significantly higher permanent pressure recovery.
What installation styles are available for Flow Nozzle assemblies?
We supply Flow Nozzles designed for weld-in installation directly into piping, clamping between standard or orifice flanges with spacer rings and gaskets, or fully assembled and tested flanged/butt-weld pipe spools.
Which high-temperature and corrosion-resistant alloys are available?
We manufacture nozzles in Chrome-Moly steels (A182-F11, F22, F91), Austenitic Stainless (304L, 316L, 316Ti, 321), Duplex and Super Duplex (F51, UNS S32760), Monel 400, Hastelloy (C22, C276), Alloy 20, and Titanium with full EN 10204 3.1/3.2 certification.
